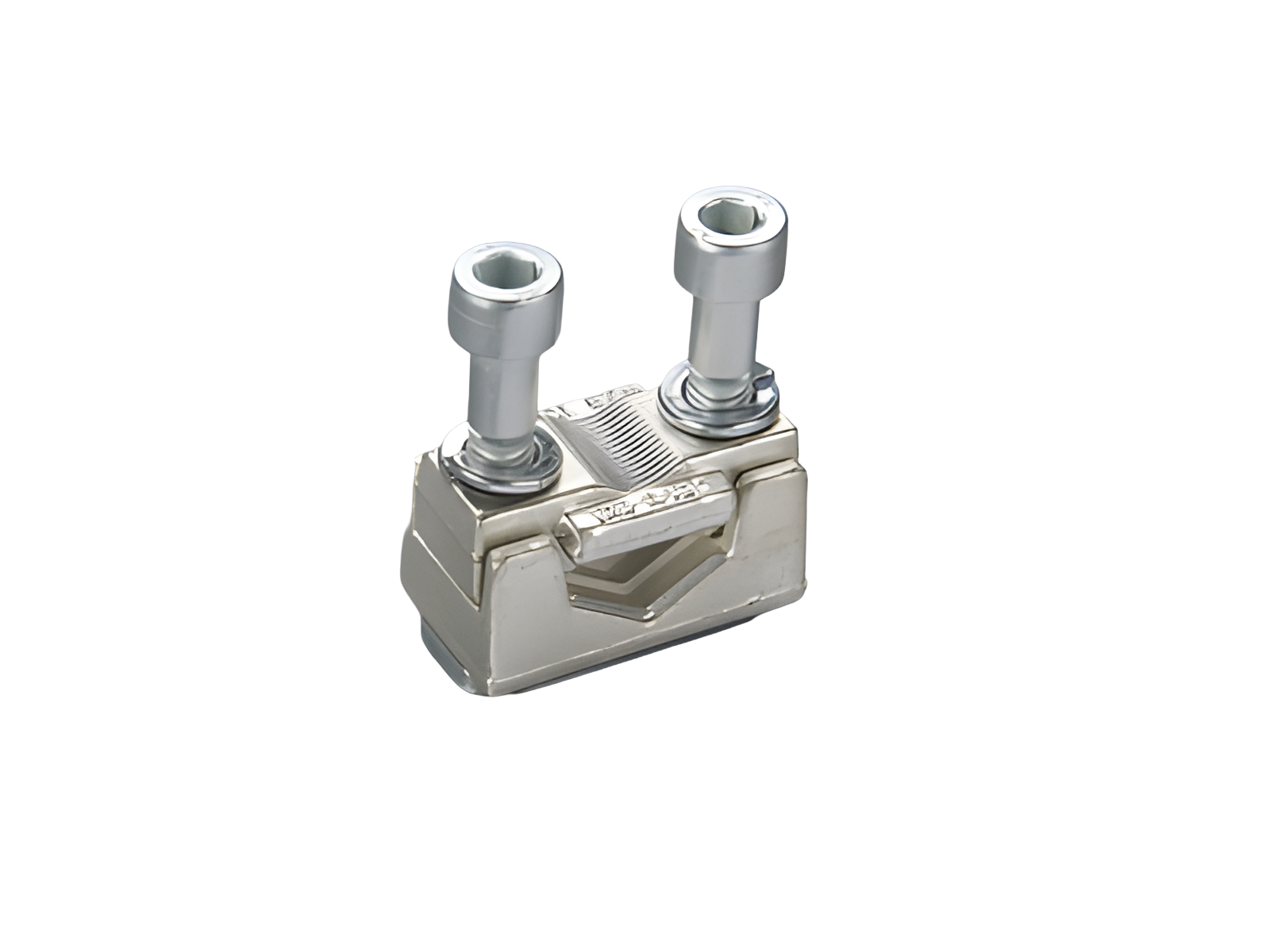

prism terminal, single, for Cu and Al cables (33167)

The picture may show a similar product.

Description

Part No.: 33167000

prism terminal, single, for Cu and Al cables

50 - 240 mm²

System

60Classic

Product group	09
Subgroup	51

pack size	1
EAN	4021267331672

ECLASS 6.1	27142190
ECLASS 7.1	27142190
ETIM 4.0	EC002498
ETIM 5.0	EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only

Mechanical data
weight:	19.9 kg/100

Terminal points
screw drive:	S5
wire stripping:	27 mm
min. cross-section:	50 mm²
max. cross-section:	240 mm²
rm:	50 - 240 mm²
f:	50 - 240 mm²
f + AE:	50 - 240 mm²
(f + AE may not fit with max. cross-section)
sm:	50 - 240 mm²
Md min.:	4.8 Nm
Md max.:	9.6 Nm
Suitable for aluminium cables. When using aluminium cables, observe the maintenance instructions.

Application notes

Suitable for aluminium cables. When using aluminium cables, observe the maintenance instructions.

short-circuit withstandability:	determined by main product

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

03289000
QUADRON^®Panel
NH fuse-base 250 A, panel mounting, for PV
incoming connection screw M10, outgoing connection to busbar 2x 30 x 10
size 1XL / 1P, with touch protection
stock sale
More

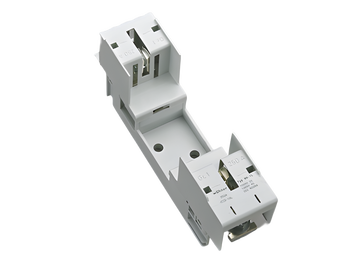

03290000
QUADRON^®Panel
NH fuse-base 250 A, panel mounting, for PV
both sides screw M10
size 1XL / 1P, with touch protection
More

33331000
QUADRON^®Panel
NH fuse switch-discon. size 2, 400 A, panel mounting
screw M10
with electronic fuse monitoring
More

33150000
QUADRON^®Panel
NH fuse switch-discon. size 2, 400 A, panel mounting
screw M10
with electromechanical fuse monitoring
More

33202000
QUADRON^®Panel
NH fuse switch-discon. size 2, 400 A, panel mounting
screw M10
More

33161000
QUADRON^®60Classic
NH fuse switch-disconnector size 2, 400 A
screw M10
with electromechanical fuse monitoring
connection top or bottom
for busbars: 12, 20, 30 x 10 and section busbars
More

33602000
QUADRON^®60Classic
NH fuse switch-disconnector size 2, 400 A
screw M10
connection top or bottom
for busbars: 12, 20, 30 x 10 and section busbars
More

33326000
QUADRON^®60Classic
NH fuse switch-disconnector size 2, 400 A
screw M10
with electronic fuse monitoring
connection top or bottom
for busbars: 12, 20, 30 x 10 and section busbars
More
