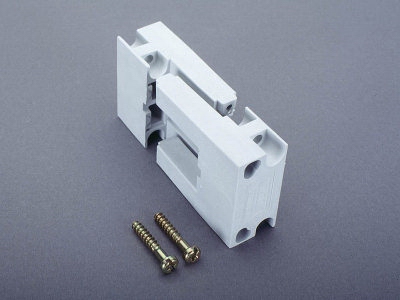

The picture may show a similar product.
Part No.: 01876 000
busbar support
1-pole, indiv. mountable only
for double T profile
for busbars double-T section
no longer available; Follower: 01116
System
60Classic
Advantages of the product
Suitable for the construction of a PE or N busbar.
Suitable as centre support, with internal screw holes.
| Product group | 06 |
| Subgroup | 03 |
| pack size | 10 |
| EAN | 4021267018764 |
| ECLASS 6.1 | 27400607 |
| ECLASS 7.1 | 27400607 |
| ETIM 4.0 | EC001166 |
| ETIM 5.0 | EC001166 |
Standards
IEC 61439-1:2020
UL 508
Approvals
UL
for UL feeder circuits >250V
type number: S876-L
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 1000 V |
| rated surge voltage Uimp : | 6 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) DC: | 1500 V |
| UL : SCCR = 14 kA (Schienenträger im Abstand von 400 mm) |
| Details UL | |
| Standards | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| Mechanical data | |
| W x H x D: | 60 x 30 x 104 |
| weight: | 15.8 kg/100 |
| poles: | 1-pole |
| for busbars: | double-T section |
| The insulation performance of the article depends on the installation conditions. | |
|
Torque for the screws of the busbar support Md = 4Nm |
|
| for UL feeder circuits >250V |
