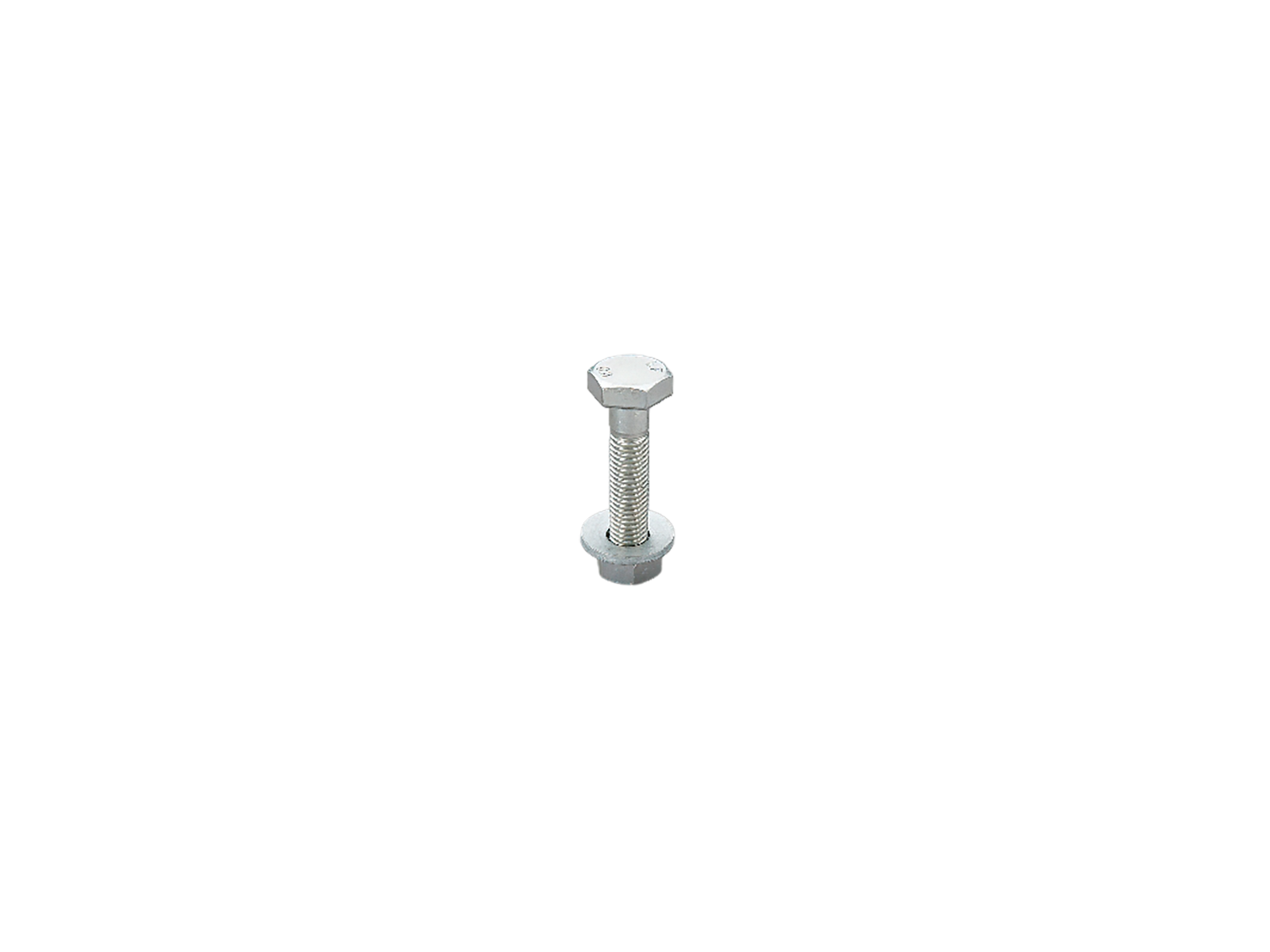

The picture may show a similar product.
Part No.: 01380 000AC
bolt for TCC-profile
M12 x 60
not for subsequent mounting, with nut and spring washer
for busbars TCC section
System
centre feed unit
| Product group | 07 |
| Subgroup | 29 |
| pack size | 12 |
| EAN | 4021267013806 |
| ECLASS 14.0 | 27371392 |
| ETIM 5.0 | EC002498 |
| ETIM 8.0 | EC002498 |
| ETIM 10.0 | EC002498 |
Standards
IEC 61439-1:2020
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Mechanical data | |
| weight: | 9.1 kg/100 |
| for busbars: | TCC section |
| Terminal points | |
| screw connection | |
| M12 | |
| Not suitable for aluminium cables ! | |
| Terminal space: | M12 x 60 |
| Material properties | |
| halogen-free: | Yes |
| Not suitable for aluminium cables ! | |
|
Tightening torque 35 Nm |
|
