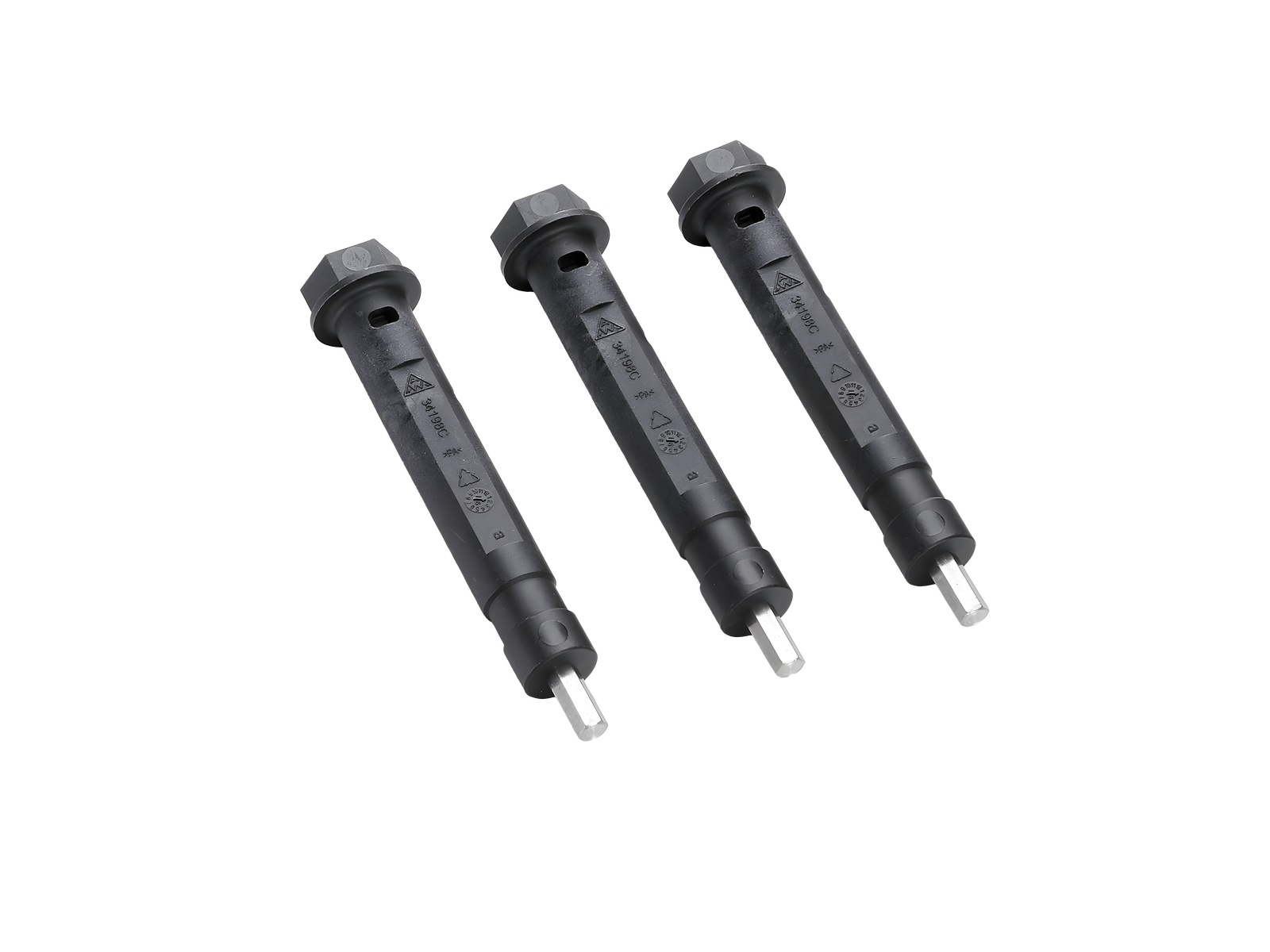

insulated screw extension for terminal clamp

The picture may show a similar product.

Description

Part No.: 33652 000A

insulated screw extension for terminal clamp

for safe live working with standard tools

size 1 - 3

Product group 18
Subgroup 70
pack size 3
EAN 4021267336523
ECLASS 14.0 27371392
ETIM 5.0 EC002498
ETIM 8.0 EC002498
ETIM 10.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

EAC Type: AC-A

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Mechanical data
weight: 5.8 kg/100
Material properties
halogen-free: Yes

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

Usage
