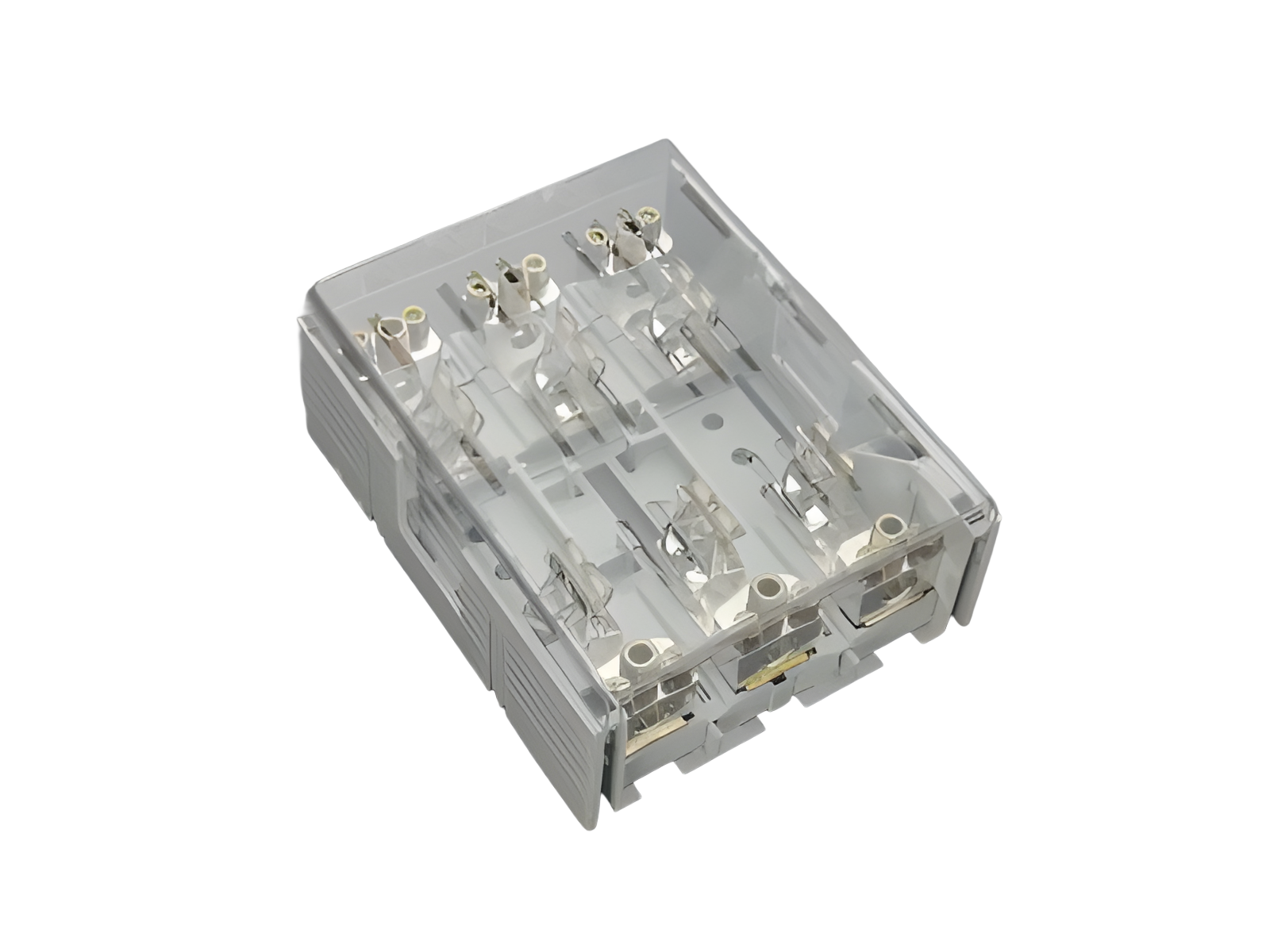

holder for cylindrical fuses

The picture may show a similar product.

Description

Part No.: 33307 000

QUADRON Panel

holder for cylindrical fuses

Class J / 3P, terminal 150 mm²

200 A / 600 V (41x146)

for mounting plate

Follower: 33409000

System

Panel

Product group 16
Subgroup 12
pack size 1
EAN 4021267333072
ECLASS 14.0 27142190
ETIM 5.0 EC002705
ETIM 8.0 EC002705
ETIM 10.0 EC002705

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system H

UL 4248-8

UL 4248-1

Approvals

CSA , UL

for UL feeder circuits >250V

type number: JC200

EAC Type: AJC

UL file: E230163, UL category (for USA): IZLT https://www.ul.com

UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com

CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org

Technical data

for fuse links size: Class J 200 A
fuse links acc. to standard: UL 248-8
permitted power dissipation of the fuse-link: 22 W
Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system H

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 4.7 W.

(The power dissipation at full load would be 7.4 W.)

Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.
min. permitted operation temperature -40°C
for Class J fuses 110 - 200A as per UL 248-8 (41x146)
Details UL
Standards
UL 4248-8
UL 4248-1
for UL feeder circuits >250V
suitable for field-installed conductors
Electrical data UL
rated current (UL): 200 A
rated voltage (UL) AC: 600 V
rated frequency (UL): 50 / 60 Hz
rated voltage (UL) DC: 600 V
for wires UL: Cu 75°C
SCCR: 200 kA
Mechanical data
W x H x D: 210 x 255 x 117
weight: 405.0 kg/100
poles: 3-pole
Mounting: for mounting plate
Terminal points
Buchsenklemme
screw drive: S8
wire stripping: 30 mm
Md min.: 16.0 Nm
Md max.: 16.0 Nm
Not suitable for aluminium cables !

min. cross-section UL: AWG 8
max. cross-section UL: MCM 300
torque (UL): 142 lb-in
for wires UL: Cu 75°C
Material properties
halogen-free: Yes

Application notes

Not suitable for aluminium cables !

Shock protection through push-on covers.
permitted power dissipation of the fuse-link: 22 W
for UL feeder circuits >250V

Links (Prices, CAD data)

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD data WSCAD

Downloads

| General technical information

| Mounting instructions

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessories

fuse links

03219 000A
fuse link 125 A
-Mersen-
600 V AC, fast acting
Class J, 41x146

More

03220 000A
fuse link 150 A
-Mersen-
600 V AC, fast acting
Class J, 41x146

More

03221 000
fuse link 175 A
-Mersen-
600 V AC, fast acting
Class J, 41x146

More

03222 000
fuse link 200 A
-Mersen-
600 V AC, fast acting
Class J, 41x146

More

03233 000
fuse link 125 A
-Mersen-
600 V AC, time delay
Class J, 41x146

More

03234 000
fuse link 150 A
-Mersen-
600 V AC, time delay
Class J, 41x146

More

03235 000
fuse link 175 A
-Mersen-
600 V AC, time delay
Class J, 41x146

More

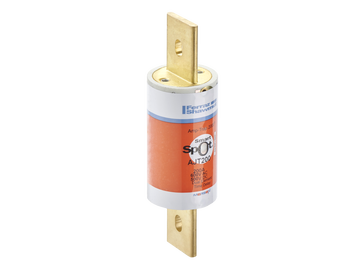

03236 000
fuse link 200 A
-Mersen-
600 V AC, time delay
Class J, 41x146

More
