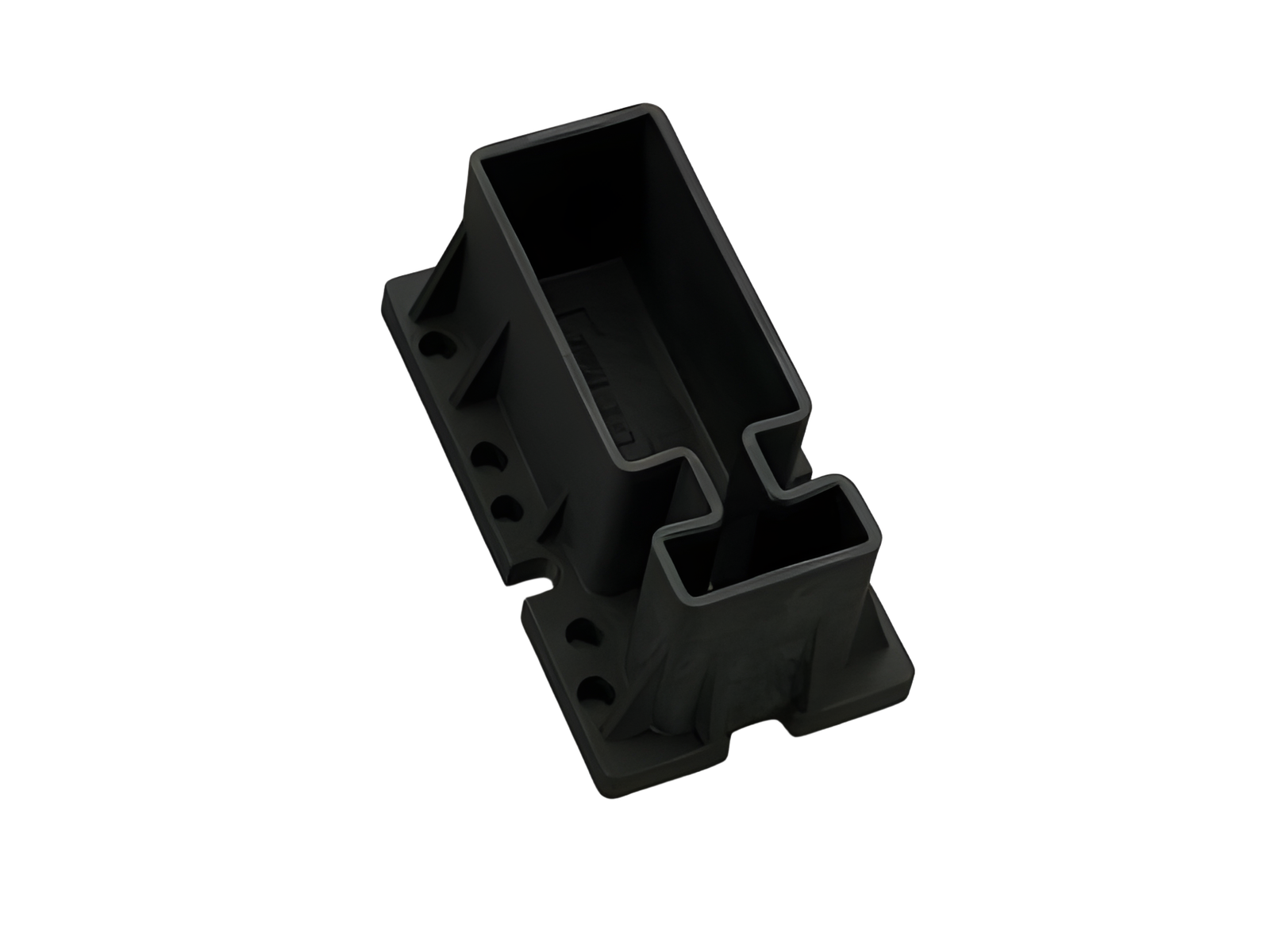

The picture may show a similar product.
Part No.: 01369 000
busbar support 1-pole, lateral
for section busbars
System
centre feed unit
| Product group | 06 |
| Subgroup | 03 |
| pack size | 6 |
| EAN | 4021267013691 |
| ECLASS 6.1 | 27400607 |
| ECLASS 7.1 | 27400607 |
| ETIM 4.0 | EC001166 |
| ETIM 5.0 | EC001166 |
Standards
IEC 61439-1:2020
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 1000 V |
| rated surge voltage Uimp : | 8 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) DC: | 1500 V |
| 7.5mm insulation between busbar and fixing plate |
| Mechanical data | |
| W x H x D: | 109 x 60 x 50 |
| weight: | 11.0 kg/100 |
| The insulation performance of the article depends on the installation conditions. | |
|
Tightening torque of the fastening screws of the busbar support 4Nm - 5Nm |
|
