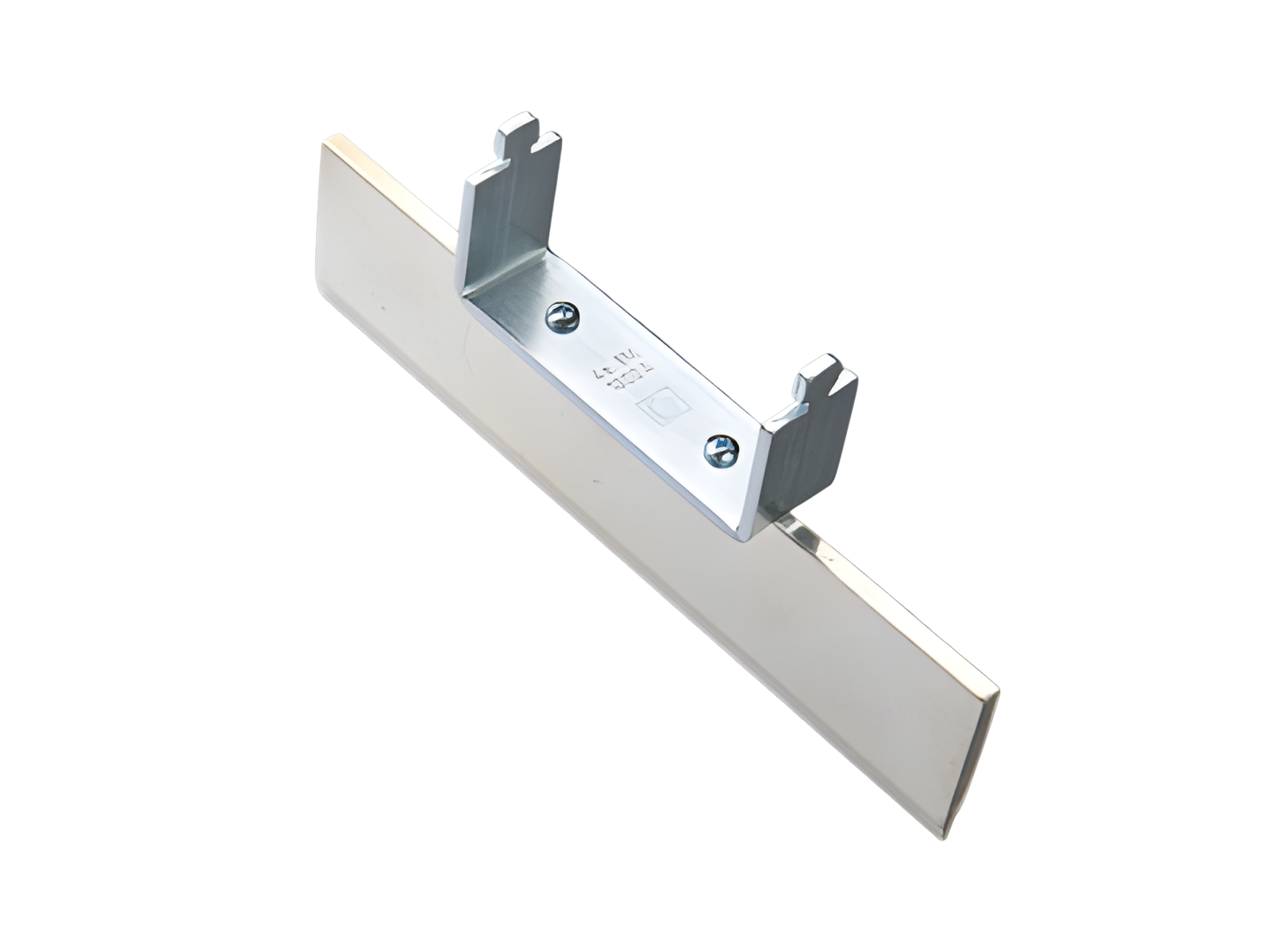

knife link 1600 A (03185)

The picture may show a similar product.

Description

Part No.: 03185 000

knife link 1600 A

size 4a

Product group 22
Subgroup 16
pack size 3
EAN 4021267031855
ECLASS 6.1 27142105
ECLASS 7.1 27142105
ETIM 4.0 EC000026
ETIM 5.0 EC000026

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016

Technical data

size: NH 4a
Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016
Electrical data IEC
rated current (IEC): 1600 A
Mechanical data
weight: 85.0 kg/100

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)
