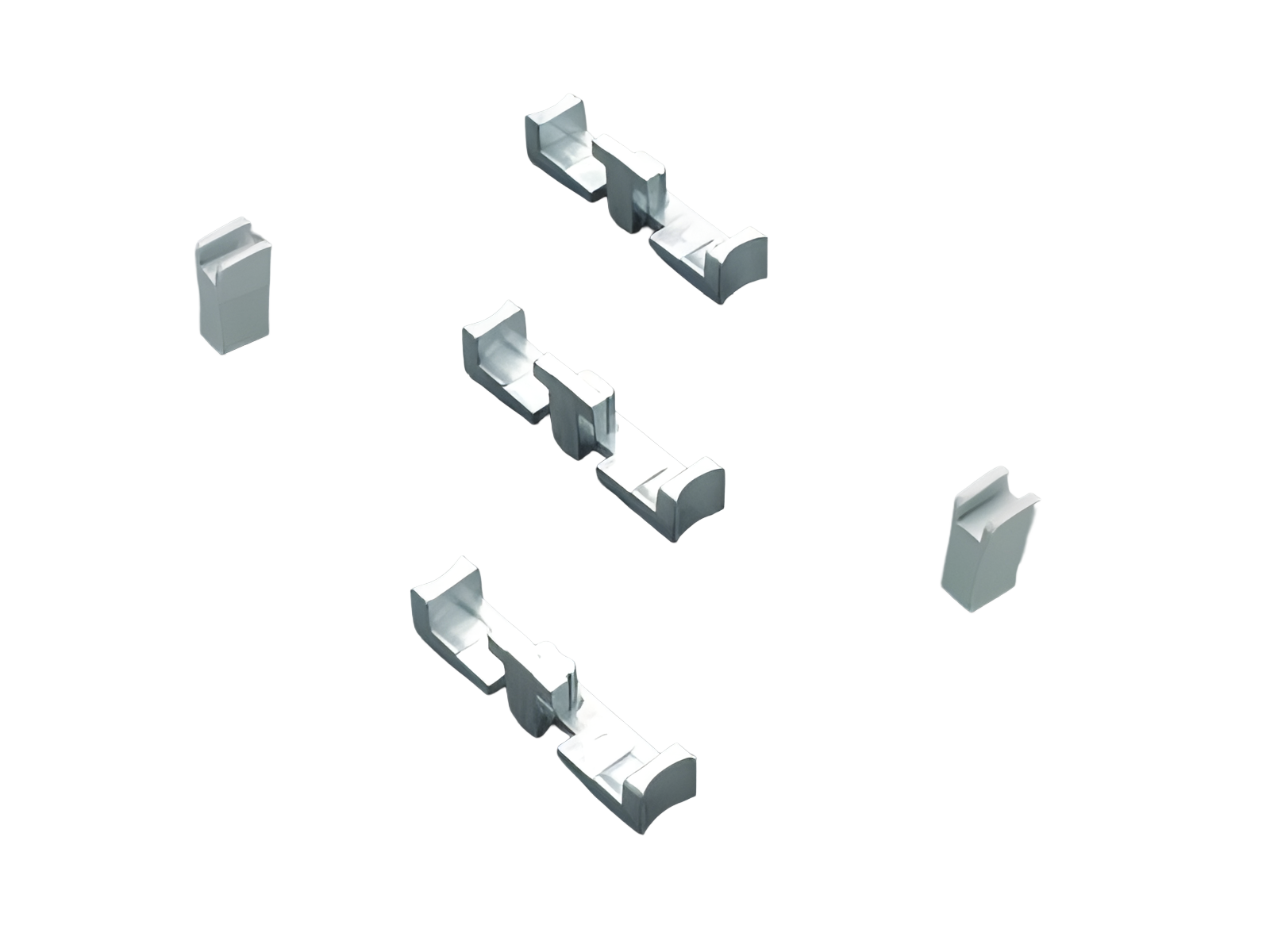

conversion kit (33148)

The picture may show a similar product.

Description

Part No.: 33148000

conversion kit

for 5 mm busbars

size 2

System

60Classic

Product group 09
Subgroup 51
pack size 1
EAN 4021267331481
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
weight: 6.5 kg/100

Application notes

short-circuit withstandability: determined by main product

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

33054000AC
QUADRON®60Classic
NH fuse switch-disconnector size 2, 400 A, busbar mounted, connection bottom
screw M10, bottom connection
for busbars: 12 - 30 x 5 - 12 and section busbars
NEW
More

33049000AC
QUADRON®60Classic
NH fuse switch-disconnector size 2, 400 A, busbar mounted, connection top
screw M10, top connection
for busbars: 12 - 30 x 5 - 12 and section busbars
NEW
More

33003000AC
QUADRON®60Classic
NH fuse switch-disconnector size 2, 400 A, busbar mounted, connection top
screw M10
for busbars: 12 - 30 x 5 - 12 and section busbars
More

33004000AC
QUADRON®60Classic
NH fuse switch-disconnector size 2, 400 A, busbar mounted, connection bottom
screw M10
for busbars: 12 - 30 x 5 - 12 and section busbars
More

33161000
QUADRON®60Classic
NH fuse switch-disconnector size 2, 400 A
screw M10
with electromechanical fuse monitoring
connection top or bottom
for busbars: 12, 20, 30 x 10  and section busbars
More

33326000
QUADRON®60Classic
NH fuse switch-disconnector size 2, 400 A
screw M10
with electronic fuse monitoring
connection top or bottom
for busbars: 12, 20, 30 x 10  and section busbars
More

33602000
QUADRON®60Classic
NH fuse switch-disconnector size 2, 400 A
screw M10
connection top or bottom
for busbars: 12, 20, 30 x 10  and section busbars
More
