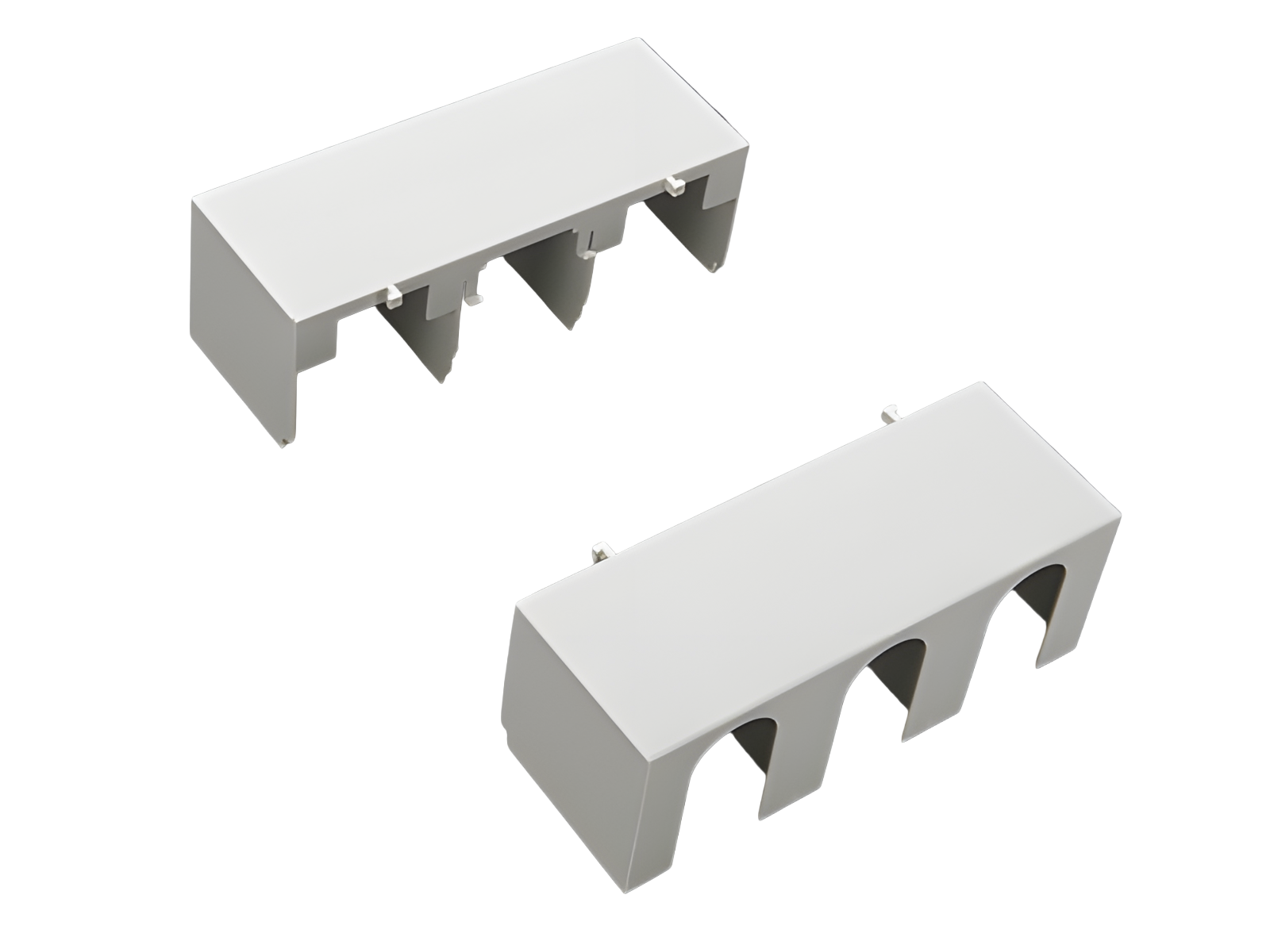

cover for cable lugs, top / bottom attachable (33142)

The picture may show a similar product.

Description

Part No.: 33142000

cover for cable lugs, top / bottom attachable

for QCB-NH1, QCS-NH1, QCS-320

System

60Classic

Product group	09
Subgroup	51

pack size	2
EAN	4021267331429

ECLASS 6.1	27142190
ECLASS 7.1	27142190
ETIM 4.0	EC002498
ETIM 5.0	EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only

Mechanical data
W x H x D:	183 x 65 x 68
weight:	10.7 kg/100

Application notes


short-circuit withstandability:	not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

33552000
QUADRON^®Panel Speed
switch-disconnector 3-pole
screw M10
320 A
More

33515000
QUADRON^®Panel Speed
switch disconnector with fuses, 3-pole
screw M10, for door coupling rotary handle
size 1
double-breaking
More

03301000
QUADRON^®60Classic
NH fuse base 250 A
screw M10
size 1 / 3P
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33512000
QUADRON^®Panel Speed
switch disconnector with fuses, 3-pole
screw M10
size 1
double-breaking
More

03300000
QUADRON^®60Classic
NH fuse base 250 A
box terminal
size 1 / 3P
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33514000
QUADRON^®60Classic Speed
switch disconnector with fuses, 3-pole
screw M10, connection top, for door coupling rotary handle
size 1
double-breaking
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33393000
QUADRON^®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
box terminal
More

33553000
QUADRON^®60Classic Speed
switch-disconnector 3-pole
screw M10, connection bottom, for door coupling rotary handle
320 A
double-breaking
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33554000
QUADRON^®60Classic Speed
switch-disconnector 3-pole
screw M10, connection top, for door coupling rotary handle
320 A
double-breaking
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33513000
QUADRON^®60Classic Speed
switch disconnector with fuses, 3-pole
screw M10, connection bottom, for door coupling rotary handle
size 1
double-breaking
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

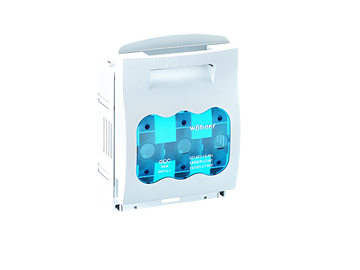

33409000
QUADRON^®Panel
holder for cylindrical fuses
Class J / 3P, terminal 150 mm²
200 A / 600 V (41x146)
More

33551000
QUADRON^®60Classic Speed
switch-disconnector 3-pole
screw M10, connection top
320 A
double-breaking
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33516000
QUADRON^®60Classic Speed
switch disconnector with fuses, 3-pole
screw M10, connection bottom, with electronic fuse monitoring
size 1
double-breaking
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33511000
QUADRON^®60Classic Speed
switch disconnector with fuses, 3-pole
screw M10, connection top
size 1
double-breaking
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33550000
QUADRON^®60Classic Speed
switch-disconnector 3-pole
screw M10, connection bottom
320 A
double-breaking
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33149000
QUADRON^®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
screw M10
with electromechanical fuse monitoring
More

33330000
QUADRON^®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
screw M10
with electronic fuse monitoring
More

33201000
QUADRON^®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
screw M10
More

33510000
QUADRON^®60Classic Speed
switch disconnector with fuses, 3-pole
screw M10, connection bottom
size 1
double-breaking
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33600000
QUADRON^®60Classic
NH fuse switch-disconnector size 1, 250 A
box terminal
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33160000
QUADRON^®60Classic
NH fuse switch-disconnector size 1, 250 A
screw M10
with electromechanical fuse monitoring
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33403000
QUADRON^®60Classic
busbar mounted fuse holder Class J
for fuse links Class J 110 - 200 A (41x146)
3P, with box terminal
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33325000
QUADRON^®60Classic
NH fuse switch-disconnector size 1, 250 A
screw M10
with electronic fuse monitoring
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33601000
QUADRON^®60Classic
NH fuse switch-disconnector size 1, 250 A
screw M10
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

https://pim.woehner.de/EN/CN/1000047286

Find your contact

to the contact site

Wöhner GmbH & Co. KG
Elektrotechnische Systeme
Mönchrödener Str. 10
96472 Rödental

Order hotline (Germany)
+49 9563 751 161
order@woehner.de

Technical hotline (Germany)
+49 9563 751 260
support@woehner.com
