Part No.: 33328000
QUADRON®Panel

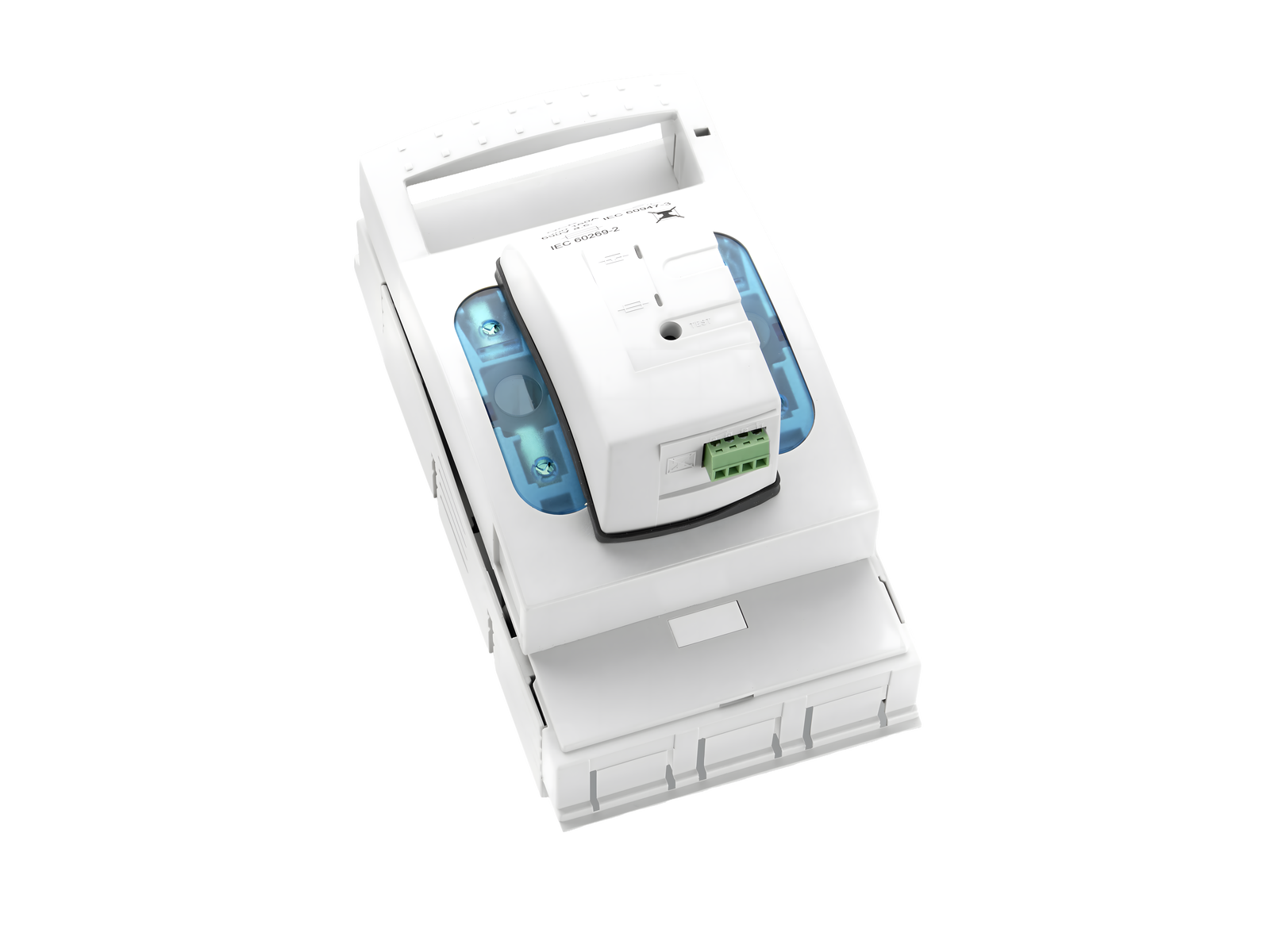

NH fuse switch-disconnector size 00, 160 A, panel mounting
clamp 70 mm²
with electronic fuse monitoring
for mounting plate
System
Panel
Advantages of the product
self-closing inspection holes are available in the cover, shock protection split into 2 for safe connection
Product group | 09 |
Subgroup | 04 |
pack size | 1 |
EAN | 4021267333287 |
ECLASS 6.1 | 27142108 |
ECLASS 7.1 | 27142108 |
ETIM 4.0 | EC001040 |
ETIM 5.0 | EC001040 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
UL 4248-1
Approvals
IEC (CB) , UL , CCC
for UL feeder circuits >250V
type number: LTS-00
for fuse links size: | NH 000, NH 00 |
fuse links acc. to standard: | IEC / HD 60269-2 |
live grip lugs required: | Yes |
permitted power dissipation of the fuse-link: | 12 W |
requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
Details IEC | |
Standards | |
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
Electrical data IEC | |
Rated current (IEC): | 160 A |
rated voltage (IEC) AC: | 690 V |
rated voltage (IEC) DC: | 250 V |
rated isolation voltage Ui AC: | 690 V |
rated isolation voltage Ui DC: | 250 V |
rated surge voltage Uimp : | 6 kV |
Utilisation category AC (IEC 60947-3) : | AC-23B (400 V), AC-22B (500 V), AC-21B (500 V |
cond. short-circuit current with fuses (AC): | 50 kA / 690 V |
approved wth fuse links of operation class: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 4.5 W.
(The power dissipation at full load would be 7.0 W.)
Supplementary data IEC | |
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
max. permitted voltage (IEC) AC: | 725 V |
max. permitted voltage (IEC) DC: | 262 V |
A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
for fuse links IEC 60269-2-1 (I) / DIN VDE 0636-201 size 00 up to 12W power dissipation, with grip lugs under voltage | |
Special operating conditions corresponding to IEC / EN 61439-1 may yield to foulty activations of pilot switches and fuse monitors. The operating conditions have to be considered for the analysis of status signals. | |
Entsprechend den angegeben AC- und DC- Schalteigenschaften und unter Berücksichtigung der Überlastbedingungen, sind gewisse Abstände zu geerdeten Metallteilen einzuhalten. Nähere Informationen auf Anfrage. Bei Verwendung als Trennschalter ist die Einhaltung der Abstände nicht erforderlich. |
|
Schutzart IP30 frontseitig, im Anschlussbereich vom Einbau abhängig Elektronische Sicherungsüberwachung: - Zur Erkennung von Sicherungsausfällen mit Bemessungsspannung AC 100V bis AC 690V - Keine Hilfsenergie erforderlich; Versorgung über Netzspannung - Hilfskontakte potentialfrei - LED- Blinkmelder (rot/grün) - Testtaster - Weitere Informationen unter Downloads / Datenblatt |
Details UL | |
Standards | |
UL 4248-1 |
for UL feeder circuits >250V |
Electrical data UL | |
rated current (UL): | 160 A |
rated voltage (UL) AC: | 600 V |
rated frequency (UL): | 50 / 60 Hz |
SCCR: | 100 kA |
Mechanical data | |
W x H x D: | 106 x 176 x 123 |
weight: | 93.0 kg/100 |
poles: | 3-pole |
Mounting: | for mounting plate |
front degree of protection: | IP30 |
Terminal points | |
Md min.: | 2.4 Nm |
Md max.: | 3.6 Nm |
Not suitable for aluminium cables ! | |
clamp-type terminals : |
Not suitable for aluminium cables ! | |
A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
live grip lugs required: | Yes |
permitted power dissipation of the fuse-link: | 12 W |
requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
for UL feeder circuits >250V |
