single cover for terminals (01300)

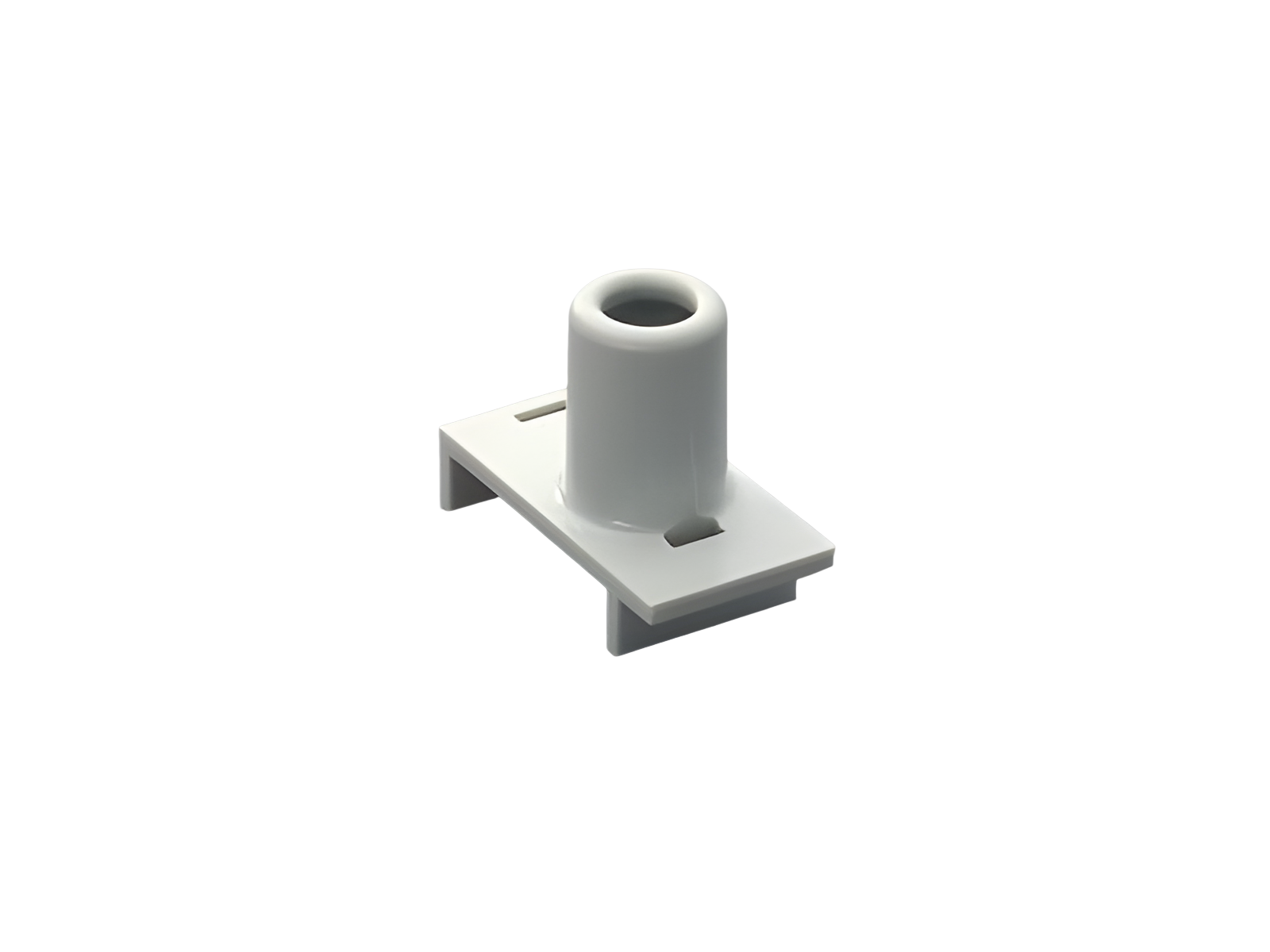

The picture may show a similar product.

Description

Part No.: 01300000

single cover for terminals

for terminal plate 01240

System

60Classic

Product group 07
Subgroup 39
pack size 3
EAN 4021267013004
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC002498
ETIM 5.0 EC002848

Approvals

Standards

IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003

UL 508

Approvals

CSA , UL , DNV GL

for UL feeder circuits >250V

type number: 240

UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com

CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003
Details UL
Standards
UL 508
for UL feeder circuits >250V
Mechanical data
weight: 0.4 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit
for UL feeder circuits >250V

Links

Downloads

Usage

01569000A
CRITO®60Classic
Connection terminal plate, 3 pole
6 - 50 mm², AWG 10 - 2/0, lam. Cu. 7 - 9 x 4 - 10
cover can be removed with tool only
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

01240000
CRITO®60Classic
Connection terminal plate, 3 pole
6 - 50 mm², AWG 10 - 2/0, lam. Cu. 7 - 9 x 4 - 10
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More
