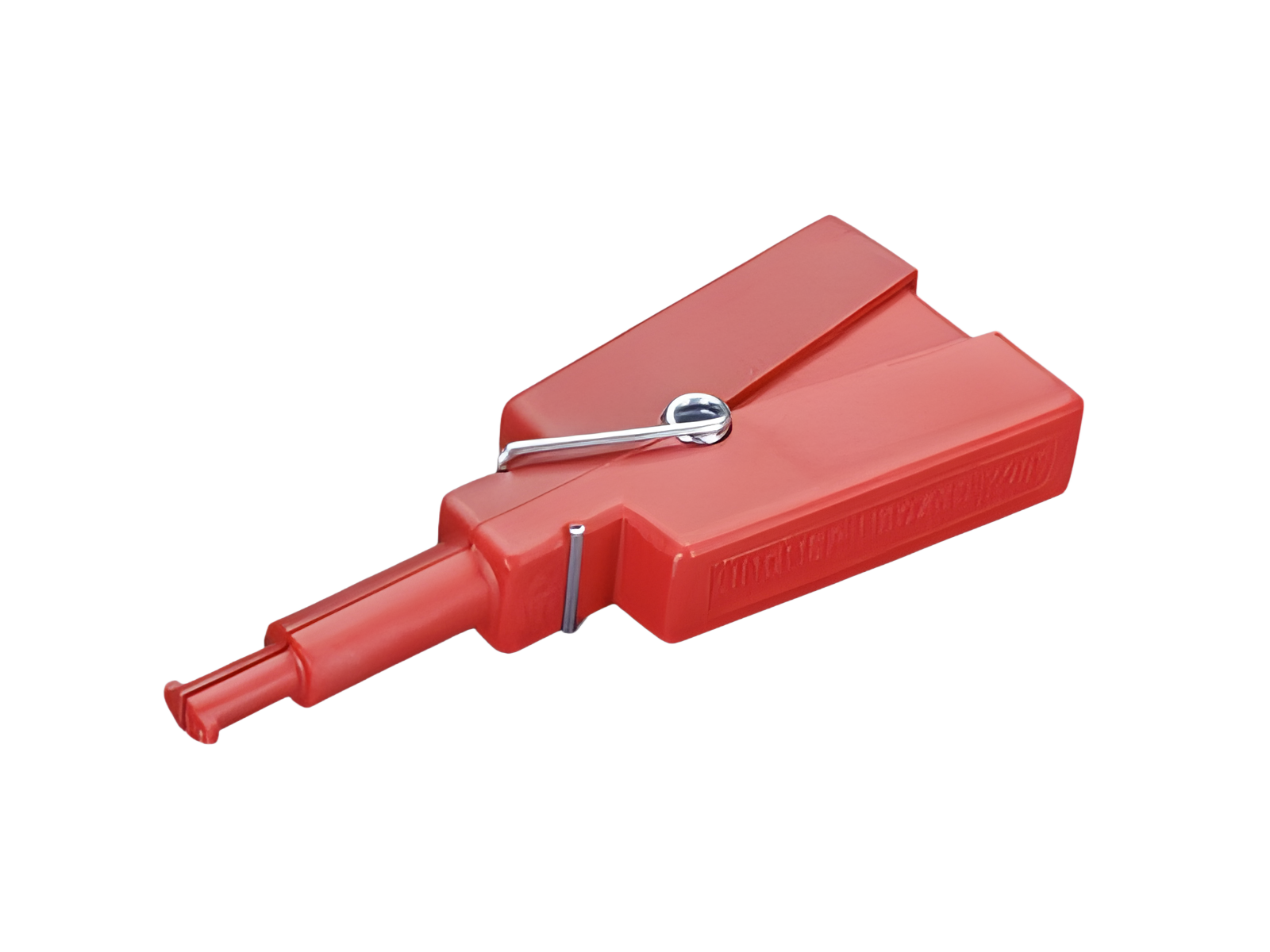

gauge ring tool (01730)

The picture may show a similar product.

Description

Part No.: 01730000

gauge ring tool

D01 - D03

Product group 22
Subgroup 03
pack size 1
EAN 4021267017309
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002936
ETIM 5.0 EC002936

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019

Technical data

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019
Mechanical data
weight: 2.8 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

01718000

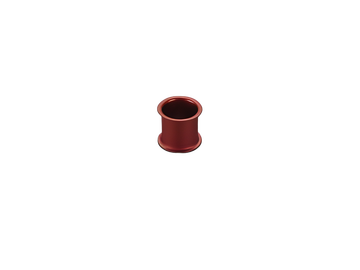

D01 gauge ring 10 A
red
E 14
More

01726000

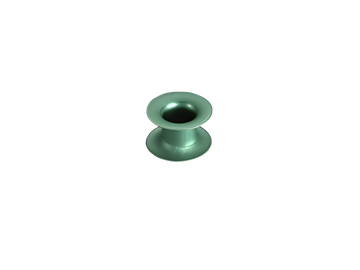

special D01 gauge ring 6 A
green
E 18
More

01725000

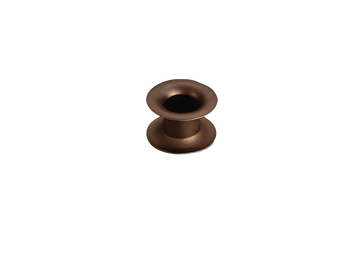

special D01 gauge ring 4 A
brown
E 18
More

01724000

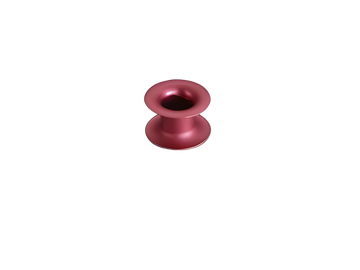

special D01 gauge ring 2 A
pink
E 18
More

01717000

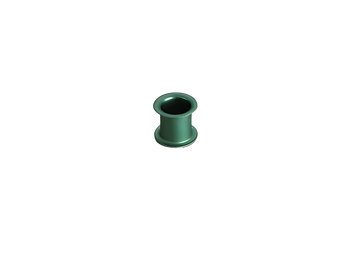

D01 gauge ring 6 A
green
E 14
More

01728000
special D01 gauge ring 16 A
grey
E 18
More

01727000

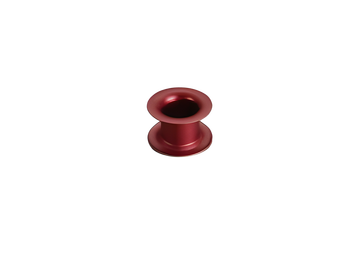

special D01 gauge ring 10 A
red
E 18
More

01722000
D02 gauge ring 50 A
white
E 18
More

01720000
D02 gauge ring 25 A
yellow
E 18
More

01719000
D02 gauge ring 20 A
blue
E 18
More

01716000
D01 gauge ring 4 A
brown
E 14
More

01715000

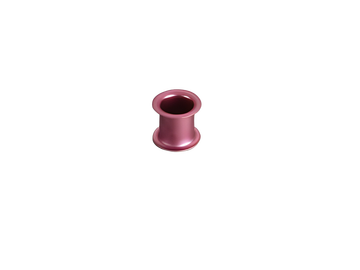

D01 gauge ring 2 A
pink
E 14
More

01721000
D02 gauge ring 35 A / 40 A
black
E 18
More
