for UL feeder circuits >250V
The picture may show a similar product.
Part No.: 01013000A

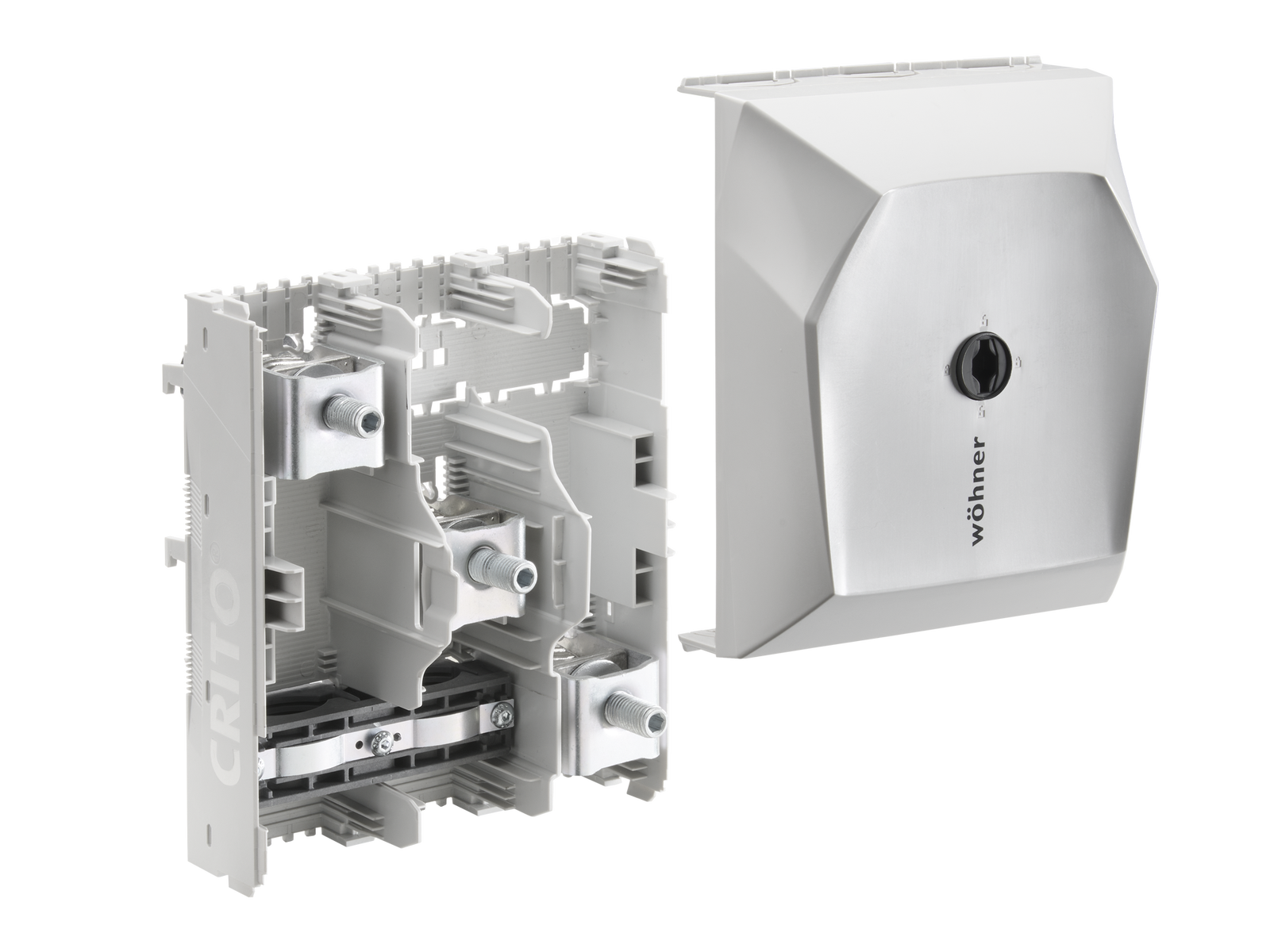

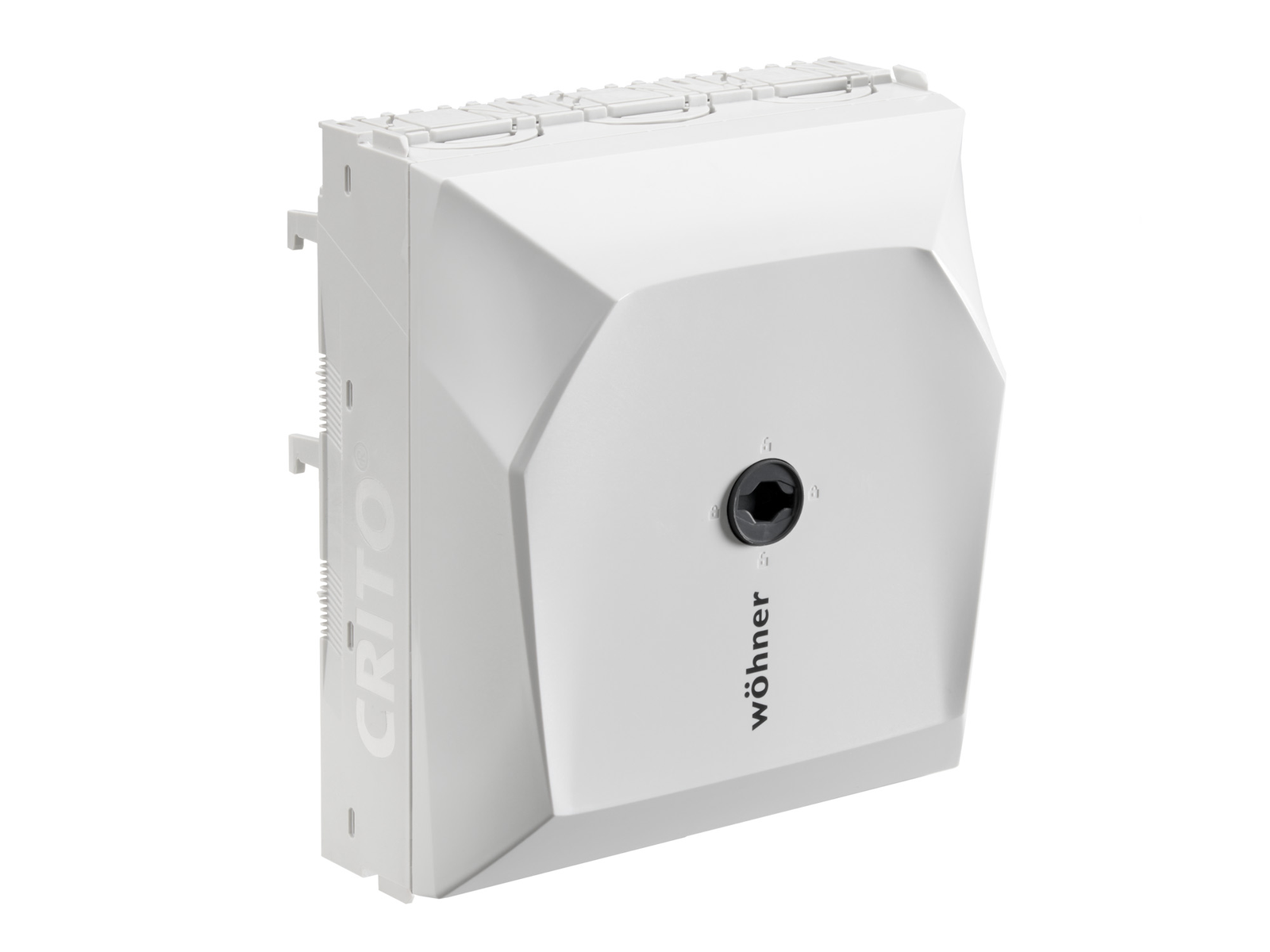

CRITO®CrossBoard

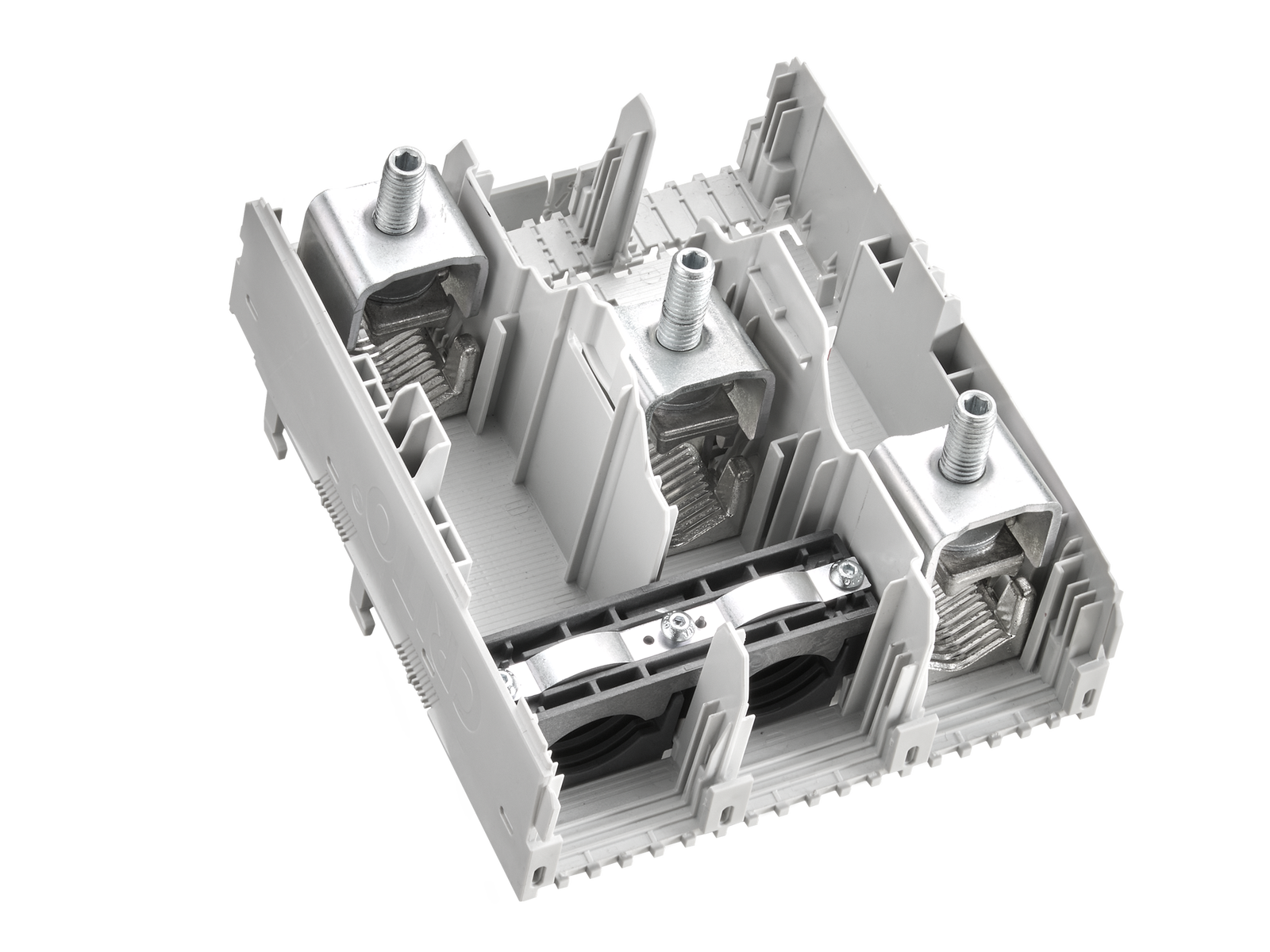

connection terminal plate, 3-pole
95 - 300 mm²
coming soon
System
CrossBoard® 800 A
Advantages of the product
Terminals with captive clamping screws
Conductor can be overlapped
Indication of nominal cross-section and tightening torque noted on the terminals.
| Product group | 07 |
| Subgroup | 51 |
| pack size | 1 |
| EAN | 4021267010133 |
| ECLASS 6.1 | 27141146 |
| ECLASS 7.1 | 27141146 |
| ETIM 4.0 | EC000001 |
| ETIM 5.0 | EC000001 |
Standards
IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003
CCC approval: no certification required
| Details IEC | |
| Standards | |
|
IEC 61439-1:2020 IEC 60999-1:1999 IEC 60999-2:2003 |
| Electrical data IEC | |
| rated current (IEC): | 630 A |
| rated voltage (IEC) AC: | 690 V |
| rated peak withstand current Ipk max.: | 80 kA |
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) AC: | 1000 V |
| max. permitted voltage (IEC) DC: | 1500 V |
| current capacity (IEC) max.: | 630 A |
| Electrical data UL | |
| for wires UL: | Cu 75°C |
| Mechanical data | |
| W x H x D: | 173 x 200 x 118 |
| weight: | 165.7 kg/100 |
| poles: | 3-pole |
| Terminal points | |
| screw clamp connection | |
| screw drive: | S8 |
| wire stripping: | 38 mm |
| min. cross-section: | 95 mm² |
| max. cross-section: | 300 mm² |
| Md min.: | 24.0 Nm |
| Md max.: | 36.0 Nm |
|
Suitable for aluminium cables. When using aluminium cables, observe the maintenance instructions. |
|
| torque Alu: | Alu: Md 30 - 36 Nm |
| min. cross-section UL: | AWG 3/0 |
| max. cross-section UL: | MCM 600 |
| torque (UL): | 266 lb-in |
| for wires UL: | Cu 75°C |
| Suitable for aluminium cables. When using aluminium cables, observe the maintenance instructions. |
|
| The insulation performance of the article depends on the installation conditions. | |
