for UL feeder circuits >250V

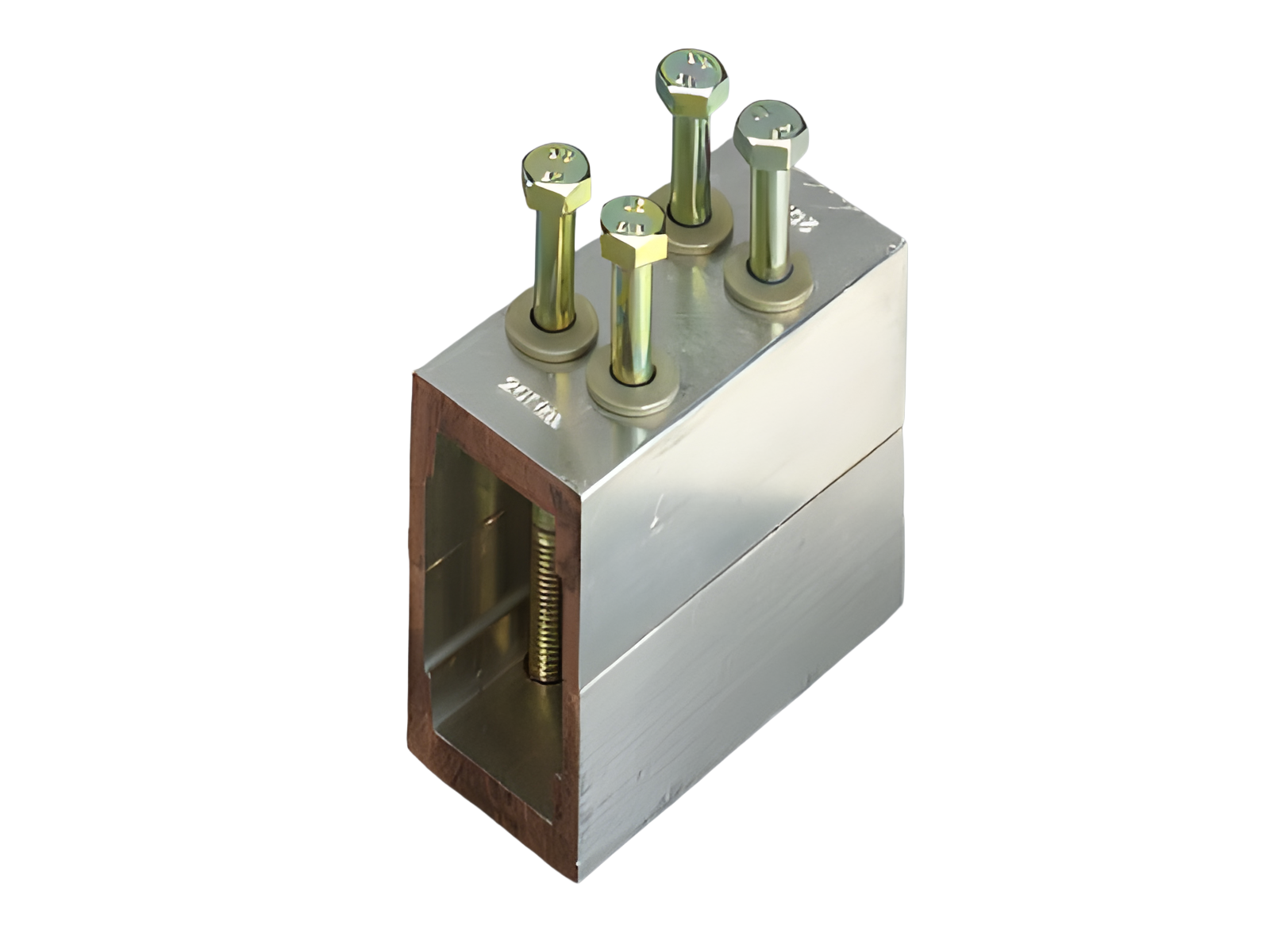

The picture may show a similar product.
Part No.: 01274 000
busbar connecting terminal 2500 A
95 mm
for busbars triple-T section
System
60Classic
| Product group | 07 |
| Subgroup | 33 |
| pack size | 3 |
| EAN | 4021267012748 |
| ECLASS 6.1 | 27400606 |
| ECLASS 7.1 | 27400606 |
| ETIM 4.0 | EC000713 |
| ETIM 5.0 | EC000713 |
Standards
IEC 61439-1:2020
UL 508
Approvals
UL
for UL feeder circuits >250V
type number: LVHH-L
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated voltage (IEC) AC: | 690 V |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 6.2 W.
(The power dissipation at full load would be 9.7 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) AC: | 1000 V |
| max. permitted voltage (IEC) DC: | 1500 V |
| current capacity (IEC) max.: | 2,500 A |
| Details UL | |
| Standards | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated current (UL): | 1800 A |
| SCCR protected max.: | 65 kA |
| SCCR: | 65 kA in combination with HH1140-L and any DIVQ/7 2500 A / 480 V AC |
| Mechanical data | |
| W x H x D: | 95 x 44 x 106 |
| weight: | 120.6 kg/100 |
| for busbars: | triple-T section |
| permitted busbar displacement: | 2 |
| permitted spacing between systems: | 50 - 60 mm |
| Terminal points | |
| screw clamp connection | |
| M8 | |
| Md min.: | 20.0 Nm |
| Md max.: | 25.0 Nm |
| The insulation performance of the article depends on the installation conditions. | |
|
Max. permitted busbar offset 2 mm, 3 units are needed for a 3-pole connection. |
|
| for UL feeder circuits >250V | |
| for a UL-compliant design of the longitudinal busbar connector, the UL separator set 01361 must be used |
01361
000
Set of phase separators for UL installation, 3-pole
for longitudinal connecting terminals 01141, 01145, 01274
145 mm
