for UL feeder circuits >250V
The picture may show a similar product.
Part No.: 32693 000A

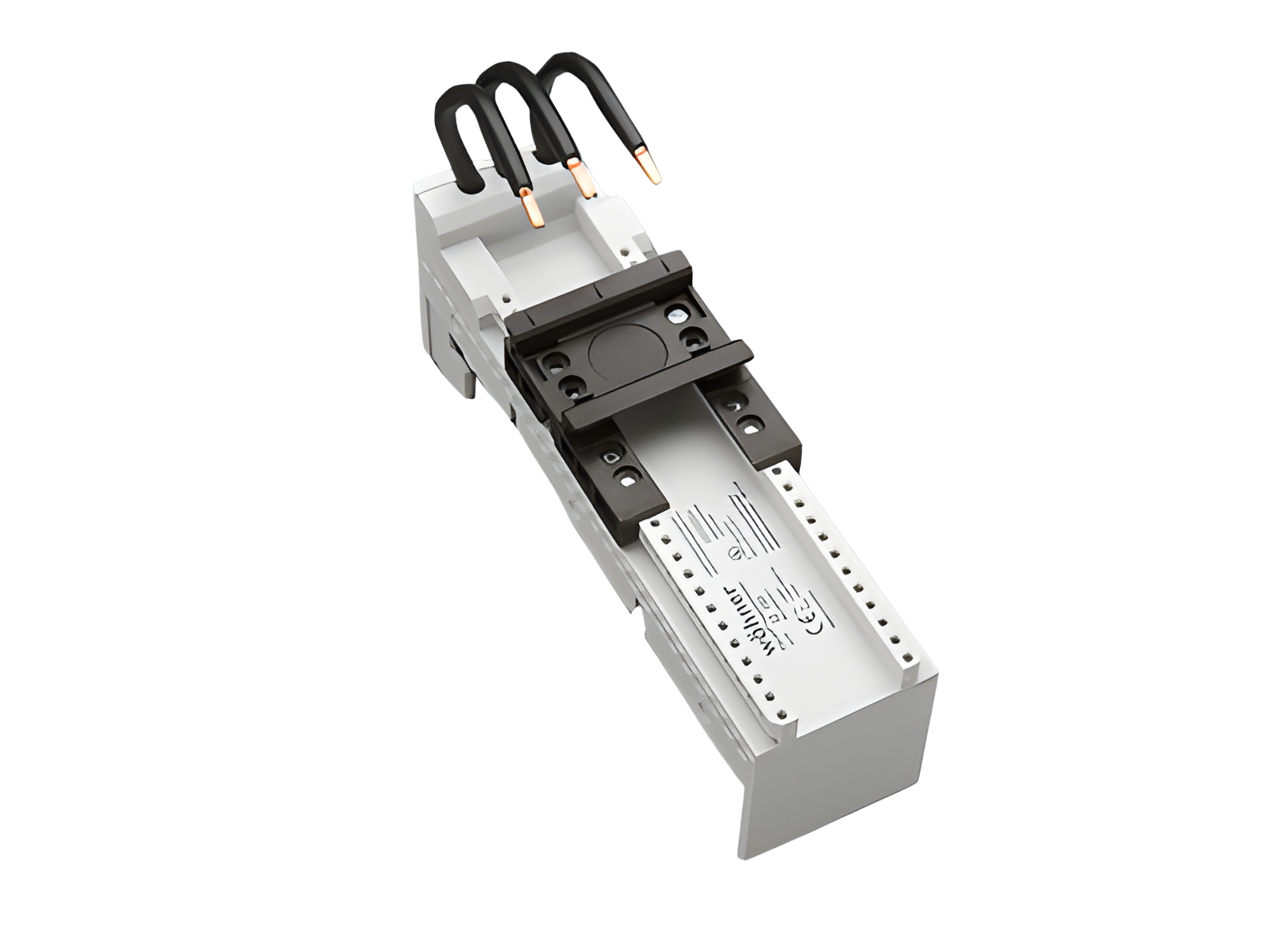

EQUES®30Compact
busbar adapter 25 A
for direct starter Siemens S00 with spring terminal connection
45 x 160, with leads AWG 12 (4 mm²)
for busbars 12 x 5, 10
System
30Compact 3P
Advantages of the product
Conductor ends ultrasonically sealed.
Click mechanism when pushing onto the busbar.
| Product group | 05 |
| Subgroup | 21 |
| pack size | 4 |
| EAN | 4021267326937 |
| ECLASS 6.1 | 27370304 |
| ECLASS 7.1 | 27370304 |
| ETIM 4.0 | EC001531 |
| ETIM 5.0 | EC001531 |
Standards
IEC 61439-1:2020
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated current (IEC): | 25 A |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 800 V |
| rated surge voltage Uimp : | 6 kV |
|
Motorschutzschalter bis 25 A: |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 1.6 W.
(The power dissipation at full load would be 2.5 W.)
| Mechanical data | |
| W x H x D: | 45 x 160 x 63 |
| weight: | 19.8 kg/100 |
| poles: | 3-pole |
| for busbars: | 12 x 5, 10 |
| There must be a clearance of at least 12 mm above the article to remove it from the busbar system. | |
|
For compact mounting of complete motor circuits with commercially available switchgear and safe mechanical and electrical connection to the busbar system. |
|
|
the short-circuit capacity of the combination of adapter and motor starter depends on the motor starter |
|
32912
000

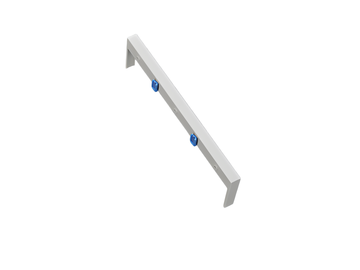

side-mounted module for busbar adapters
attachable to both sides
9 x 160
for: 32590, 32591
