订货号 01480000A

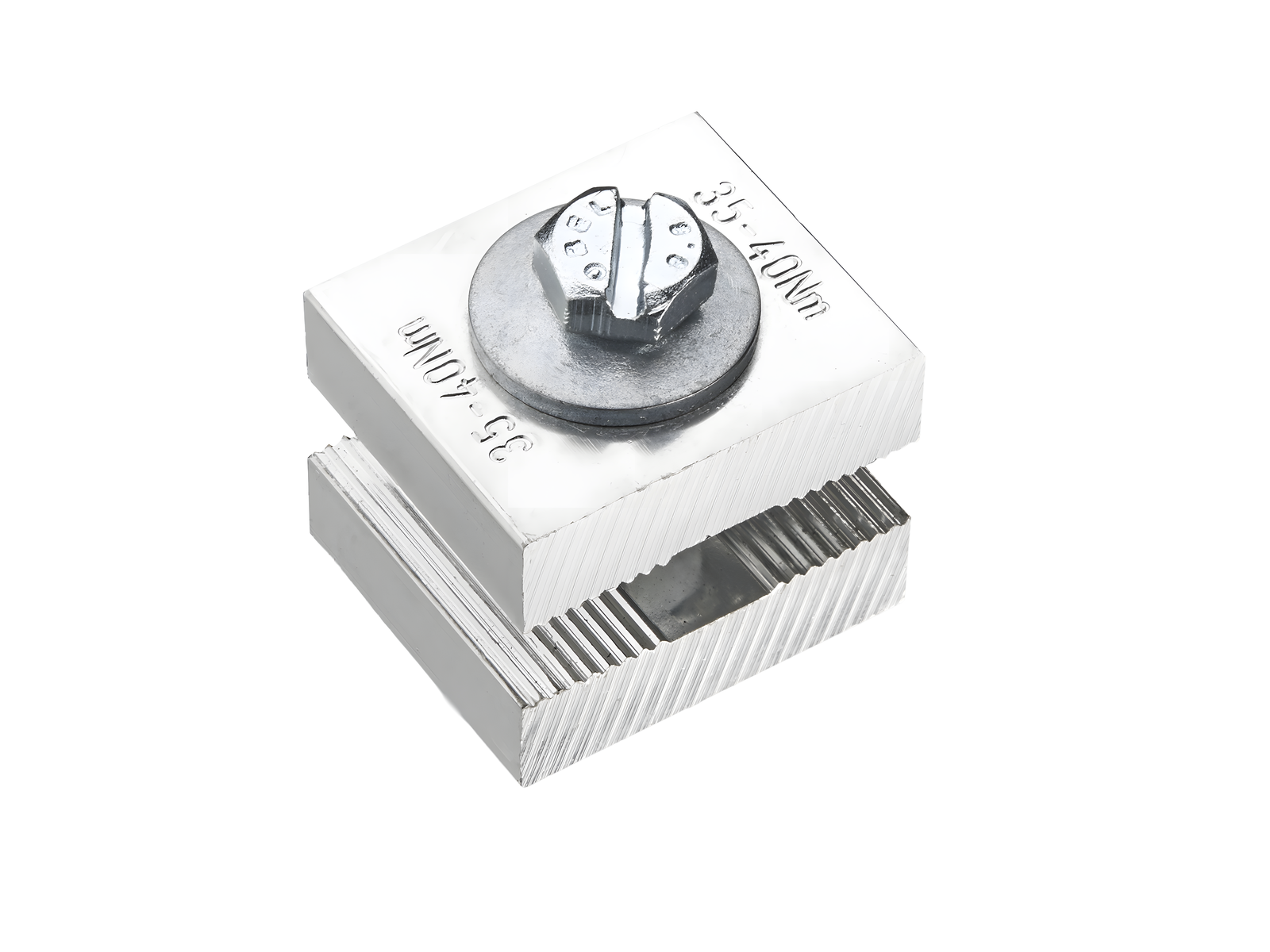

母线加长连接夹
40 mm
适用母线 30, 40, 80, 100 x 10
系统
185Power
| 产品组 | 07 |
分组 |
33 |
| 包装件数 | 3 |
| EAN | 4021267014803 |
| ECLASS 6.1 | 27400606 |
| ECLASS 7.1 | 27400606 |
| ETIM 4.0 | EC000713 |
| ETIM 5.0 | EC000713 |
标准
IEC 61439-1:2020
UL 508
认证许可
UL
for UL feeder circuits >250V
型号: CR185-C40
UL 文件: E123577, UL 类别 (适用美国) : NMTR https://www.ul.com
UL 文件: E123577, UL 类别 (适用加拿大) : NMTR7 https://www.ul.com
CCC 认证: 无需强制认证
| Details IEC | |
| 标准 | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| 额定电压（IEC）AC: | 690 V |
| Supplementary data IEC | |
|
下述参数已经在特定条件下通过测试得到验证。开始设计之前，请联系维纳尔咨询这些条件。 |
| 最大电压 IEC AC: | 1000 V |
| 最大电压 IEC DC: | 1500 V |
| 最大电流负载能力 (IEC): | 750 A |
| the busbar connector was tested in an arrangment where the busbar supports at the connection of the 2 systems had a spacing of 200 mm test conditions: 100x10 - 100x10 (1x 01480 + 1x 01481) peak withstand current Ipk: 106 kA Icw (1,0 s): 50 kA test conditions: 80x10 - 80x10 (2x 01480) peak withstand current Ipk: 106 kA Icw (1,0 s): 50 kA test conditions: 40x10 - 40x10 (1x 01480) peak withstand current Ipk: 81 kA Icw (1,0 s): 34 kA test conditions: 30x10 - 30x10 (1x 01480) peak withstand current Ipk: 81 kA Icw (1,0 s): 34 kA |
| Details UL | |
| 标准 | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| 额定电流 (UL): | 700 A |
| 额定电压 (UL) AC: | 1000 V |
| rated frequency (UL): | 50 / 60 Hz |
| 额定电压 (UL) DC: | 1000 V |
| SCCR unprotected max.: | 42 kA |
| 3 cycles (without OPD) @ 1000 V AC |
| 机械数值 | |
| 宽 x 高 x 厚: | 47 x 40 x 49 |
| 重量: | 48.0 kg/100 |
| 适用母线: | 30, 40, 80, 100 x 10 |
| 允许的母线偏移: | 1 |
| 允许的系统横向间距: | 11 - 14 mm |
| 连接端 | |
| screw clamp connection | |
| M10 | |
| screw drive: | SW17 |
| Md min.: | 35.0 Nm |
| Md max.: | 40.0 Nm |
| 产品的绝缘性能与安装条件有关。 | |
|
说明 |
30x10的母线需要使用端子连接 |
| for UL feeder circuits >250V | |
