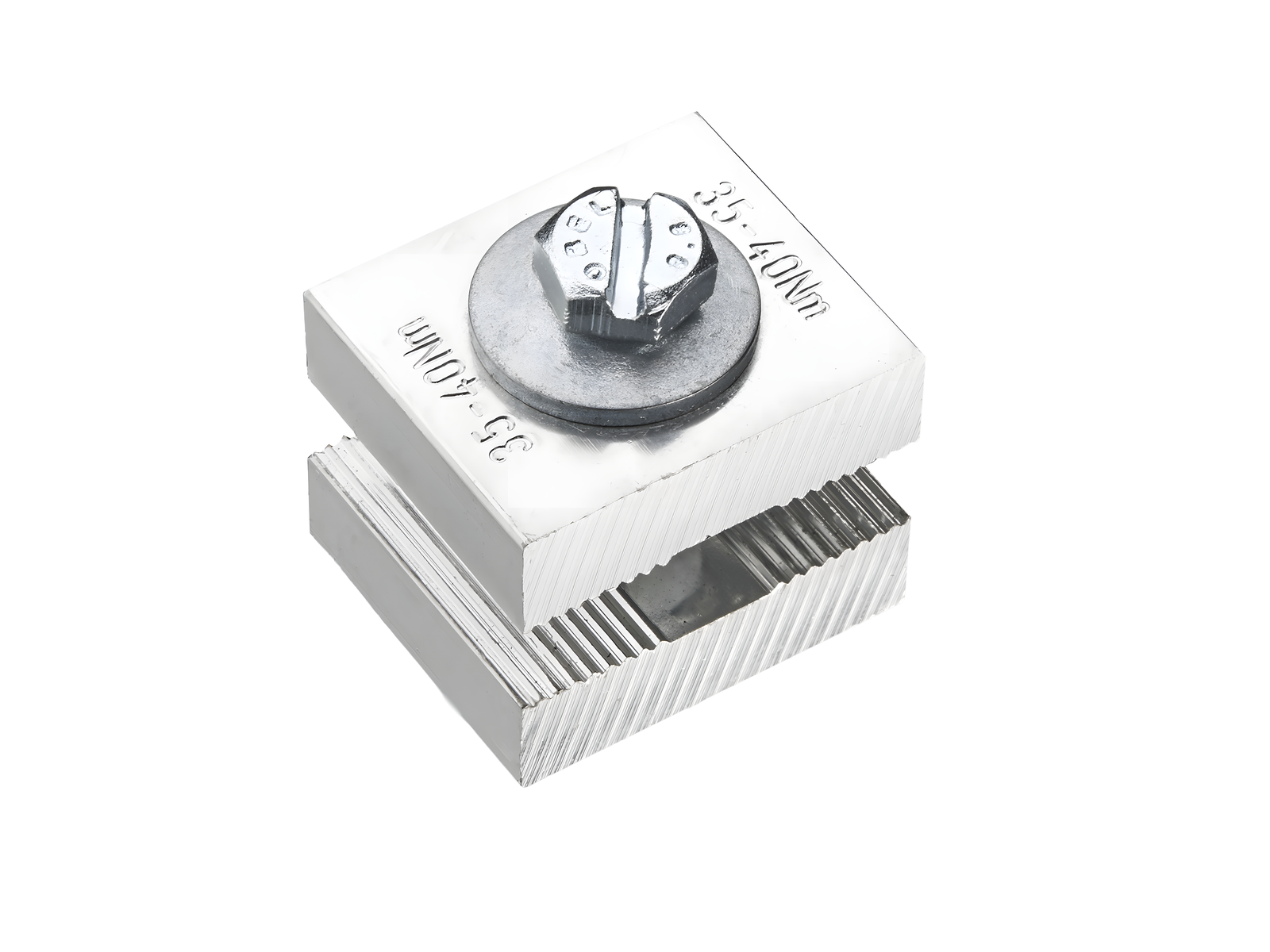

The picture may show a similar product.
Référence 01480000A
raccord longitudinal pour barres
40 mm
pour jeux de barres 30, 40, 80, 100 x 10
Système
185Power
Groupe de produits | 07 |
Sous-groupe | 33 |
Dimensions de l'emballage | 3 |
EAN | 4021267014803 |
ECLASS 6.1 | 27400606 |
ECLASS 7.1 | 27400606 |
ETIM 4.0 | EC000713 |
ETIM 5.0 | EC000713 |
Normes
IEC 61439-1:2020
UL 508
Approbations
UL
for UL feeder circuits >250V
Type: CR185-C40
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
Homologation CCC: no certification required
Details IEC | |
Normes | |
IEC 61439-1:2020 |
Electrical data IEC | |
Tension assignée (IEC) CA: | 690 V |
Supplementary data IEC | |
Les valeurs suivantes ont été vérifiées par des tests sous certaines conditions. Veuillez demander ces conditions à Wöhner avant de concevoir votre armoire. |
Tension maximale IEC CA: | 1000 V |
Tension maximale IEC CC: | 1500 V |
current capacity (IEC) max.: | 750 A |
the busbar connector was tested in an arrangment where the busbar supports at the connection of the 2 systems had a spacing of 200 mm test conditions: 100x10 - 100x10 (1x 01480 + 1x 01481) peak withstand current Ipk: 106 kA Icw (1,0 s): 50 kA test conditions: 80x10 - 80x10 (2x 01480) peak withstand current Ipk: 106 kA Icw (1,0 s): 50 kA test conditions: 40x10 - 40x10 (1x 01480) peak withstand current Ipk: 81 kA Icw (1,0 s): 34 kA test conditions: 30x10 - 30x10 (1x 01480) peak withstand current Ipk: 81 kA Icw (1,0 s): 34 kA |
Details UL | |
Normes | |
UL 508 |
for UL feeder circuits >250V |
Electrical data UL | |
rated current (UL): | 700 A |
rated voltage (UL) AC: | 1000 V |
rated frequency (UL): | 50 / 60 Hz |
rated voltage (UL) DC: | 1000 V |
SCCR unprotected max.: | 42 kA |
3 cycles (without OPD) @ 1000 V AC |
Charactéristiques mécaniques | |
L x H x P: | 47 x 40 x 49 |
Poids: | 48,0 kg/100 |
pour jeux de barres: | 30, 40, 80, 100 x 10 |
permitted busbar displacement: | 1 |
permitted spacing between systems: | 11 - 14 mm |
Les performances d'isolation de l'article dépendent des conditions d'installation. | |
Conseils |
one terminal is required to connect busbars 30x10 |
for UL feeder circuits >250V |
