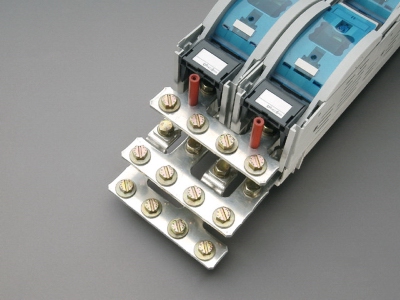

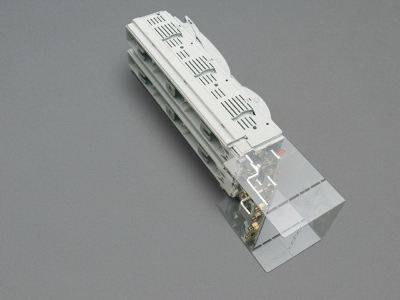

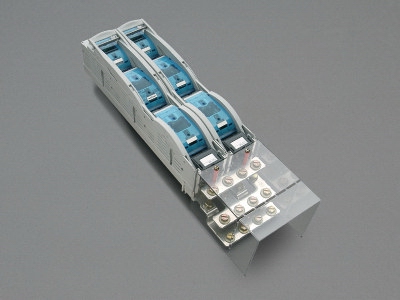

A imagem pode mostrar um produto similar.
Código da peça: 33321 000
seccionadora fusível vertical dupla 1250 A
parafuso M12, comutação tripolar
no longer available
Vantagens do produto
Self-closing inspection holes are available in the cover.
Strips are equipped with arc chambers.
Cover can be locked when closed.
| Grupo de produto | 12 |
| Subgroup | 55 |
| Unidade por pacote | 1 |
| EAN | 4021267333218 |
| ECLASS 6.1 | 27142109 |
| ECLASS 7.1 | 27142109 |
| ETIM 4.0 | EC001046 |
| ETIM 5.0 | EC001046 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Approvals
IEC (CB) , CCC
Número de tipo: SLS3
CCC certificate: 2004010302117259
| permitted power dissipation of the fuse-link: | 48 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Tamanho: | NH 3 |
| Dados IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Dados elétricos IEC | |
| Corrente de medição (IEC): | 1250 A |
| Tensão de medição (IEC) AC: | 690 V |
| Tensão nominal de isolamento: | 1000 V |
| Tensão suportável nominal de impulso Uimp: | 8 kV |
| Utilisation category AC (IEC 60947-3) : | AC-20B (690 V) |
| cond. short-circuit current with fuses (AC): | 50 kA / 690 V |
| approved wth fuse links of operation class: | gG |
Dissipação de energia do artigo:
A dissipação de energia em uma carga de 80% resulta em 148,5 W.
(A dissipação de energia em sua carga máxima seria 232,0 W.)
| Dados adicionais IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| Special operating conditions corresponding to IEC / EN 61439-1 may yield to foulty activations of pilot switches and fuse monitors. The operating conditions have to be considered for the analysis of status signals. | |
| Degree of protection IP30 at front, degree of protection near terminal depends on installation |
| Dados mecânicos | |
| L x A x P: | 199 x 840 x 197 |
| Peso: | 1400,0 kg/100 |
Type of fastening:
can be screwed onto drilled busbar, diameter 13mm, undrilled drilling with terminal clamp
connection:
screw connection M12 / 4 x 240mm², SW19, 35Nm torque
| pontos terminais | |
|
screws M 12 / 4x240mm², wrench size 19, 35 Nm |
|
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
| permitted power dissipation of the fuse-link: | 48 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
33156
000
interruptor de sinalização
