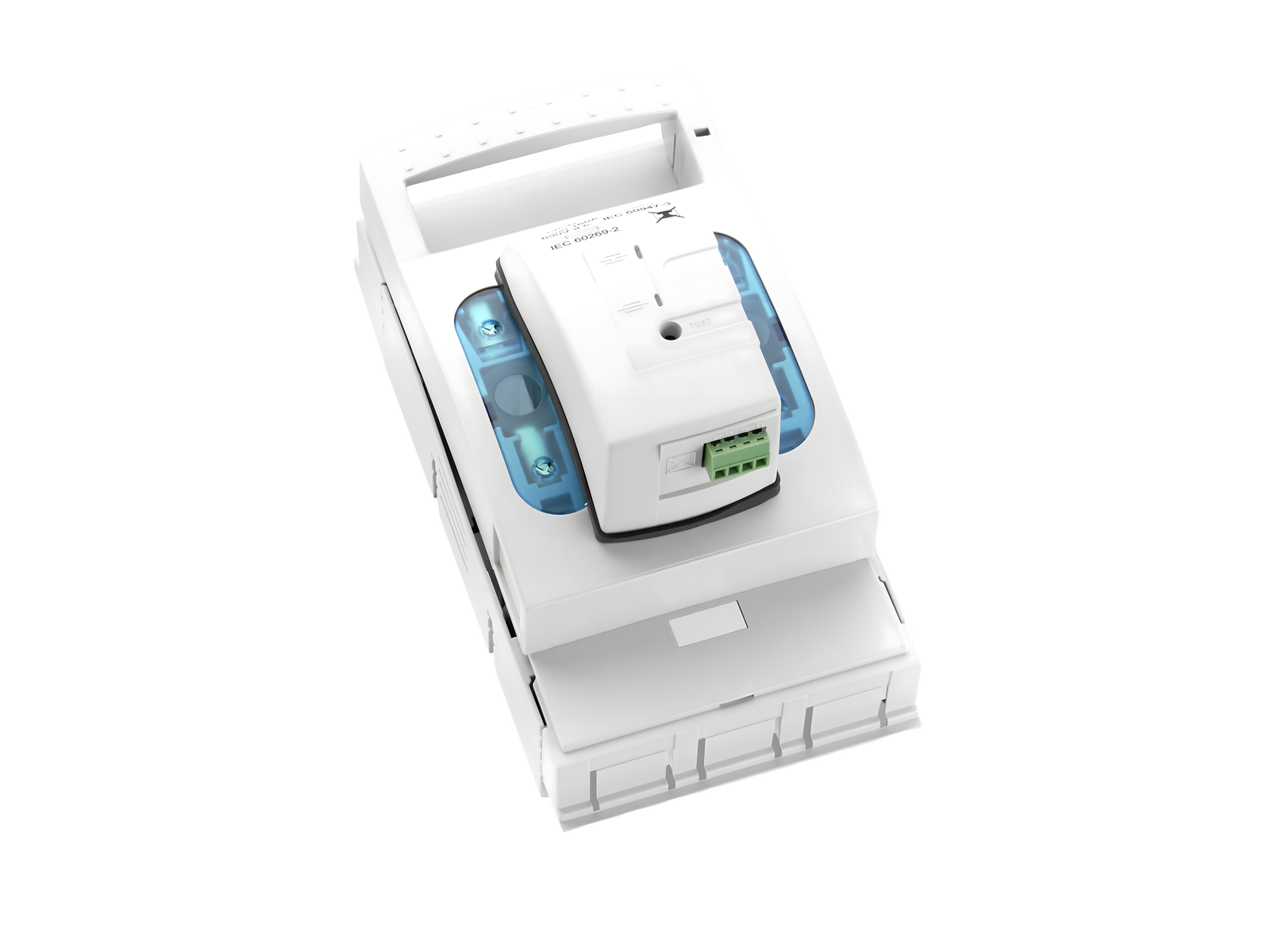

A imagem pode mostrar um produto similar.
Código da peça: 33328 000
QUADRON®Panel
chave seccion. de fusível NH tam. 00, 160 A, montagem em painel
Size NH 00
grampo 70 mm²
with electronic fuse monitoring
para montagem em placa
Sistema
Panel
Vantagens do produto
self-closing inspection holes are available in the cover, shock protection split into 2 for safe connection
| Grupo de produto | 09 |
| Subgroup | 04 |
| Unidade por pacote | 1 |
| EAN | 4021267333287 |
| ECLASS 6.1 | 27142108 |
| ECLASS 7.1 | 27142108 |
| ETIM 4.0 | EC001040 |
| ETIM 5.0 | EC001040 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
UL 4248-1
Approvals
IEC (CB) , UL , CCC , DNV GL
for UL feeder circuits >250V
Número de tipo: LTS-00
| for fuse links size: | NH 000, NH 00 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| live grip lugs required: | Yes |
| permitted power dissipation of the fuse-link: | 12 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Dados IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Dados elétricos IEC | |
| Corrente de medição (IEC): | 160 A |
| Tensão de medição (IEC) AC: | 690 V |
| Tensão de medição (IEC) DC: | 250 V |
| Tensão nominal de isolamento: | 690 V |
| rated isolation voltage Ui DC: | 250 V |
| Tensão suportável nominal de impulso Uimp: | 6 kV |
| Utilisation category AC (IEC 60947-3) : | AC-21B (690 V) AC-22B (500 V) AC-23B (400 V) |
| cond. short-circuit current with fuses (AC): | 50 kA / 690 V |
| approved wth fuse links of operation class: | gG |
Dissipação de energia do artigo:
A dissipação de energia em uma carga de 80% resulta em 4,5 W.
(A dissipação de energia em sua carga máxima seria 7,0 W.)
| Dados adicionais IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| tensão máxima IEC AC: | 725 V |
| tensão máxima IEC DC: | 262 V |
| further utilisation category AC (IEC 60947-3): | AC-20B (1000V) at pollution degree 2 visible information required if used at more than 690V AC: do not switch under load |
| further utilisation category DC (IEC 60947-3): | DC specifications: 2 current paths (L1,L3) in series DC-22B (220V) DC-22B (440V/125A) DC-21B (440V) DC-20B (1000V) at pollution degree 2 visible information required if used at more than 440V DC: do not switch under load |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| for fuse links IEC 60269-2-1 (I) / DIN VDE 0636-201 size 00 up to 12W power dissipation, with grip lugs under voltage | |
| Special operating conditions corresponding to IEC / EN 61439-1 may yield to foulty activations of pilot switches and fuse monitors. The operating conditions have to be considered for the analysis of status signals. | |
| Entsprechend den angegeben AC- und DC- Schalteigenschaften und unter Berücksichtigung der Überlastbedingungen, sind gewisse Abstände zu geerdeten Metallteilen einzuhalten. Nähere Informationen auf Anfrage. Bei Verwendung als Trennschalter ist die Einhaltung der Abstände nicht erforderlich. |
|
| Schutzart IP30 frontseitig, im Anschlussbereich vom Einbau abhängig Elektronische Sicherungsüberwachung: - Zur Erkennung von Sicherungsausfällen mit Bemessungsspannung AC 100V bis AC 690V - Keine Hilfsenergie erforderlich; Versorgung über Netzspannung - Hilfskontakte potentialfrei - LED- Blinkmelder (rot/grün) - Testtaster - Weitere Informationen unter Downloads / Datenblatt |
| Dados UL | |
| Standards | |
| UL 4248-1 |
| for UL feeder circuits >250V |
| Dados electricos UL | |
| corrente nominal (UL): | 160 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR: | 100 kA |
| Dados mecânicos | |
| L x A x P: | 106 x 176 x 123 |
| Peso: | 93,0 kg/100 |
| Polaridade: | 3 polos |
| Montagem: | para montagem em placa |
| front degree of protection: | IP30 |
| pontos terminais | |
| min. cross-section: | 1,5 mm² |
| max. cross-section: | 70 mm² |
| rm: | 1.5 - 70 mm² |
| f + AE: | 1.5 - 70 mm² |
| (f + AE may not fit with max. cross-section) | |
| Md min.: | 2,4 Nm |
| Md max.: | 3,6 Nm |
| Not suitable for aluminium cables ! | |
| lam. Cu width: | 8 - 12 mm |
| lam. Cu thickness: | 2 - 10 mm |
| Not suitable for aluminium cables ! | |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
| live grip lugs required: | Yes |
| permitted power dissipation of the fuse-link: | 12 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| for UL feeder circuits >250V | |
33193
000
kit de montagem rápida
para 2 trilhos de montagem, distância central dos trilhos 125 mm ou 150 mm
tamanho 00
Mais
01182
000
régua de terminais para conexão por parafuso M8
1x 2.5 - 16 mm² + 2x 2.5 - 25 mm²
NH 00
Mais
30894
000
conexão por parafuso M8
com arruela de pressão
tamanho 00
Mais
33224
000
terminal prisma, único, para cabos em Cu
16 - 70 mm²
NH 00
Mais
79811
000
cobertura para conectores de cabo, fixável na parte superior/inferior
NH 00
para: 33200, 33208, 33329, 33394, 33398, 33420
Mais
78105
000
moldura de acabamento, dupla
232 x 210, não para 33221, 33222
tamanho 00
Mais
78893
000
moldura de acabamento, única
130 x 210, não para 33221, 33222
tamanho 00
Mais
33280
000
capa de conexão
tamanho 00
para: 33234, 33235
Mais
