réglette sectionneur à fusible 160 A (37535)

The picture may show a similar product.

Description

Référence 37535 000A

QUADRON®185Power

réglette sectionneur à fusible 160 A

Taille 00, commutation à 1 pôle

high version with V-clamp 16-120 mm²

terminal body alu, pressure piece brass

prewired with 3x measuring transformers 150 A / 333 mV, accuracy class 0.5, with 6-pole plug connection

pour jeux de barres 30, 40, 60, 80, 100, 120 x 10

coming soon

Système

185Power

Avantages produit

Self-closing inspection holes are available in the cover.

Cover can be locked when closed.

Groupe de produits 12
Sous-groupe 62
Dimensions de l'emballage 1
EAN 4021267375256
ECLASS 6.1 27142108
ECLASS 7.1 27142108
ETIM 4.0 EC001046
ETIM 5.0 EC001046

Homologations

Normes

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Type: QU185-00 Pre-Assembled

Données techniques

for fuse links size: NH 000, NH 00
fuse links acc. to standard: IEC / HD 60269-2
permitted power dissipation of the fuse-link: 12 W
requirements for contact parts: Fuse links with silver-plated contact pieces recommended.
For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.
Details IEC
Normes
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Electrical data IEC
Courant assigné (IEC): 150 A
Tension assignée (IEC) CA: 800 V
accuracy class (current): 0.5
rated isolation voltage Ui AC: 1000 V
Tension assignée de tenue aux chocs Uimp: 8 kV
Catégorie d'emploi CA:

AC-22B (800 V / 63 A)
AC-21B (690 V / 125 A)
AC-22B (500 V / 160 A)
AC-23B (400 V / 160 A)
Catégorie d'emploi CC: DC-20B
max. voltage between the fuses: 1000V
visible information required: Do not switch under load.
cond. short-circuit current with fuses (AC): 30 kA / 800 V (63 A)
100 kA / 690 V
approved wth fuse links of operation class: gG

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 17,9 W.

(The power dissipation at full load would be 28,0 W.)

Degree of protection IP20 at front, degree of protection near terminal depends on installation
Charactéristiques mécaniques
L x H x P: 50 x 687 x 189
Poids: 298,0 kg/100
Pôles: 3 pôles
pour jeux de barres: 30, 40, 60, 80, 100, 120 x 10
front degree of protection: IP20
degree of protection when open: IP10

Type of fastening:
can be screwed onto drilled busbar, undrilled mounting with terminal clamp

Points de raccordement
v-clamp
min. cross-section: 16 mm²
max. cross-section: 120 mm²
re: 16 - 95 mm²
rm: 16 - 95 mm²
se: 25 - 120 mm²
sm: 25 - 120 mm²
Suitable for aluminium conductors.
the temperature of aluminium conductors must not exceed 80°C (see operating instructions)
pre-treatment of aluminium conductors: see general technical information (under Downloads)

Application notes

Suitable for aluminium conductors.
the temperature of aluminium conductors must not exceed 80°C (see operating instructions)
pre-treatment of aluminium conductors: see general technical information (under Downloads)
permitted power dissipation of the fuse-link: 12 W
requirements for contact parts: Fuse links with silver-plated contact pieces recommended.
For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.

Links

Article master data, overviews and prices

Calcul de la plus-value métal

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Documentation

| Informations techniques générales

| Notice de montage

| Dessin d’encmbrement

| Dimensioned drawing  #2

| Déclaration de conformité UE

| Descriptif produit (Pdf) - draft

| Donnée pour la vérification de la conformité à l’IEC/EN 61439-1

| Texte complet pour spécification format (*.rtf) - draft

| Texte standard pour spécification format (*.rtf) - draft

Accessoires

accessories for mounting

33739 000A
étrier de serrage
pour des jeux de barres sans caches de protection
taille 00
Plus

33765 000A
étrier de serrage CrossLink® IP20
pour des jeux de barres avec protection contre les contacts accidentels
taille 00
Plus

connection accessories

33557 000A
V-clamp
corp de la borne en alu et pièce de pression en laiton
taille 00
pour Cu / Al 16 - 120 mm²
Nouveau
Plus

covers

33732 000A
cache bornes, version haute, raccordement en bas
pour 33700, 33715, 33720, 33770, 33771, 33772 et QUADRON®185Power Speed, 00
taille 00
Plus

33113 000
pour les caches latéraux
pour caches frontaux
taille 00 - 3
Plus

33758 000A
obturateur latéral
pour caches frontaux
taille 00 - 3
Plus

connection cable

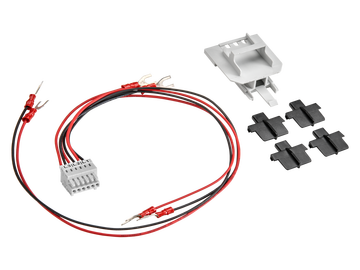

37901 000A
Connection kit LTL NH1-3 for RJ12 cables
spring strip with 6 x 0.5 mm² cables
for internal wiring of the transformers and connection of the RJ12 cable
coming soon
Plus

37903 000A
Wago connector components
for independent assembly of RJ12 cables
coming soon
Plus

further accessories

33156 000
contact de signalisation
commutateur 250 V AC / 5 A, 30 V DC / 4 A
Plus
