Арт.: 37535 000A
QUADRON®185Power
Линейный выключатель-разъединитель с предохранителями 160 A
Типоразмер 00, 1-полюсное отключение
high version with V-clamp 16-120 mm²
terminal body alu, pressure piece brass
prewired with 3x measuring transformers 150 A / 333 mV, accuracy class 0.5, with 6-pole plug connection
для шин 30, 40, 60, 80, 100, 120 x 10
coming soon
Система
185Power
Преимущества продукта
Self-closing inspection holes are available in the cover.
Cover can be locked when closed.
Группа продуктов | 12 |
Подгруппа | 62 |
Кол-во | 1 |
EAN | 4021267375256 |
ECLASS 6.1 | 27142108 |
ECLASS 7.1 | 27142108 |
ETIM 4.0 | EC001046 |
ETIM 5.0 | EC001046 |
Стандарты
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
номер типа: QU185-00 Pre-Assembled
для предохранителей размера: | NH 000, NH 00 |
предохранители в соответствии со стандартом: | IEC / HD 60269-2 |
допустимая мощность рассеивания плавкой вставки: | 12 W |
requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
Подробности IEC | |
Стандарты | |
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
Электрические данные IEC | |
Номинальный ток (IEC): | 150 A |
номинальное напряжение (IEC) AC: | 800 В |
accuracy class (current): | 0.5 |
номинальное напряжение изоляции U i AC: | 1000 В |
номинальное импульсное напряжение U imp : | 8 kV |
Катагория применения AC: | AC-22B (800 V / 63 A) |
Категория применения DC: | DC-20B max. voltage between the fuses: 1000V visible information required: Do not switch under load. |
cond. short-circuit current with fuses (AC): | 30 kA / 800 V (63 A) |
100 kA / 690 V | |
одобрено с плавкими вставками рабочего класса: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 17,9 Вт.
(The power dissipation at full load would be 28,0 Вт.)
Degree of protection IP20 at front, degree of protection near terminal depends on installation |
Механические данные | |
Ш x В x Г: | 50 x 687 x 189 |
Вес: | 298,0 kg/100 |
Полюсность: | 3-пол. |
для шин: | 30, 40, 60, 80, 100, 120 x 10 |
фронтальная степень защиты: | IP20 |
degree of protection when open: | IP10 |
Type of fastening:
can be screwed onto drilled busbar, undrilled mounting with terminal clamp
Особенности клеммной техники | |
v-clamp | |
min. cross-section: | 16 мм² |
max. cross-section: | 120 мм² |
re: | 16 - 95 mm² |
rm: | 16 - 95 mm² |
se: | 25 - 120 mm² |
sm: | 25 - 120 mm² |
Suitable for aluminium conductors. the temperature of aluminium conductors must not exceed 80°C (see operating instructions) pre-treatment of aluminium conductors: see general technical information (under Downloads) |
Suitable for aluminium conductors. the temperature of aluminium conductors must not exceed 80°C (see operating instructions) pre-treatment of aluminium conductors: see general technical information (under Downloads) |
|
допустимая мощность рассеивания плавкой вставки: | 12 W |
requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
33739
000A
Клеммный зажим
Для шинных систем без защитных крышек
Типоразмер 00
More
33765
000A
CrossLink® клеммный зажим IP20
Для шинных систем с защитой от прикосновения
Типоразмер 00
More
33557
000A
V-clamp
terminal body alu, pressure piece steel
Типоразмер 00
for Cu / Al 16 - 120 mm²
НОВЫЙ
More
33732
000A
Крышка клеммного отсека, высокая версия, подсоединение снизу
Для 33700, 33715, 33720, 33770, 33771, 33772 и QUADRON®185Power Speed типоразмер 00
Типоразмер 00
More
33113
000
Суппорт продольной крышки
Для передних крышек
Типоразмер 00 - 3
More
33758
000A
Продольная соединительная полоса
Для передних крышек
Типоразмер 00 - 3
More
37901
000A

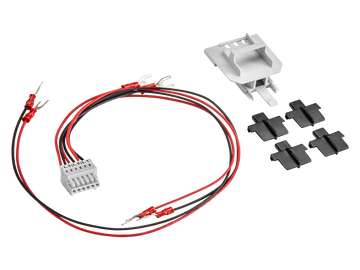

Connection kit LTL NH1-3 for RJ12 cables
