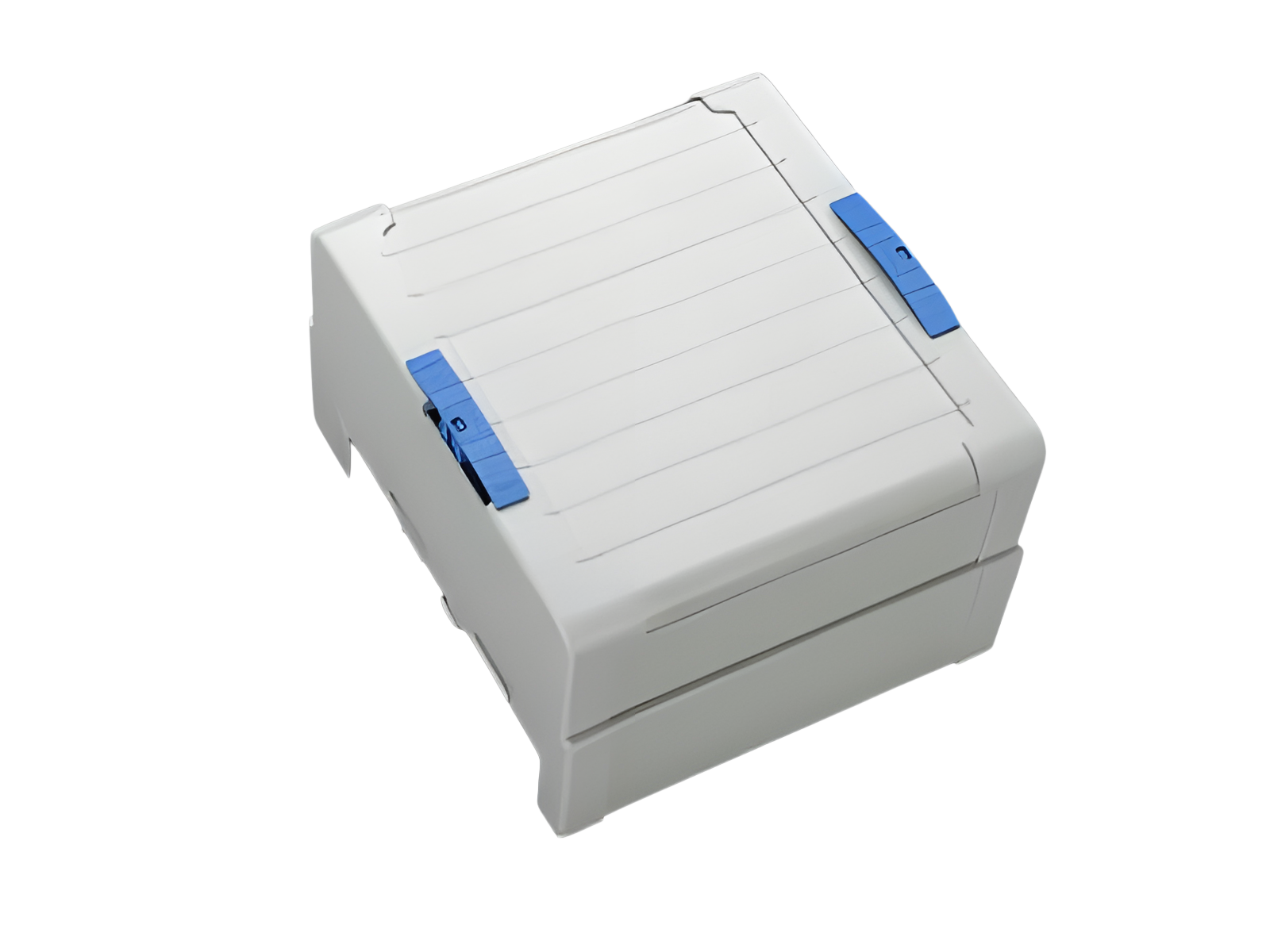

La imagen puede mostrar un producto similar.
Part No.: 01539000
tapa, 3 polos
180 mm de anchura
180 x 200 x 90
para barras 12, 15, 20, 25, 30 x 5, 10 y barras perfiladas
sistema
60Classic
| grupo de producto | 07 |
| subgrupo | 36 |
| embalaje | 1 |
| EAN | 4021267015398 |
| ECLASS 6.1 | 27370390 |
| ECLASS 7.1 | 27370390 |
| ETIM 4.0 | EC002498 |
| ETIM 5.0 | EC002848 |
Normas
IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003
UL 508
homologaciónes
CSA , UL , DNV GL
for UL feeder circuits >250V
tipo: CTC60-L
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
Homologación CCC: no es obligatoria la certificación
| datos IEC | |
| Normas | |
|
IEC 61439-1:2020 IEC 60999-1:1999 IEC 60999-2:2003 |
| datos UL | |
| Normas | |
| UL 508 |
| for UL feeder circuits >250V |
| datos mecánicos | |
| An x A x P: | 180 x 200 x 90 |
| peso: | 33,0 kg/100 |
| Polaridad: | 3 polos |
| para barras: | 12, 15, 20, 25, 30 x 5, 10 y barras perfiladas |
|
Notas |
Also suitable as reserve section cover. |
| short-circuit withstandability: | not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit |
| for UL feeder circuits >250V | |
