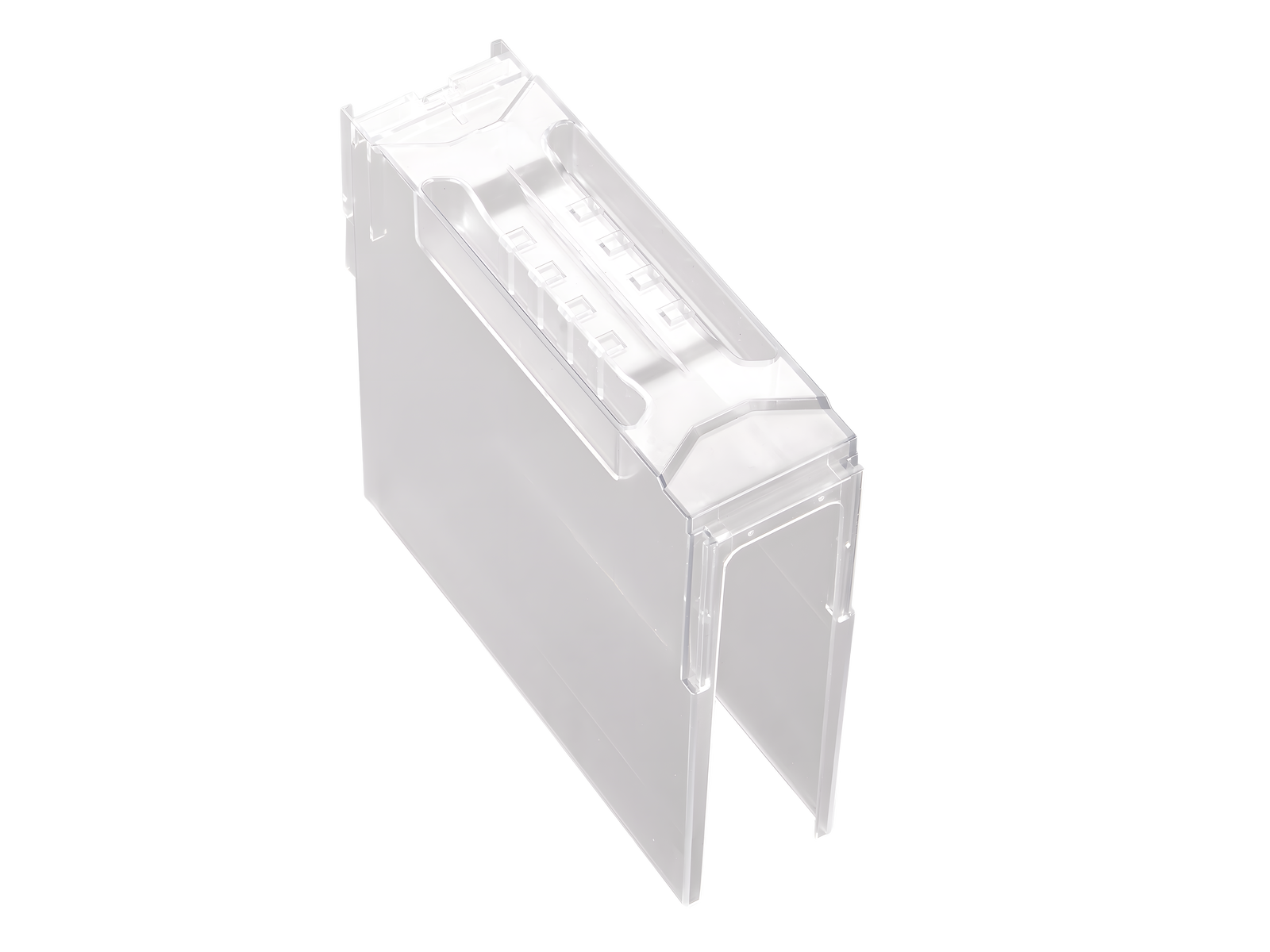

terminal compartment cover, high version, connection bottom (33732)

The picture may show a similar product.

Description

Part No.: 33732 000A

terminal compartment cover, high version, connection bottom

for 33700, 33715, 33720, 33770, 33771, 33772 and QUADRON®185Power Speed size 00

size 00

System

185Power

Product group 12
Subgroup 70
pack size 1
EAN 4021267337322
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Mechanical data
W x H x D: 50 x 166 x 150
weight: 18.2 kg/100

Application notes

not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Usage

33715 000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 1-pole switchable
high version with screw M8
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33700 000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 3-pole switchable
high version with screw M8
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33772 000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 1-pole switchable
high version with box terminal 1,5-95 mm²
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33771 000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 3-pole switchable, with fuse monitoring
high version with box terminal 70 mm²
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33720 000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 3-pole switchable, with fuse monitoring
high version with screw M8
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33770 000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 3-pole switchable
high version with box terminal 1,5-95 mm²
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

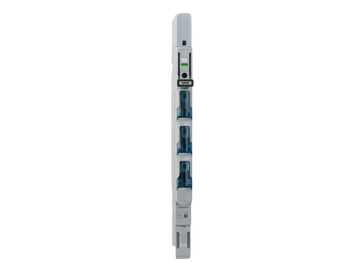

33617 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection top M8
screw connection
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

33611 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection bottom M8
screw connection
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

33626 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection top M8
CrossLink connection, with fuse monitoring
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
suitable for systems with CrossLink protection modules
More

33622 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection top M8
CrossLink connection, with fuse monitoring
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
suitable for systems with CrossLink protection modules
More

33624 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection bottom M8
CrossLink connection, with fuse monitoring
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
suitable for systems with CrossLink protection modules
More

33625 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection bottom M8
screw connection, with fuse monitoring
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

33621 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection bottom M8
screw connection, with fuse monitoring
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

33627 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection top M8
tall version, outgoing terminals at the top, screw connection
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

33612 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection top M8
CrossLink connection
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
suitable for systems with CrossLink protection modules
More

33623 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection top M8
screw connection, with fuse monitoring
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

33616 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection top M8
CrossLink connection
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
suitable for systems with CrossLink protection modules
More

33610 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection bottom M8
CrossLink connection
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
suitable for systems with CrossLink protection modules
More

33615 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection bottom M8
screw connection
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

33614 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection bottom M8
CrossLink connection
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
suitable for systems with CrossLink protection modules
More

33620 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection bottom M8
CrossLink connection, with fuse monitoring
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
suitable for systems with CrossLink protection modules
More

33613 000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection top M8
screw connection
double-breaking
operator independent switching (snap-action mechanism)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

33591 000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
with extended touch protection IP20 when open
Size 00, 1-pole switchable
high version with screw M8
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33592 000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
with extended touch protection IP20 when open
Size 00, 1-pole switchable
high version with box terminal 70 mm²
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33590 000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
high version with box terminal 70 mm²
Size 00, 3-pole switchable
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

37535 000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 1-pole switchable
high version with V-clamp 16-120 mm²
terminal body alu, pressure piece brass
prewired with 3x measuring transformers 150 A / 333 mV, accuracy class 0.5, with 6-pole plug connection
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

37535 000B
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 1-pole switchable
high version with V-clamp 16-120 mm²
terminal body alu, pressure piece brass
prewired with 3x measuring transformers 150 A / 333 mV, accuracy class 1, with 6-pole plug connection
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33535 000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 1-pole switchable
high version with V-clamp 60-120 mm²
terminal body alu, pressure piece steel
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33589 000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
with extended touch protection IP20 when open
Size 00, 3-pole switchable
high version with screw M8
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

37700 000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 3-pole switchable
high version with screw M8
terminal body alu, pressure piece brass
prewired with 3x measuring transformers 150 A / 333 mV, accuracy class 0.5, with 6-pole plug connection
for busbars: 30, 40, 60, 80, 100, 120 x 10
NEW
More

37530 000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 3-pole switchable
high version with V-clamp 16-120 mm²
terminal body alu, pressure piece steel
prewired with 3x measuring transformers 150 A / 333 mV, accuracy class 0.5, with 6-pole plug connection
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

37530 000B
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 3-pole switchable
high version with V-clamp 16-120 mm²
terminal body alu, pressure piece brass
prewired with 3x measuring transformers 150 A / 333 mV, accuracy class 1, with 6-pole plug connection
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33530 000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 3-pole switchable
high version with V-clamp 60-120 mm²
terminal body alu, pressure piece steel
for busbars: 30, 40, 60, 80, 100, 120 x 10
coming soon
More

33520 000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 3-pole switchable
high version with V-clamp 95 mm²
Klemmengehäuse Alu, Druckstück Messing
for busbars: 30, 40, 60, 80, 100, 120 x 10
phase-out product
More

https://pim.woehner.de/EN/INT/1000155882

Find your contact

to the contact site

Wöhner GmbH & Co. KG
Elektrotechnische Systeme
Mönchrödener Str. 10
96472 Rödental

Order hotline (Germany)
+49 9563 751 161
order@woehner.de

Technical hotline (Germany)
+49 9563 751 260
support@woehner.com
