The picture may show a similar product.
Part No.: 33732 000A

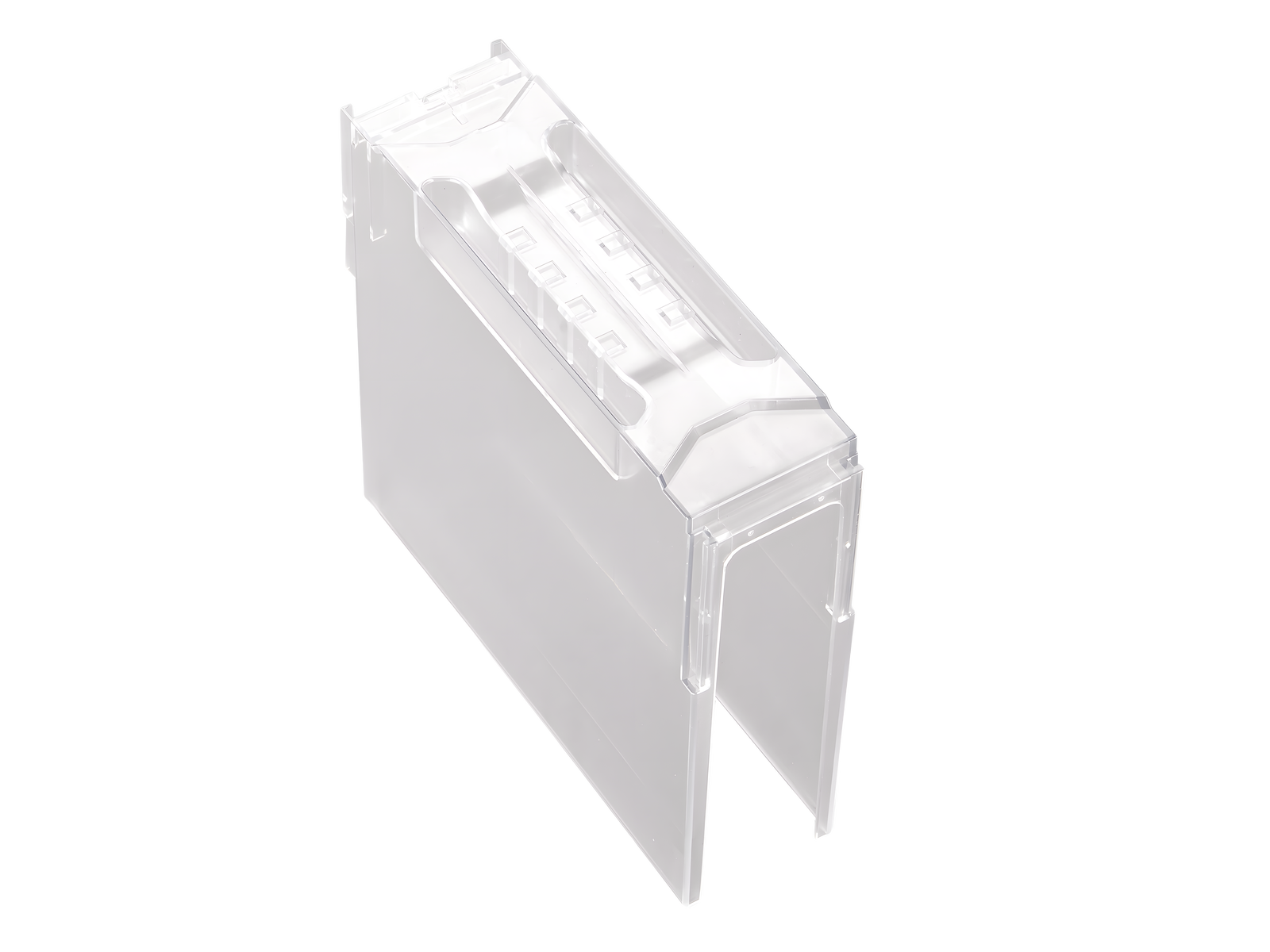

terminal compartment cover, high version, connection bottom
for 33700, 33715, 33720, 33770, 33771, 33772 and QUADRON®185Power Speed size 00
size 00
System
185Power
| Product group | 12 |
| Subgroup | 70 |
| pack size | 1 |
| EAN | 4021267337322 |
| ECLASS 14.0 | 27142190 |
| ETIM 5.0 | EC002498 |
| ETIM 8.0 | EC002498 |
| ETIM 10.0 | EC002498 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
EAC Type: AC-A
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Mechanical data | |
| W x H x D: | 50 x 166 x 150 |
| weight: | 18.2 kg/100 |
| Material properties | |
| halogen-free: | Yes |
|
not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit |
|
