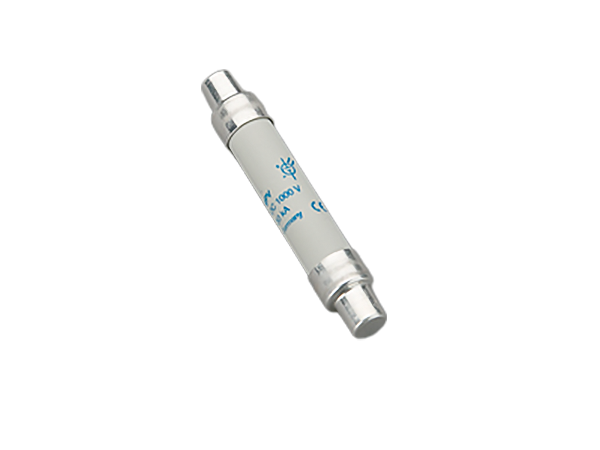

The picture may show a similar product.
Part No.: 31559000
cylindr. fuse link 20 A
1100 V DC, gPV
14 x 85
| Product group | 22 |
| Subgroup | 25 |
| pack size | 20 |
| EAN | 4021267315597 |
| ECLASS 6.1 | 27142002 |
| ECLASS 7.1 | 27142002 |
| ETIM 4.0 | EC002704 |
| ETIM 5.0 | EC002704 |
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-6:2010 + A1:2018
| size: | 14x85 |
| Details IEC | |
| Standards | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-6:2010 + A1:2018 |
| Electrical data IEC | |
| rated current (IEC): | 20 A |
| rated voltage (IEC) DC: | 1100 V |
| operation class | gPV |
| rated short-circuit breaking capacity DC | 30 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 3.0 W.
(The power dissipation at full load would be 4.7 W.)
| Mechanical data | |
| W x H x D: | 14 x 14 x 85 |
| weight: | 2.7 kg/100 |
