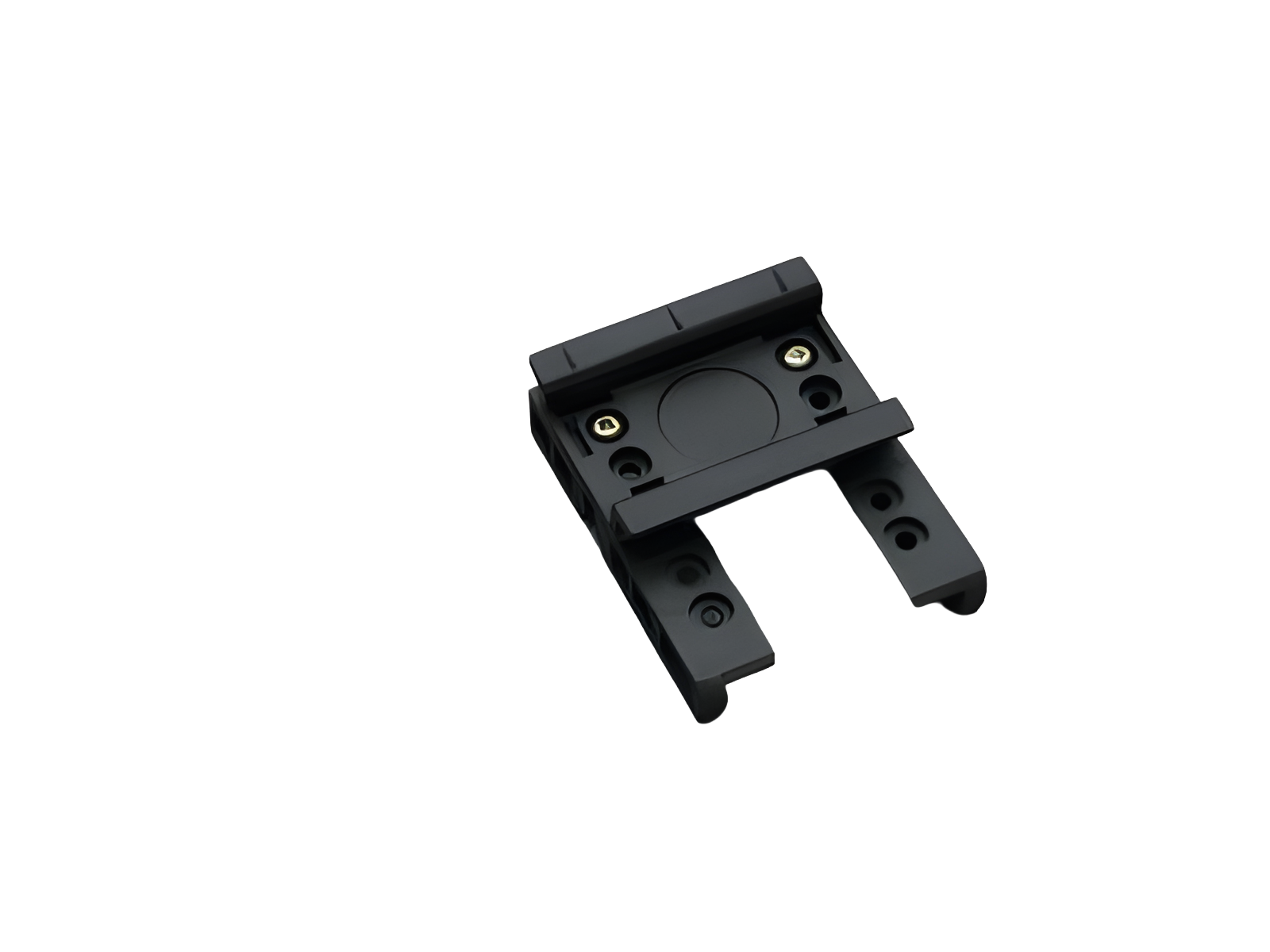

mounting rail 45 mm (32947)

The picture may show a similar product.

Description

Part No.: 32947000

mounting rail 45 mm

for busbar adapters

System

CrossBoard® 125A / 250A, CrossBoard® 800 A, 60Classic

Product group 05
Subgroup 57
pack size 10
EAN 4021267329471
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC000212
ETIM 5.0 EC001285

Approvals

Standards

IEC 61439-1:2020

UL 508

Approvals

CSA , UL , DNV GL

for UL feeder circuits >250V

type number: TS35-L

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Details UL
Standards
UL 508
for UL feeder circuits >250V
Mechanical data
weight: 1.4 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit
for UL feeder circuits >250V

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

32425000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
45 x 260, with removable upper section, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32484000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
45 x 260, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32402000
EQUES®60Classic
busbar adapter 25 A
2 adjustable mounting rails
45 x 260, with removable upper section and leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32487000
EQUES®60Classic
busbar adapter 32 A
2 adjustable mounting rails
45 x 260, without leads, with spring terminals 1.5 - 6 mm² from front
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32486000
EQUES®60Classic
busbar adapter 32 A
1 adjustable mounting rail
45 x 200, without leads, with spring terminals 1.5 - 6 mm² from front
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32655000
EQUES®60Classic
busbar adapter 32 A
1 adjustable mounting rail
45 x 200, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32636000
EQUES®60Classic
busbar component support
1 adjustable mounting rail and 1 positioner for Siemens S00 and S0
45 x 260, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32433000
EQUES®60Classic
busbar adapter 25 A
2 adjustable mounting rails
45 x 260, with leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32665000A
component support
without electrical connection, 1 adjustable mounting rail
45 x 160
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32676000A
EQUES®CrossBoard
adapter 25 A
1 adjustable mounting rail, with leads AWG 12 (4 mm²)
45 x 160
More

32430000
EQUES®60Classic
busbar adapter 25 A
1 adjustable mounting rail
45 x 200, with leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32684000A
EQUES®CrossBoard
adapter 32 A
1 adjustable mounting rail, with leads AWG 10 (6 mm²)
45 x 160
More

32692000A
EQUES®CrossBoard
adapter 45 A
1 adjustable mounting rail, with leads AWG 8 (10 mm²)
45 x 160
More

32686000A
EQUES®CrossBoard
adapter 32 A
1 adjustable mounting rail, with leads AWG 10 (6 mm²) 160 mm long,  for devices with spring terminal technology
45 x 160
More

32668000A
EQUES®CrossBoard
adapter 16 A
1 adjustable mounting rail, with leads AWG 14 (2.5 mm²)
45 x 160
More

32669000A
EQUES®CrossBoard
adapter 16 A
1 adjustable mounting rail, with leads AWG 14 (2.5 mm²) 160 mm long,  for devices with spring terminal technology
45 x 160
More

https://pim.woehner.de/EN/INT/1000043726
