mounting rail 45 mm (32947)

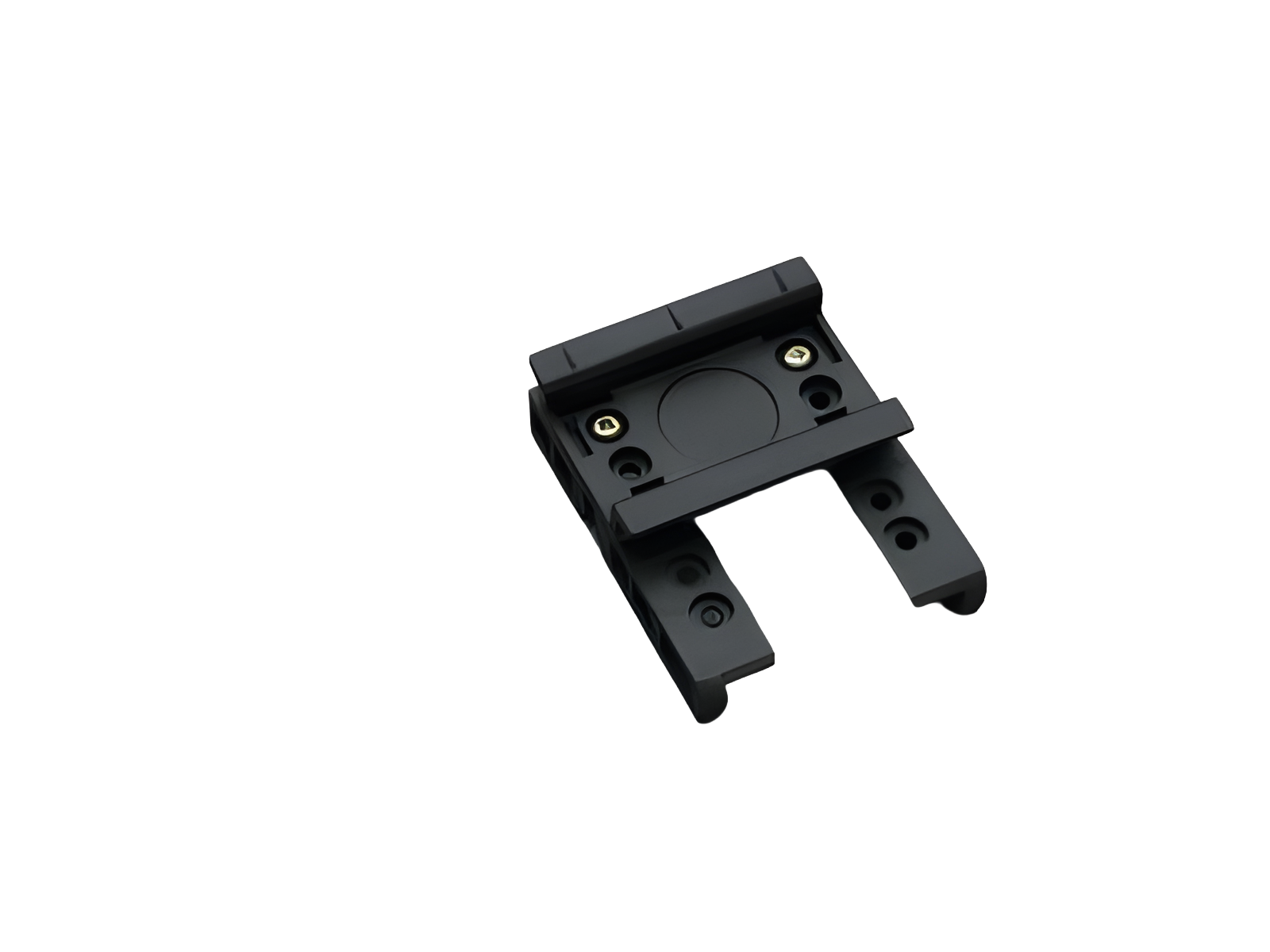

The picture may show a similar product.

Description

Part No.: 32947000

mounting rail 45 mm

for busbar adapters

System

CrossBoard® 125A / 250A, CrossBoard® 800 A, 60Classic

Product group 05
Subgroup 57
pack size 10
EAN 4021267329471
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC000212
ETIM 5.0 EC001285

Approvals

Standards

IEC 61439-1:2020

UL 508

Approvals

CSA , UL , DNV GL

for UL feeder circuits >250V

type number: TS35-L

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Details UL
Standards
UL 508
for UL feeder circuits >250V
Mechanical data
weight: 1,4 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit
for UL feeder circuits >250V
