insulator (05802)

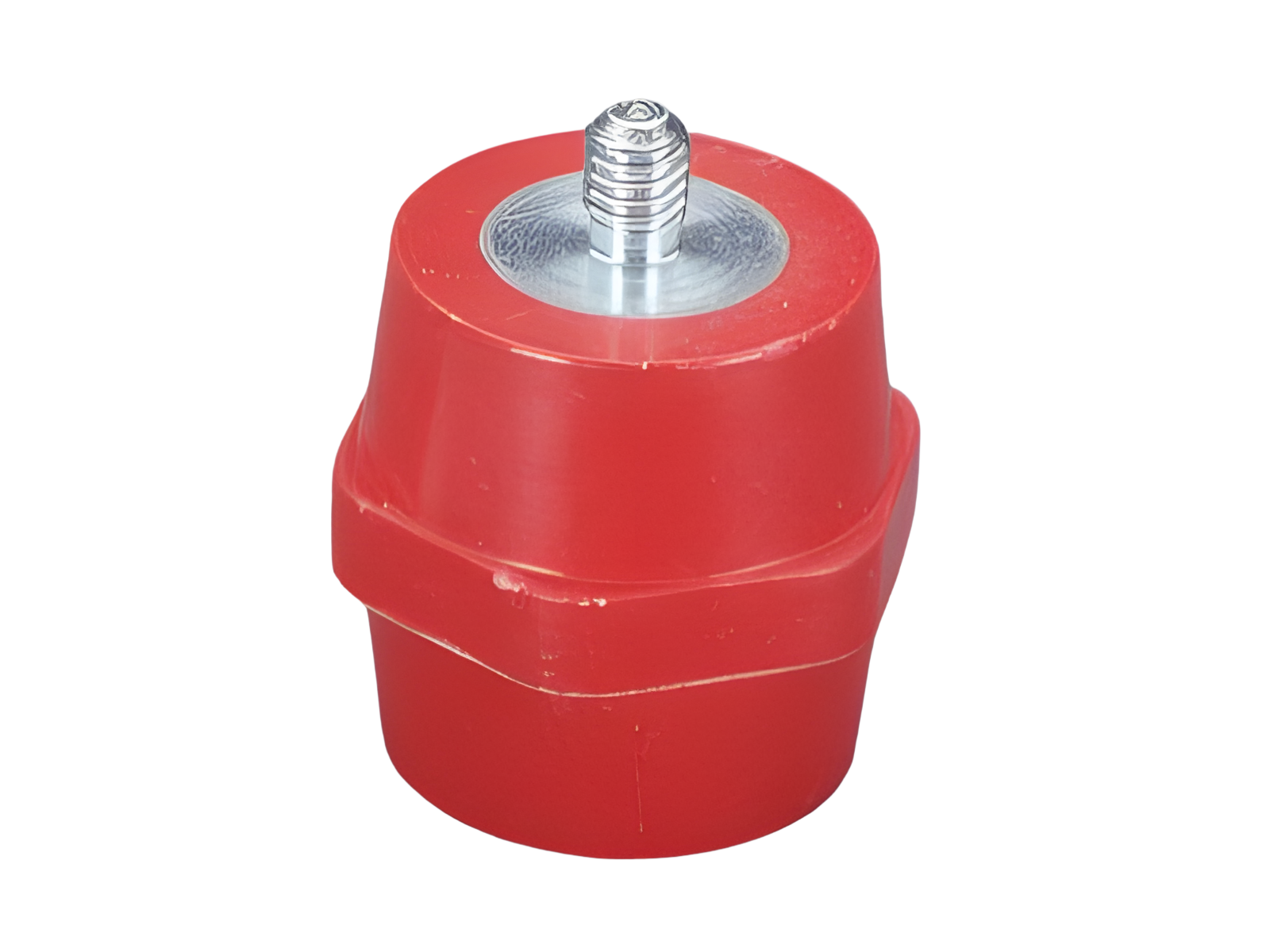

The picture may show a similar product.

Description

Part No.: 05802000

insulator

with female thread and threaded bolt, length across flats 32

M8 x 35

Product group	06
Subgroup	89

pack size	20
EAN	4021267058029

catalog page

2020 : 7.17

ECLASS 6.1	27400607
ECLASS 7.1	27400607
ETIM 4.0	EC001166
ETIM 5.0	EC001166

Approvals

Standards

IEC 61439-1:2011

Approvals

EAC

EAC Type: IS

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2011

Electrical data IEC
rated voltage (IEC) AC:	1500 V

rated voltage (IEC) DC:

1500 V

short-circuit withstandability:

no data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
W x H x D:	35 x 35 x 35
weight:	8.2 kg/100

Terminal points
female thread and threaded bolt M8

Reference

The installation of the insulator is required on a flat surface on both sides. The fixing screw must be fixed on both surfaces.
The installation on a non-flat mounting surface leads to inadmissible tensions which could cause damages to the insulator.

Links

Article master data, overviews and prices

Current metal surcharges

Downloads

| General technical information

| CAD symbol 2D DXF

| Dimensioned drawing

| Data sheet

| EU declaration of conformity

| Declaration of conformity UKCA

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)
