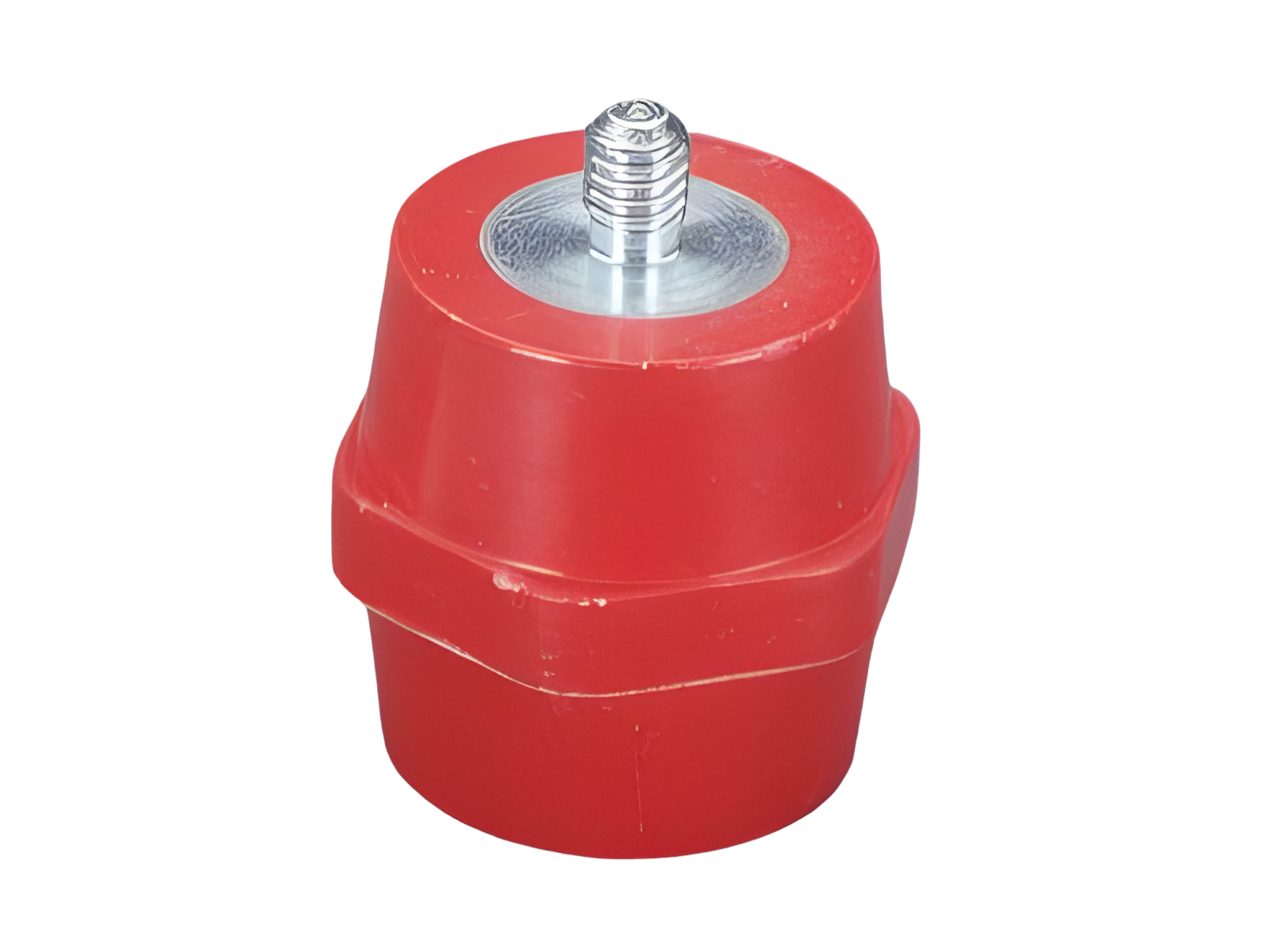

insulator (05802)

The picture may show a similar product.

Description

Part No.: 05802000

insulator

with female thread and threaded bolt, length across flats 32

M8 x 35

Product group 06
Subgroup 89
pack size 20
EAN 4021267058029
ECLASS 6.1 27400607
ECLASS 7.1 27400607
ETIM 4.0 EC001166
ETIM 5.0 EC001166

Approvals

Standards

IEC 61439-1:2020

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Electrical data IEC
rated voltage (IEC) AC: 1500 V
rated voltage (IEC) DC: 1500 V

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
W x H x D: 35 x 35 x 35
weight: 8.2 kg/100
Terminal points
female thread and threaded bolt
M8

Application notes

Reference

The installation of the insulator is required on a flat surface on both sides. The fixing screw must be fixed on both surfaces.
The installation on a non-flat mounting surface leads to inadmissible tensions which could cause damages to the insulator.
short-circuit withstandability: no data
