adapter 16 A (36009)

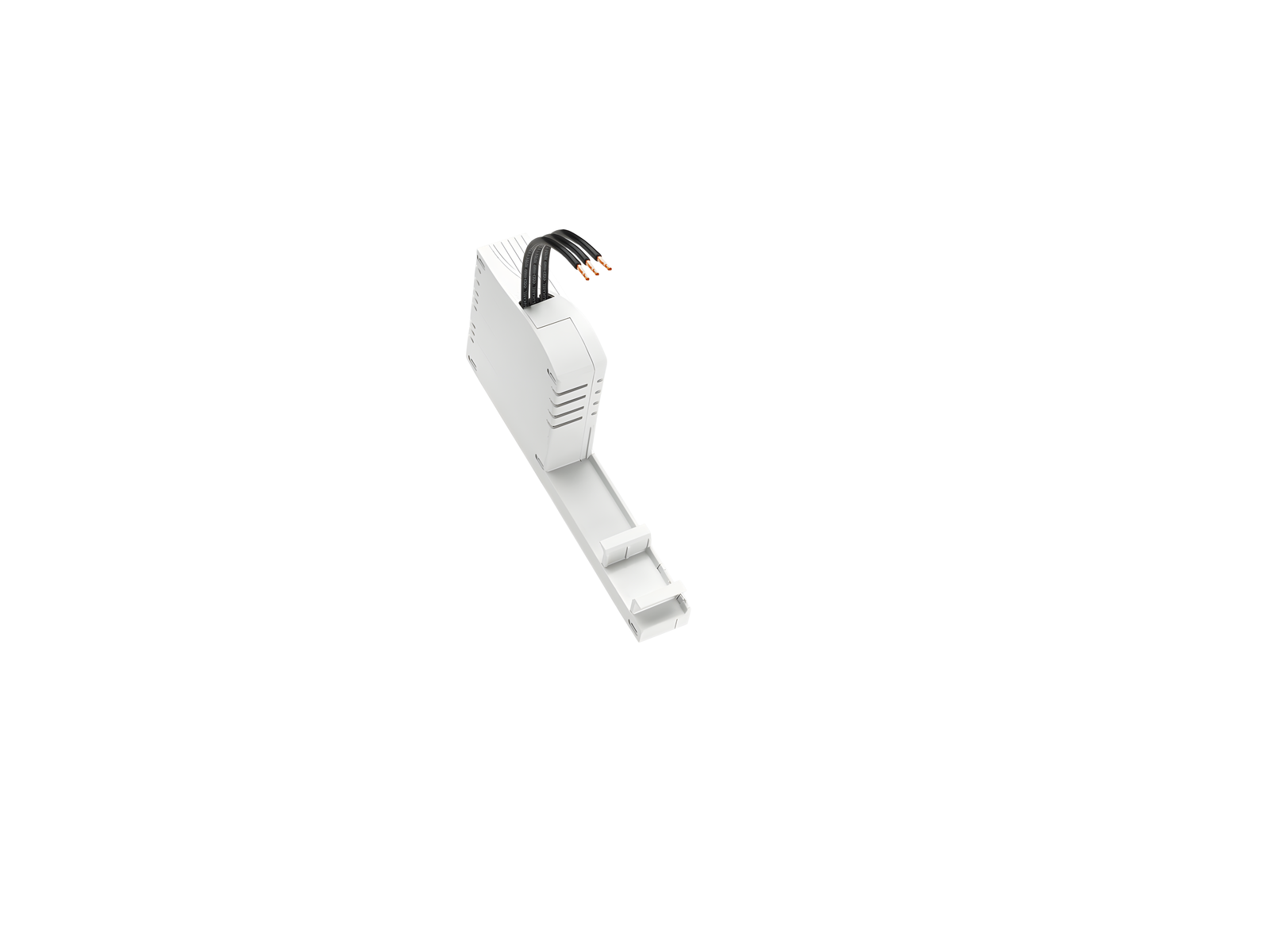

The picture may show a similar product.

Description

Part No.: 36009000A

EQUES®CrossBoard

adapter 16 A

1 fixed mounting rail, with fuse-carrier 10x38 / Class CC

22.5 x 160, with leads AWG 14 (2.5 mm²)

System

CrossBoard® 125A / 250A, CrossBoard® 800 A

Advantages of the product

Leitungsenden ultraschallverdichtet.

Product group 05
Subgroup 21
pack size 1
EAN 4021267360092
ECLASS 6.1 27370304
ECLASS 7.1 27370304
ETIM 4.0 EC001531
ETIM 5.0 EC001531

Approvals

Standards

IEC 61439-1:2020

UL 508

Approvals

IEC (CB) , UL

for UL feeder circuits >250V

type number: EQ22-A1

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Electrical data IEC
rated current (IEC): 16 A
rated voltage (IEC) AC: 690 V
rated isolation voltage Ui AC: 800 V
rated surge voltage Uimp : 6 kV

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 2.6 W.

(The power dissipation at full load would be 4.0 W.)

Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.
max. permitted voltage (IEC) AC: 725 V
Details UL
Standards
UL 508
for UL feeder circuits >250V
Electrical data UL
rated current (UL): 12.5 A
rated voltage (UL) AC: 600 V
rated frequency (UL): 50 / 60 Hz
SCCR unprotected max.: 6 kA
3 cycles (without OPD) @ 600 V AC
SCCR protected max.: 50 kA
with JDDZ fuse Class CC 20 A / 600 V AC
Mechanical data
W x H x D: 22.5 x 160 x 85
weight: 12.9 kg/100
poles: 3-pole

Application notes

Reference

Cylindric fuses are not included

You find here recommended fuses
for UL feeder circuits >250V

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)
