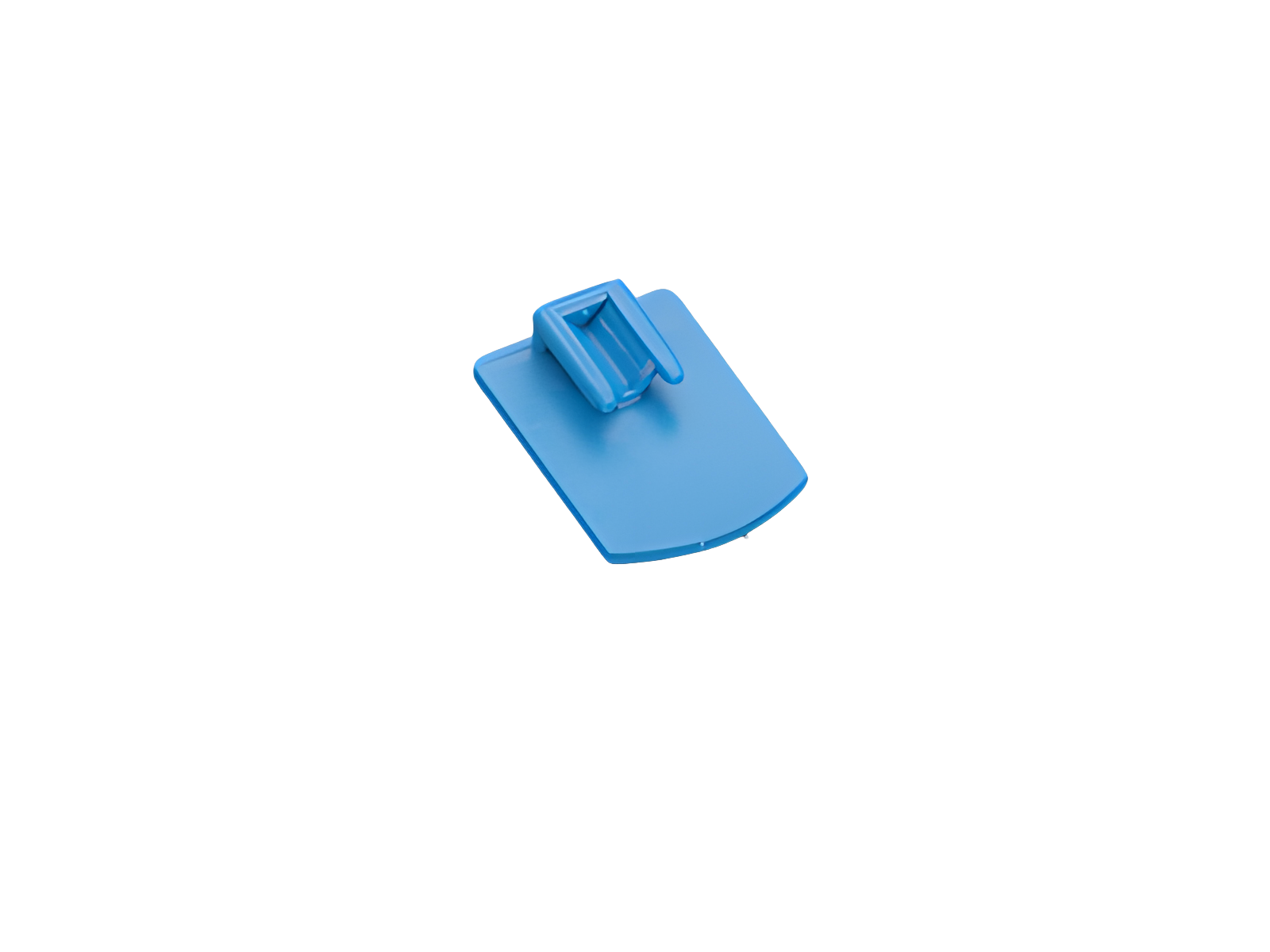

mounting rail end stop (32969)

The picture may show a similar product.

Description

Part No.: 32969000

mounting rail end stop

System

60Classic

Product group 05
Subgroup 57
pack size 50
EAN 4021267329693
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 61439-1:2020

Approvals

for UL feeder circuits >250V

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
for UL feeder circuits >250V
Mechanical data
W x H x D: 1 x 10 x 15
weight: 0.1 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit
for UL feeder circuits >250V

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

32420000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
45 x 200, with removable upper section, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32478000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
54 x 200, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32425000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
45 x 260, with removable upper section, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32484000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
45 x 260, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32421000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
54 x 200, with removable upper section, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32426000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
54 x 260, with removable upper section, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32485000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
54 x 260, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32477000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
45 x 200, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32402000
EQUES®60Classic
busbar adapter 25 A
2 adjustable mounting rails
45 x 260, with removable upper section and leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32408000
EQUES®60Classic
busbar adapter 32 A
2 adjustable mounting rails
54 x 260, with removable upper section and leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32412000
EQUES®60Classic
busbar adapter 45 A
2 adjustable mounting rails
54 x 200, with removable upper section and leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32436000
EQUES®60Classic
busbar adapter 25 A
2 adjustable mounting rails
45 x 200, with screw terminals 6mm² from rear
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32467000
EQUES®60Classic
busbar adapter 80 A
2 adjustable mounting rails
54 x 200, without leads, with terminals 16 mm², operated from behind
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

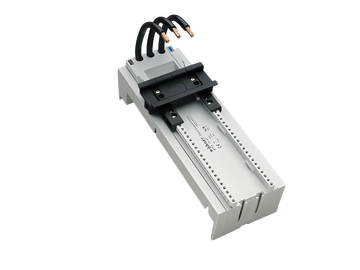

32457000
EQUES®60Classic
busbar adapter 63 A
1 adjustable mounting rail
72 x 200, with leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32455000
EQUES®60Classic
busbar adapter 63 A
2 adjustable mounting rails
54 x 200, with leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32400000
EQUES®60Classic
busbar adapter 25 A
2 adjustable mounting rails
45 x 200, with removable upper section and leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32487000
EQUES®60Classic
busbar adapter 32 A
2 adjustable mounting rails
45 x 260, without leads, with spring terminals 1.5 - 6 mm² from front
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32469000
EQUES®60Classic
busbar adapter 80 A
1 adjustable mounting rail
72 x 200, without leads, with terminals 16 mm², operated from behind
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32416000
EQUES®60Classic
busbar adapter 45 A
2 adjustable mounting rails
54 x 260, with removable upper section and leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32486000
EQUES®60Classic
busbar adapter 32 A
1 adjustable mounting rail
45 x 200, without leads, with spring terminals 1.5 - 6 mm² from front
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

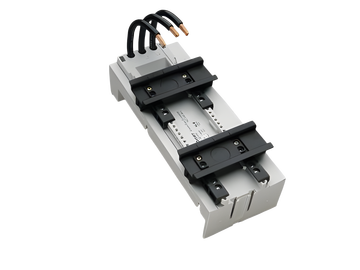

32459000
EQUES®60Classic
busbar adapter 63 A
2 adjustable mounting rails
81 x 200, with leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32464000
EQUES®60Classic
busbar adapter 80 A
1 adjustable mounting rail
54 x 200, without leads, with terminals 1.5 - 16 mm², front operated
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32454000
EQUES®60Classic
busbar adapter 63 A
1 adjustable mounting rail
54 x 200, with leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32466000
EQUES®60Classic
busbar adapter 80 A
1 adjustable mounting rail
54 x 200, without leads, with terminals 16 mm², operated from behind
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32439000
EQUES®60Classic
busbar adapter 25 A
2 adjustable mounting rails
45 x 260, with screw terminals 6mm² from rear
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32461000
EQUES®60Classic
busbar adapter 63 A
2 adjustable mounting rails
54 x 260, with leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32449000
EQUES®60Classic
busbar adapter 32 A
2 adjustable mounting rails
54 x 260, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32444000
EQUES®60Classic
busbar adapter 32 A
1 adjustable mounting rail
72 x 200, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

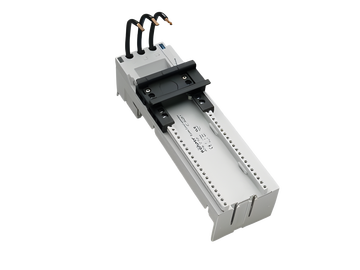

32443000
EQUES®60Classic
busbar adapter 32 A
1 adjustable mounting rail
63 x 200, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32442000
EQUES®60Classic
busbar adapter 32 A
2 adjustable mounting rails
54 x 200, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

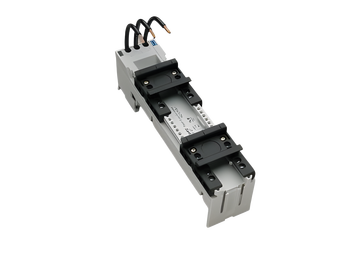

32431000
EQUES®60Classic
busbar adapter 25 A
2 adjustable mounting rails
45 x 200, with leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32636000
EQUES®60Classic
busbar component support
1 adjustable mounting rail and 1 positioner for Siemens S00 and S0
45 x 260, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32635000
EQUES®60Classic
busbar component support
1 adjustable mounting rail and 1 positioner for Siemens S00
45 x 200, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

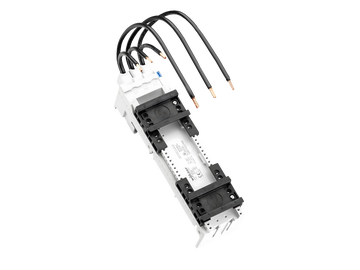

32598000
EQUES®60Classic
busbar adapter 80 A
2 adjustable mounting rails
54 x 200, with twin cables AWG10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32472000
EQUES®60Classic
busbar adapter 80 A
2 adjustable mounting rails
54 x 260, without leads, with terminals 16 mm², operated from behind
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32465000
EQUES®60Classic
busbar adapter 80 A
2 adjustable mounting rails
54 x 260, without leads, with terminals 1.5 - 16 mm², front operated
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

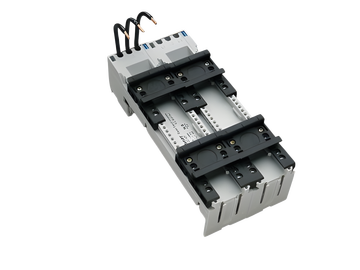

32432000
EQUES®60Classic
busbar adapter 25 A
2 adjustable mounting rails
90 x 200, with leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32404000
EQUES®60Classic
busbar adapter 32 A
2 adjustable mounting rails
54 x 200, with removable upper section and leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32655000
EQUES®60Classic
busbar adapter 32 A
1 adjustable mounting rail
45 x 200, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32401000
EQUES®60Classic
busbar adapter 16 A
for direct starter Allen-Bradley 140M-RC2E, Eaton PKZM0, Siemens S00, Schneider Electric GV2 with spring terminals
45 x 200, with removable upper section and leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32433000
EQUES®60Classic
busbar adapter 25 A
2 adjustable mounting rails
45 x 260, with leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32441000
EQUES®60Classic
busbar adapter 32 A
1 adjustable mounting rail
54 x 200, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32430000
EQUES®60Classic
busbar adapter 25 A
1 adjustable mounting rail
45 x 200, with leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
