for UL feeder circuits >250V
The picture may show a similar product.
Part No.: 31260000A
D0 switch-disconnector-fuse, for 3-pole busbar system
for D01 and D02 fuses
E18 / 63 A / 3P
operator independent switching (snap-action mechanism)
connection bottom
coming soon
System
CrossBoard® 125A / 250A
Advantages of the product
spring terminal enables connection without tools (at first installation)
| Product group | 01 |
| Subgroup | 51 |
| pack size | 1 |
| EAN | 4021267312602 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Approvals
IEC (CB) , VDE , CCC
| for fuse links size: | D0 |
| fuse links acc. to standard: | IEC / HD 60269-3 |
| permitted power dissipation of the fuse-link: | 5.5 W |
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| Rated current (IEC): | 35 A |
| rated voltage (IEC) AC: | 400 V |
| rated isolation voltage Ui AC: | 500 V |
| rated surge voltage Uimp : | 6 kV |
| Utilisation category AC (IEC 60947-3) : | AC-22B (400 V) |
| cond. short-circuit current with fuses (AC): | 50 kA / 400 V |
| approved wth fuse links of operation class: | gG |
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |

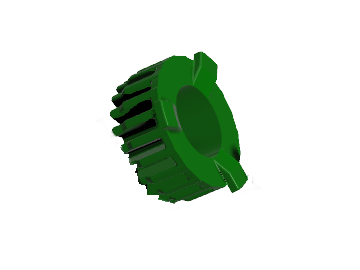

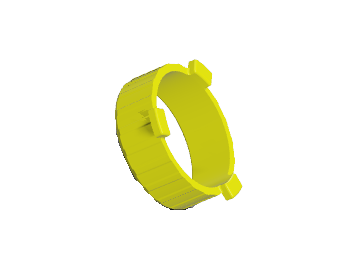

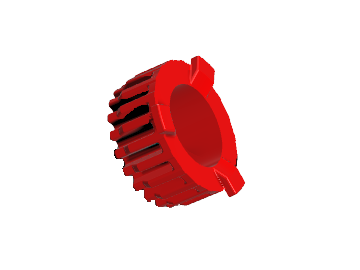

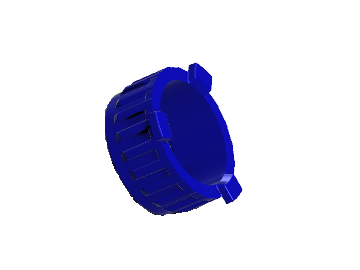

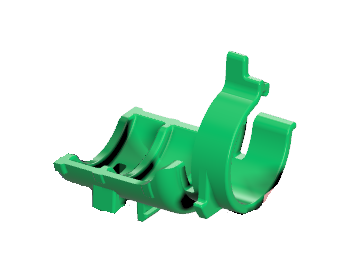

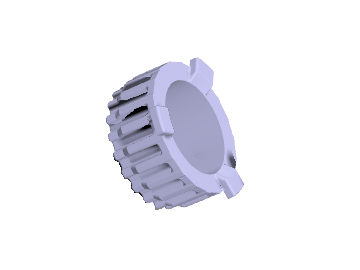

| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| for fuse links and gauge elements acc. to IEC / HD 60269-3 use of D02 fuse links with silver plated caps is recommended |
|
The function of isolation between incoming and outgoing contacts is provided by the opening of the switching mechanism as required in the standard. |
| Mechanical data | |
| W x H x D: | 22.5 x 184 x 100 |
| weight: | 33.0 kg/100 |
| poles: | 3-pole |
| front degree of protection: | IP20 |
Befestigungsart: Patentierter Rastmechanismus
| Terminal points | |
| spring pulley connection | |
| screw drive: | 0,8x4 |
| wire stripping: | 12 mm |
| min. cross-section: | 1.5 mm² |
| max. cross-section: | 16 mm² |
| re: | 1.5 - 16 mm² |
| rm: | 1.5 - 16 mm² |
| rm + AE: | 1,5 - 16 mm² |
| f: | 1.5 - 16 mm² |
| f + AE: | 1.5 - 16 mm² |
| (f + AE may not fit with max. cross-section) | |
| Not suitable for aluminium cables ! | |
|
1,5 - 16 mm² round stranded and flexible without wire-end ferrule |
|
| Not suitable for aluminium cables ! | |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
| permitted power dissipation of the fuse-link: | 5.5 W |
