for UL feeder circuits >250V
The picture may show a similar product.
Part No.: 31260 000A
SECUR®Crossboard
switch-disconnector-fuse
for D01 and D02 fuses
35 A / 3P
indication (LED) of a tripped fuse link
operator independent switching (snap-action mechanism)
connection bottom
NEW
System
CrossBoard® 125A / 250A, CrossBoard® 800 A
Advantages of the product
spring terminal enables connection without tools (at first installation)
| Product group | 01 |
| Subgroup | 51 |
| pack size | 1 |
| EAN | 4021267312602 |
| ECLASS 6.1 | 27142110 |
| ECLASS 7.1 | 27142110 |
| ETIM 4.0 | EC000277 |
| ETIM 5.0 | EC000277 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Approvals
IEC (CB) , VDE
| for fuse links size: | D0 |
| fuse links acc. to standard: | IEC / HD 60269-3 |
| permitted power dissipation of the fuse-link: | 4 W |
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| rated current (IEC): | 35 A |
| rated voltage (IEC) AC: | 400 V |
| rated isolation voltage Ui AC: | 500 V |
| rated surge voltage Uimp : | 6 kV |
| Utilisation category AC (IEC 60947-3) : | AC-22B (400 V) |
| cond. short-circuit current with fuses (AC): | 50 kA / 400 V |
| approved wth fuse links of operation class: | gG |
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
The function of isolation between incoming and outgoing contacts is provided by the opening of the switching mechanism as required in the standard. |
| Mechanical data | |
| W x H x D: | 22.5 x 184 x 100 |
| weight: | 33,0 kg/100 |
| poles: | 3-pole |
| front degree of protection: | IP30 |
| Terminal points | |
| spring pulley connection | |
| screw drive: | 0,8x4 |
| wire stripping: | 23 mm |
| min. cross-section: | 2,5 mm² |
| max. cross-section: | 16 mm² |
| f: | 2.5 - 16 mm² |
| Not suitable for aluminium cables ! | |
| Not suitable for aluminium cables ! | |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
| permitted power dissipation of the fuse-link: | 4 W |
31976
000A
pilot switch
changeover 250 V AC / 5 A, 30 V DC / 4 A
More
31318
000A

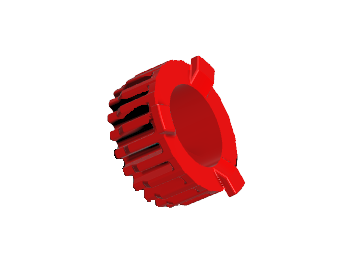

special gauge element 10 A
red
for fuse links D01
NEW
More
31319
000A

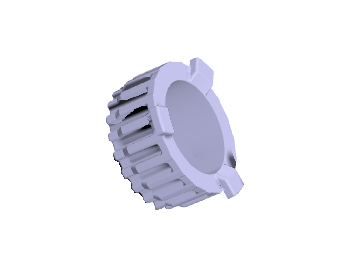

special gauge element 16 A
grey
for fuse links D01
NEW
More
31317
000A

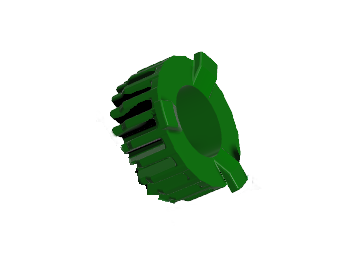

special gauge element 2 - 6 A
green
for fuse links D01
NEW
More
31346
000A

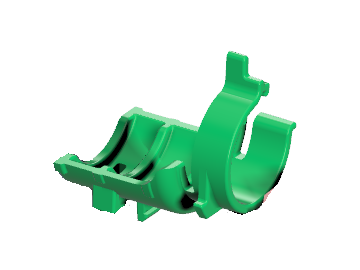

mounting bracket for special gauge element 2 - 16 A
NEW
More
31321
000A

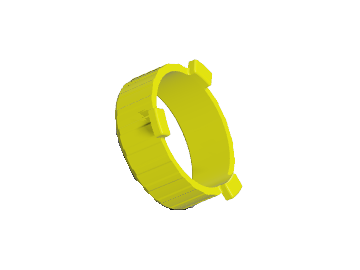

special gauge element 25 A
yellow
for fuse links D02
NEW
More
31320
000A

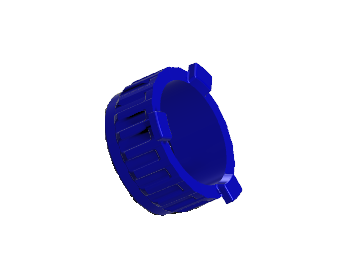

special gauge element 20 A
