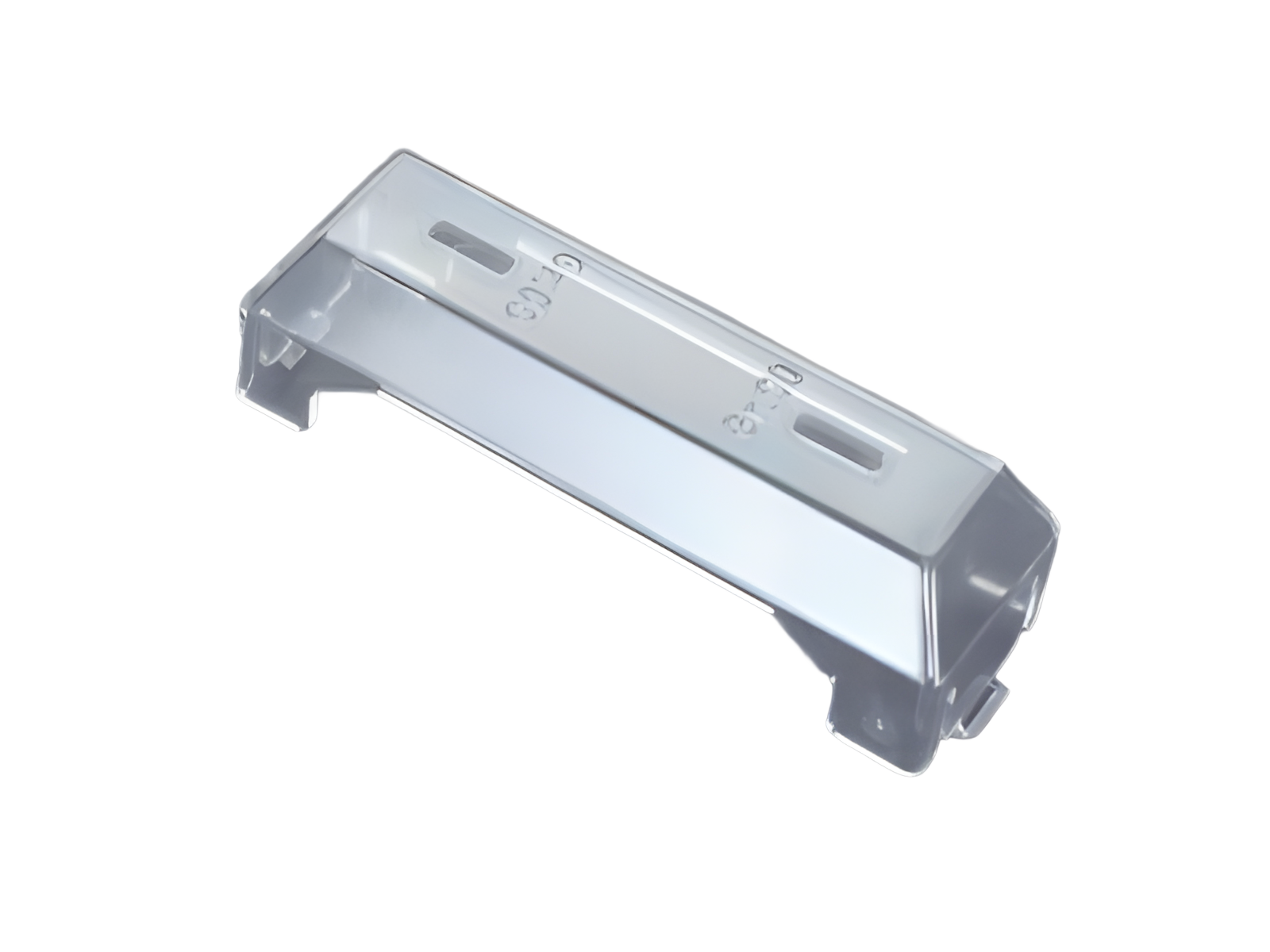

grip lug cover (79448)

The picture may show a similar product.

Description

Part No.: 79448000

grip lug cover

for NH base and 33705

NH 00

System

60Classic, 100Energy

Product group 10
Subgroup 66
pack size 30
EAN 4021267794484
ECLASS 6.1 27149217
ECLASS 7.1 27149217
ETIM 4.0 EC001660
ETIM 5.0 EC001660

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016

Technical data

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016
Mechanical data
W x H x D: 30 x 94 x 30
weight: 1.2 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)
