Part No.: 01610 000

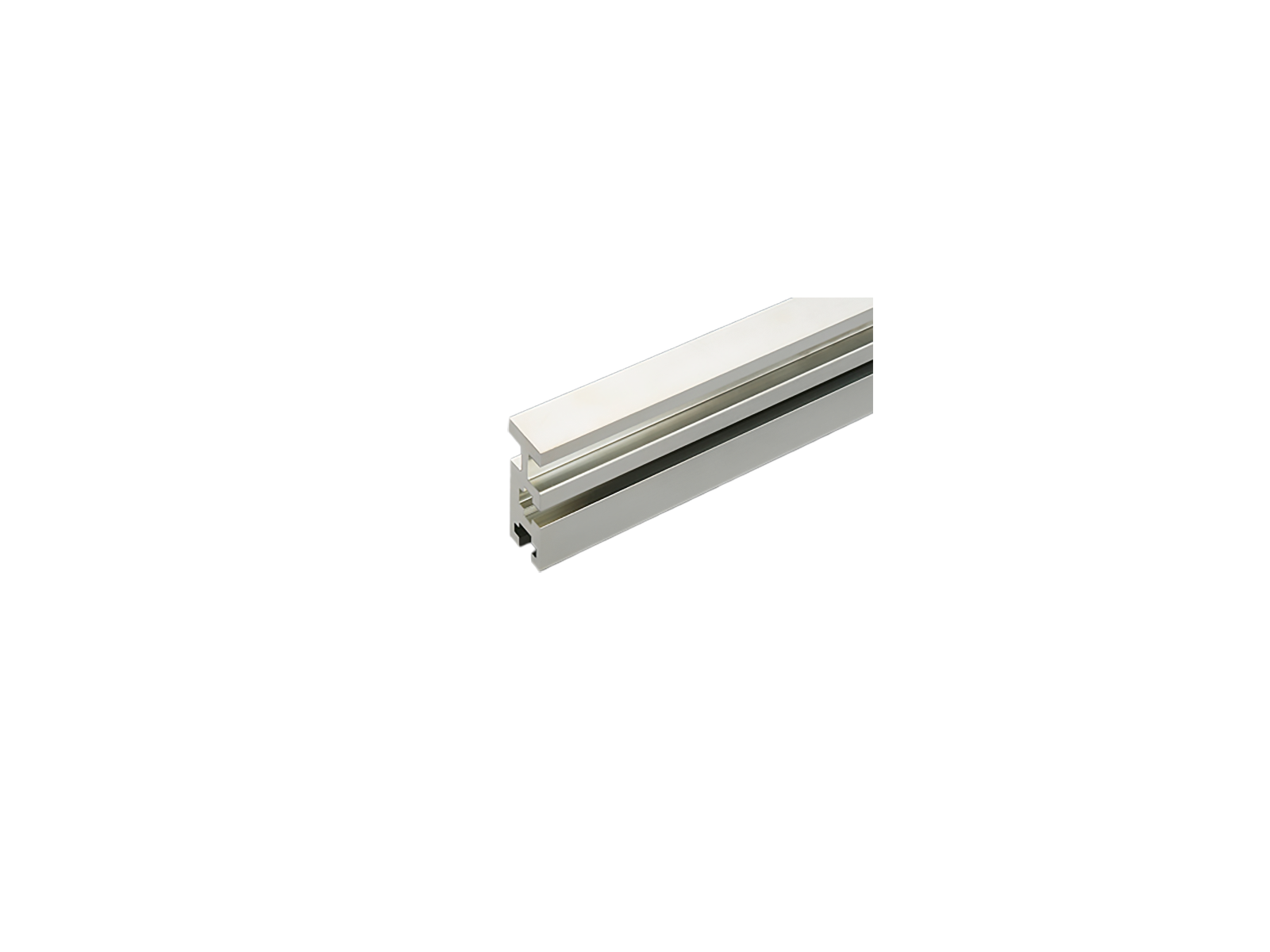

přípojnice profilu TCC 1600 mm²
material: copper Cu-ETP (No. CW004A) acc. to EN 13601 (99.9% copper), strength class R300 (300 N/mm²)
délka 2,40 m, pocínovaná
System
60Classic, centre feed unit
Advantages of the product
Tin-plated Cu busbars considerably reduce the effort of preparing the contact points.
The Cu busbars are effective protected against aggressive media.
| Produktová skupina | 06 |
| Podskupina | 92 |
| velikost balení | 1 |
| EAN | 4021267016104 |
| ECLASS 14.0 | 27370303 |
| ETIM 5.0 | EC001522 |
| ETIM 8.0 | EC001522 |
| ETIM 10.0 | EC001522 |
Standardy
IEC 61439-1:2020
EAC Type: BB-P
CCC schválení: certifikace není vyžadována
| Detaily IEC | |
| Standardy | |
| IEC 61439-1:2020 |
Elektrické údaje
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 160,6 W.
(The power dissipation at full load would be 251,0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| current at 55 K: | 2800 A |
| min. permitted operation temperature | -40°C |
| diagram current capacity (IEC) |
| Mechanické údaje | |
| Š x V x H: | 2400 x 30 x 90 |
| hmotnost: | 3416,0 kg/100 |
| cross-section: | 1 600 mm² |
Edge radius 0.5
| Vlastnosti materiálu | |
| halogen-free: | Yes |
| Please respect the insulation characteristics of the busbar support for your application. | |
|
see product description of the used busbar support |
|
01379
000

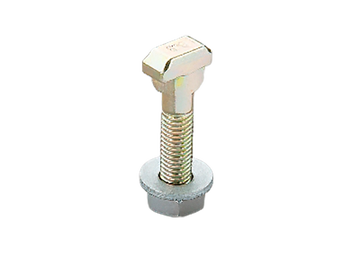

závitová svorka s maticí a pružinovou podložkou, pro přípojnice profilu TCC
M10 x 45
pro následnou montáž
pro přípojnici: profil TCC
