订货号 33409 000

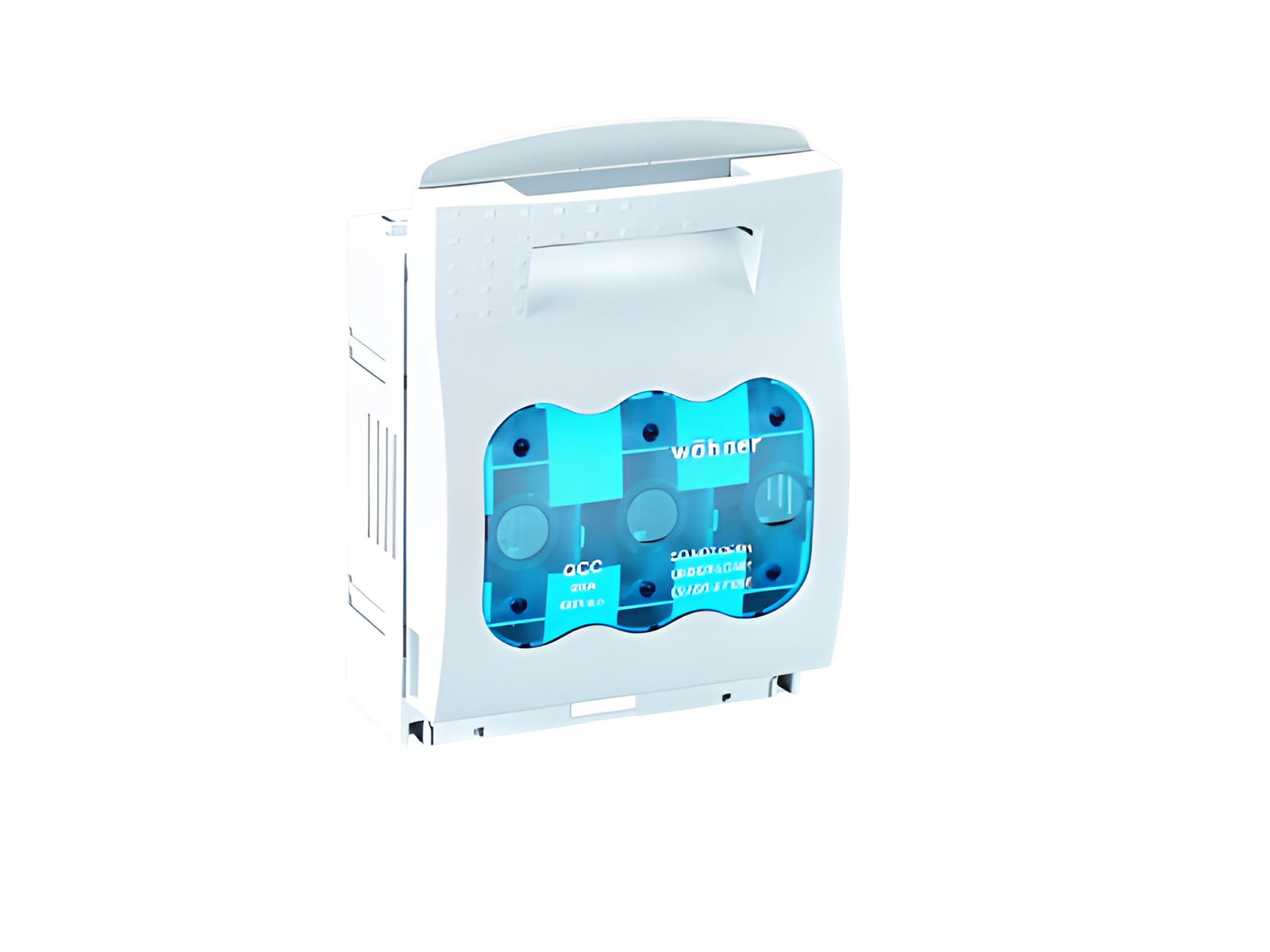

QUADRON®Panel
圆筒形帽熔断器座
Class J 级 / 3 极，连接端子 150 mm²
200 A / 600 V (41x146)
for mounting plate
系统
Panel
| 产品组 | 16 |
分组 |
12 |
| 包装件数 | 1 |
| EAN | 4021267334093 |
| ECLASS 6.1 | 27142190 |
| ECLASS 7.1 | 27142190 |
| ETIM 4.0 | EC002705 |
| ETIM 5.0 | EC002705 |
标准
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system H
UL 4248-8
UL 4248-1
认证许可
UL
for UL feeder circuits >250V
型号: QCC-ClassJ200A
UL 文件: E230163, UL 类别 (适用美国) : IZLT2 https://www.ul.com
UL 文件: E230163, UL 类别 (适用加拿大) : IZLT8 https://www.ul.com
| for fuse links size: | Class J 200 A |
| fuse links acc. to standard: | UL 248-8 |
| 所使用熔断器的允许损耗功率: | 22 W |
| Details IEC | |
| 标准 | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016, Fuse system H |
电气数值
功率输出:
The power dissipation at a typical load of 80 % results to 8.3 W.
(The power dissipation at full load would be 13.0 W.)
| 适用J级 熔断器 110 - 200A 符合 UL 248-8标准 (41x146) |
| Details UL | |
| 标准 | |
|
UL 4248-8
UL 4248-1 |
| for UL feeder circuits >250V | |
| suitable for field-installed conductors |
| Electrical data UL | |
| 额定电流 (UL): | 200 A |
| 额定电压 (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| 额定电压 (UL) DC: | 600 V |
| for wires UL: | Cu 75°C |
| SCCR: | 200 kA |
| 机械数值 | |

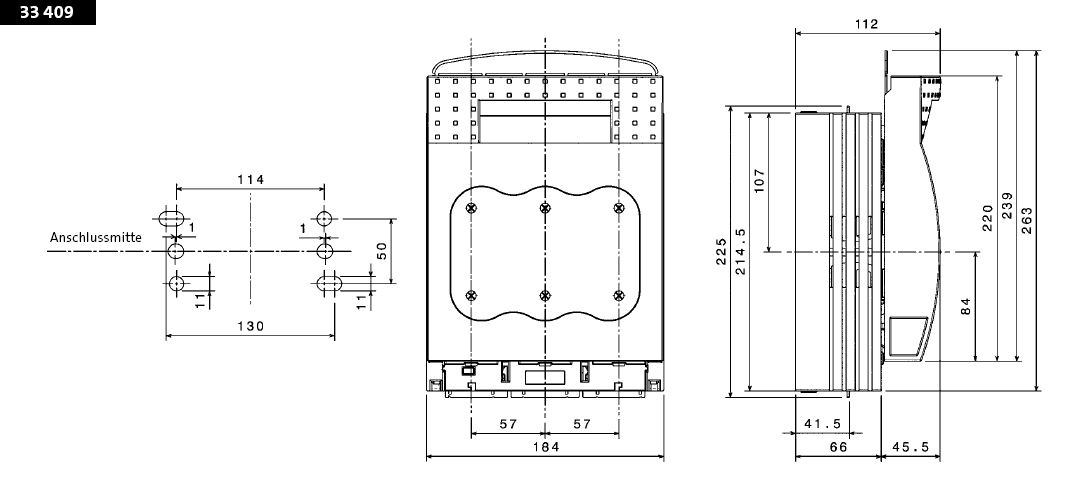

| 宽 x 高 x 厚: | 184 x 263 x 112 |
| 重量: | 203.0 kg/100 |
| 极数: | 3 极 |
| Mounting: | for mounting plate |
| 连接端 | |
| Not suitable for aluminium cables ! | |
| 最小横截面积: | AWG 2 |
| max. cross-section UL: | MCM 300 |
| for wires UL: | Cu 75°C |
|
AWG 2 - MCM 300 绞合导线(多股的), 适用 33, 6 - 152 mm² |
|
| Not suitable for aluminium cables ! | |
| 所使用熔断器的允许损耗功率: | 22 W |
| for UL feeder circuits >250V | |
33142
000
盖罩，适用于线鼻子，上端/下端插接
适用于: QCB-NH1, QCS-NH1, QCS-320
