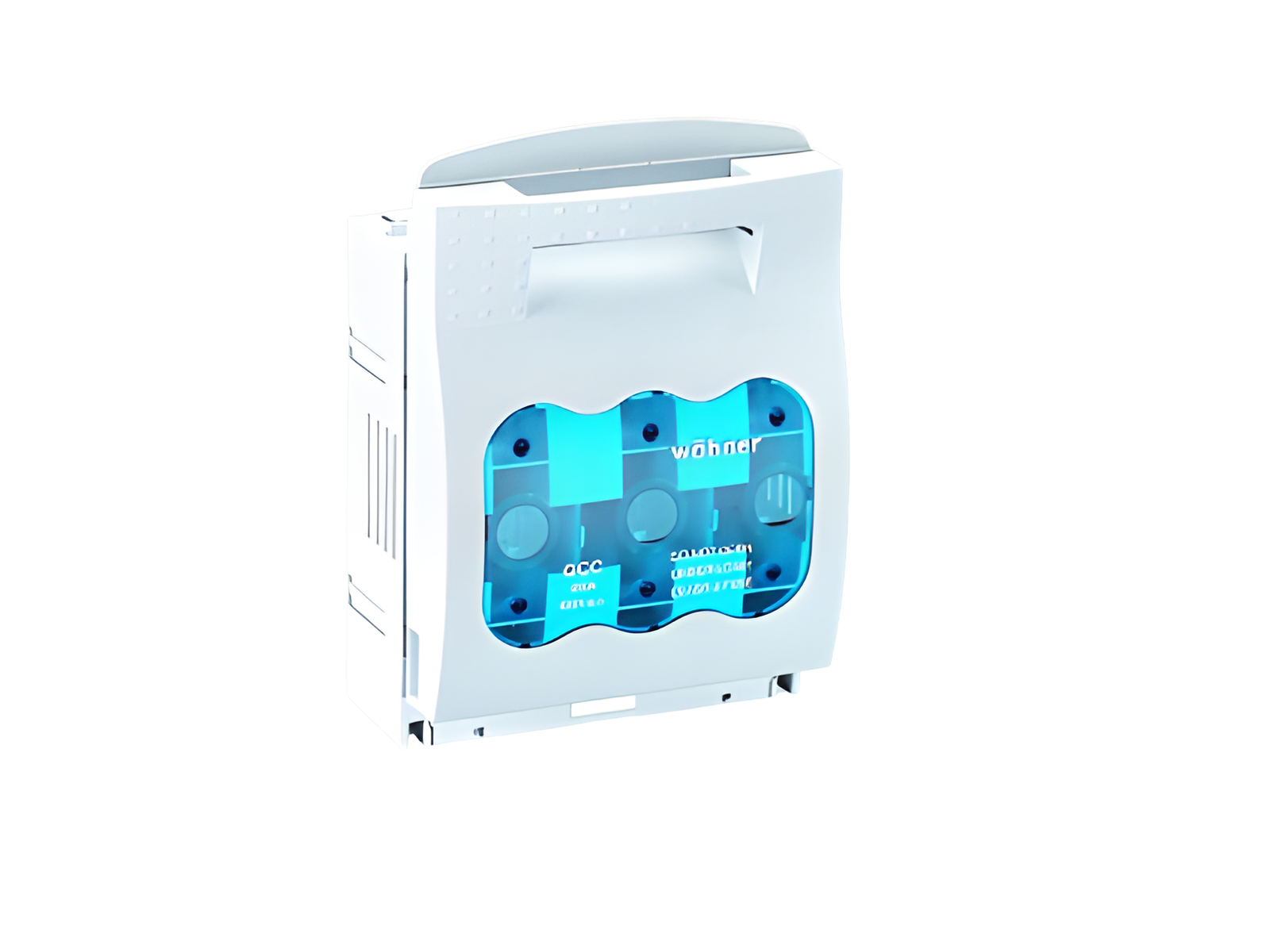

The picture may show a similar product.
Référence 33409 000
QUADRON®Panel
support pour fusibles cylindriques
Size Class J 200 A
Class J / 3P, borne 150 mm²
200 A / 600 V (41x146)
for mounting plate
Système
Panel
| Groupe de produits | 16 |
| Sous-groupe | 12 |
| Dimensions de l'emballage | 1 |
| EAN | 4021267334093 |
| ECLASS 6.1 | 27142190 |
| ECLASS 7.1 | 27142190 |
| ETIM 4.0 | EC002705 |
| ETIM 5.0 | EC002705 |
Normes
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system H
UL 4248-8
UL 4248-1
Approbations
UL
for UL feeder circuits >250V
Type: QCC-ClassJ200A
UL file: E230163, UL category (for USA): IZLT2 https://www.ul.com
UL file: E230163, UL category (for Canada): IZLT8 https://www.ul.com
| for fuse links size: | Class J 200 A |
| fuse links acc. to standard: | UL 248-8 |
| permitted power dissipation of the fuse-link: | 22 W |
| Details IEC | |
| Normes | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016, Fuse system H |
Charactéristiques électriques
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 8,3 W.
(The power dissipation at full load would be 13,0 W.)
| for Class J fuses 110 - 200A as per UL 248-8 (41x146) |
| Details UL | |
| Normes | |
|
UL 4248-8
UL 4248-1 |
| for UL feeder circuits >250V | |
| suitable for field-installed conductors |
| Electrical data UL | |
| rated current (UL): | 200 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| rated voltage (UL) DC: | 600 V |
| for wires UL: | Cu 75°C |
| Icc: | 200 kA |
| Charactéristiques mécaniques | |

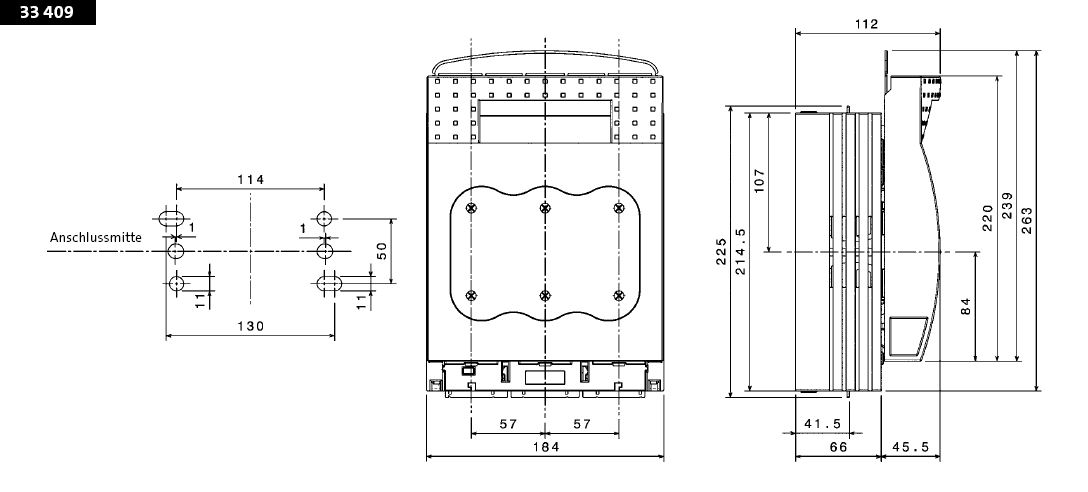

| L x H x P: | 184 x 263 x 112 |
| Poids: | 203,0 kg/100 |
| Pôles: | 3 pôles |
| Mounting: | for mounting plate |
| Points de raccordement | |
| Not suitable for aluminium cables ! | |
| min. cross-section UL: | AWG 2 |
| max. cross-section UL: | MCM 300 |
| for wires UL: | Cu 75°C |
|
AWG 2 - MCM 300 stranded, equivalent to 33,6 - 152mm² |
|
| Not suitable for aluminium cables ! | |
| permitted power dissipation of the fuse-link: | 22 W |
| for UL feeder circuits >250V | |
33142
000
cache pour cosses, raccordement en haut et en bas
pour: QCB-NH1, QCS-NH1, QCS-320
