módulo de conexão (01065)

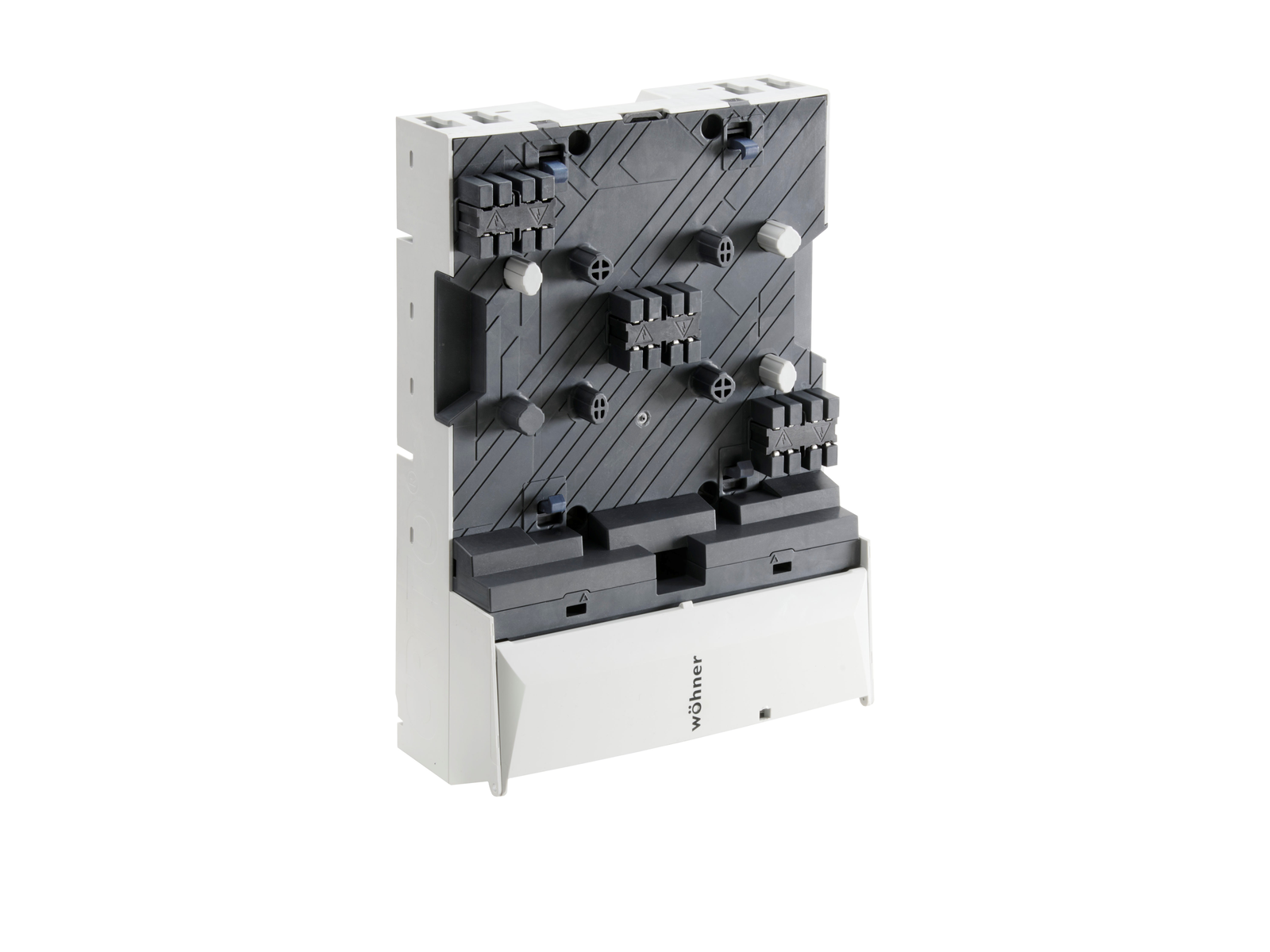

A imagem pode mostrar um produto similar.

Código da peça: 01065 000A

CRITO^®CrossBoard

módulo de conexão

300 mm², for rear feeding of the CrossBoard

3 polos

Conexão superior ou inferior

para CrossBoard 800 A 500 - 1100 mm

NEW

Sistema

CrossBoard® 800 A

Grupo de produto	07
Subgroup	51

Unidade por pacote	1
EAN	4021267010652

Standards

IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003

UL 508

Approvals

for UL feeder circuits >250V

Número de tipo: CR-B-200

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

Aprovação CCC: no certification required

Tensão nominal de isolamento:	800 V
Tensão suportável nominal de impulso Uimp:	6 kV

rated peak withstand current I_pk max.:	80 kA
Corrente nominal admissível de curta duração I_cw (1,0 s) max.:	30 kA

Dados adicionais IEC
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.

for UL feeder circuits >250V
suitable for field-installed conductors

SCCR:

65 kA with any DIVQ/7 circuit breaker 800 A / 480 V AC

front degree of protection:

IP20

pontos terminais
Prismenklemme
screw drive:	SW13
wire stripping:	45 mm
min. cross-section:	150 mm²
max. cross-section:	300 mm²
rm:	150 - 300 mm²
Md min.:	6,4 Nm
Md max.:	9,6 Nm
Not suitable for aluminium cables !

min. cross-section UL:	MCM 300
max. cross-section UL:	MCM 600
torque (UL):	71 lb-in
for wires UL:	Cu 75°C

Not suitable for aluminium cables !
The insulation performance of the article depends on the installation conditions.



for UL feeder circuits >250V

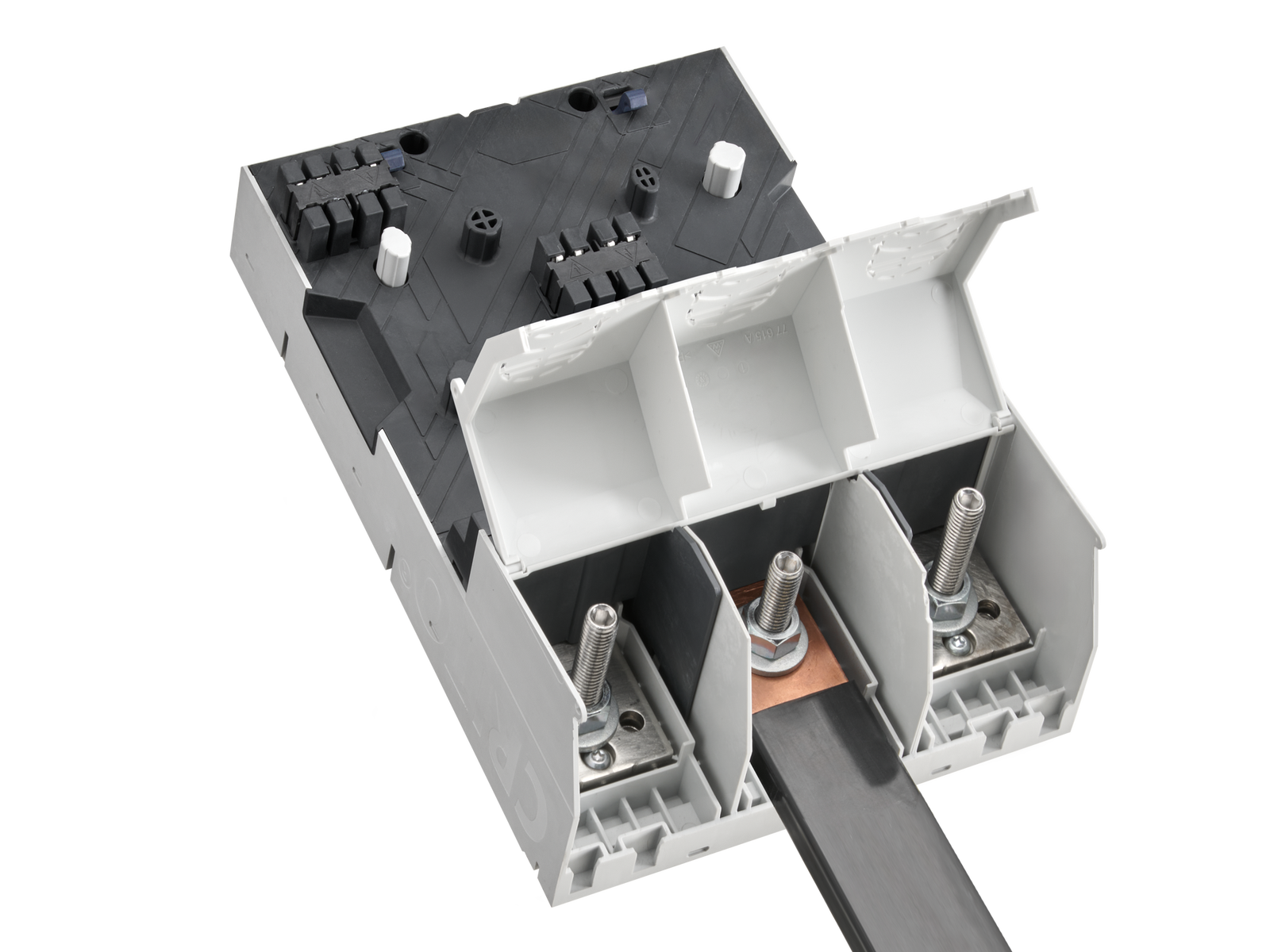

Connectable cross-sections: Prism clamp with laminated copper: 1x 10x 15.5… 24 mm x 0.8… 1.0 mm 2x 10x 15.5… 24 mm x 0.8… 1.0 mm Torque: 8 Nm, 71 lb-in Stripping lenght: 50 +/- 5 mm Rated current: 500 A Prism clamp with round wires: 150… 300 mm 300… 600 MCM Torque: 8 Nm, 71 lb-in Stripping length: 50 +/- 5 mm Rated current: 500 A Bolt connection with solid copper: 1x 10x 20… 40 mm x 1,0 mm 2x 10x 20… 40 mm x 1,0 mm Torque: 20 Nm, 177 lb-in Stripping length: 50 +/- 5 mm with whole (cf. mounting instruction) Rated current: 800 A
