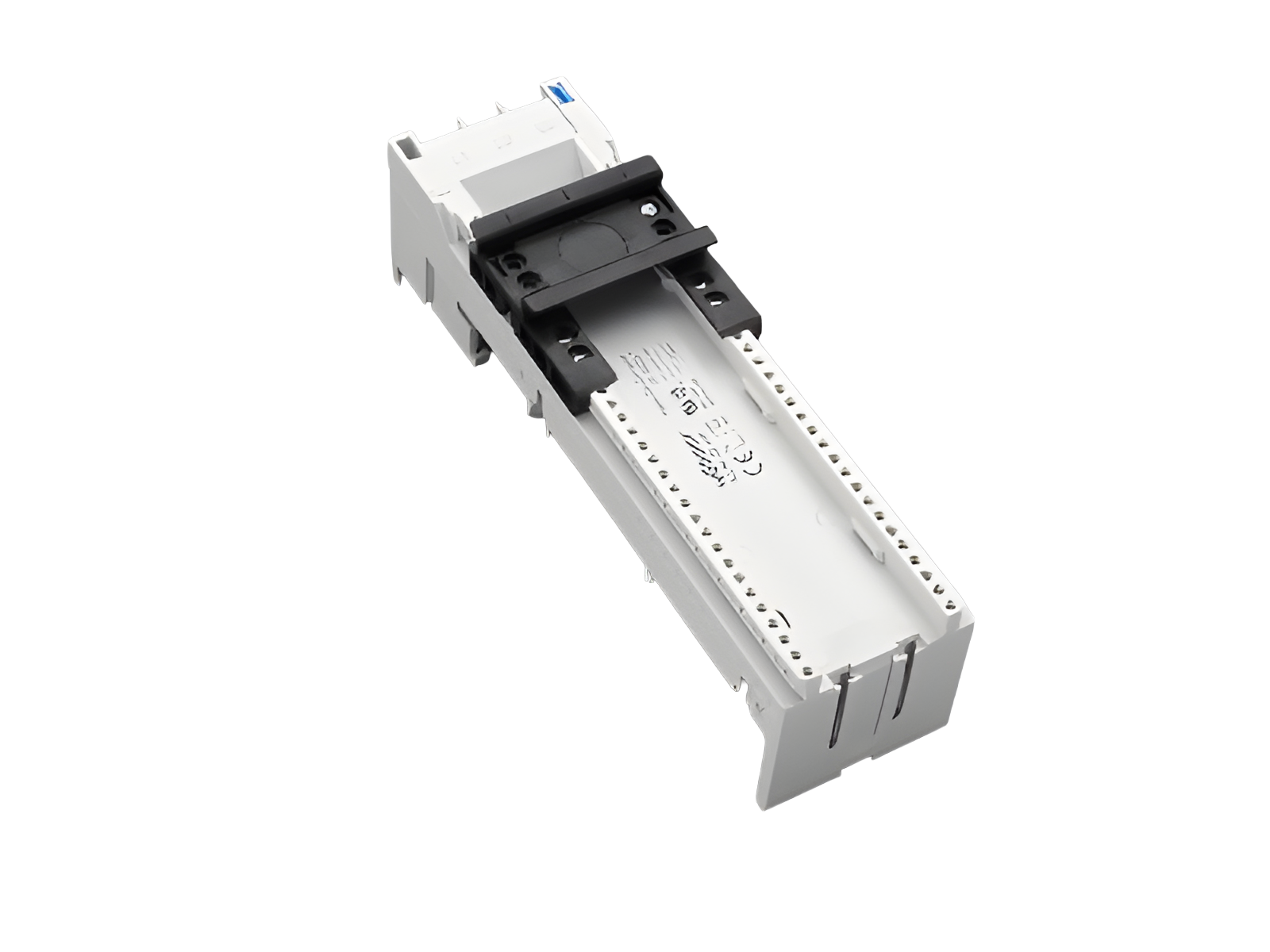

The picture may show a similar product.
Référence 32466000
EQUES®60Classic
adaptateur de jeu de barres, 80 A
1 rail DIN réglable
54 x 200, sans câble, avec bornes 16 mm², commande par l'arrière
pour jeux de barres 12, 15, 20, 25, 30 x 5, 10 et barres profilées
Système
60Classic
Groupe de produits | 05 |
Sous-groupe | 27 |
Dimensions de l'emballage | 4 |
EAN | 4021267324667 |
ECLASS 6.1 | 27370304 |
ECLASS 7.1 | 27370304 |
ETIM 4.0 | EC001531 |
ETIM 5.0 | EC001531 |
Normes
IEC 61439-1:2020
UL 508
Approbations
CSA , UL , DNV GL
for UL feeder circuits >250V
Type: EEC6080-L
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
Homologation CCC: no certification required
Details IEC | |
Normes | |
IEC 61439-1:2020 |
Electrical data IEC | |
Courant assigné (IEC): | 80 A |
Tension assignée (IEC) CA: | 690 V |
rated isolation voltage Ui AC: | 800 V |
Tension assignée de tenue aux chocs Uimp: | 6 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 6,0 W.
(The power dissipation at full load would be 9,3 W.)
Supplementary data IEC | |
Les valeurs suivantes ont été vérifiées par des tests sous certaines conditions. Veuillez demander ces conditions à Wöhner avant de concevoir votre armoire. |
Tension maximale IEC CC: | 800 V |
Details UL | |
Normes | |
UL 508 |
for UL feeder circuits >250V |
Electrical data UL | |
rated current (UL): | 80 A |
rated voltage (UL) AC: | 600 V |
rated frequency (UL): | 50 / 60 Hz |
SCCR unprotected max.: | 10 kA |
3 cycles (without OPD) @ 600 V AC | |
SCCR protected max.: | 100 kA |
with fuse Class CF, J or T 150 A / 600 V AC |
Charactéristiques mécaniques | |
L x H x P: | 54 x 200 x 63 |
Poids: | 37,3 kg/100 |
Pôles: | 3 pôles |
pour jeux de barres: | 12, 15, 20, 25, 30 x 5, 10 et barres profilées |
Points de raccordement | |
cage clamp connection | |
screw drive: | PZ2 |
wire stripping: | 11 mm |
min. cross-section: | 1,5 mm² |
max. cross-section: | 16 mm² |
Md min.: | 2,4 Nm |
Md max.: | 3,6 Nm |
There must be a clearance of at least 12 mm above the article to remove it from the busbar system. | |
Conseils |
for feeder circuits as per UL508a, accessory 32974 is required |
short-circuit withstandability: | the short-circuit capacity of the combination of adapter and motor starter depends on the motor starter |
for UL feeder circuits >250V |
