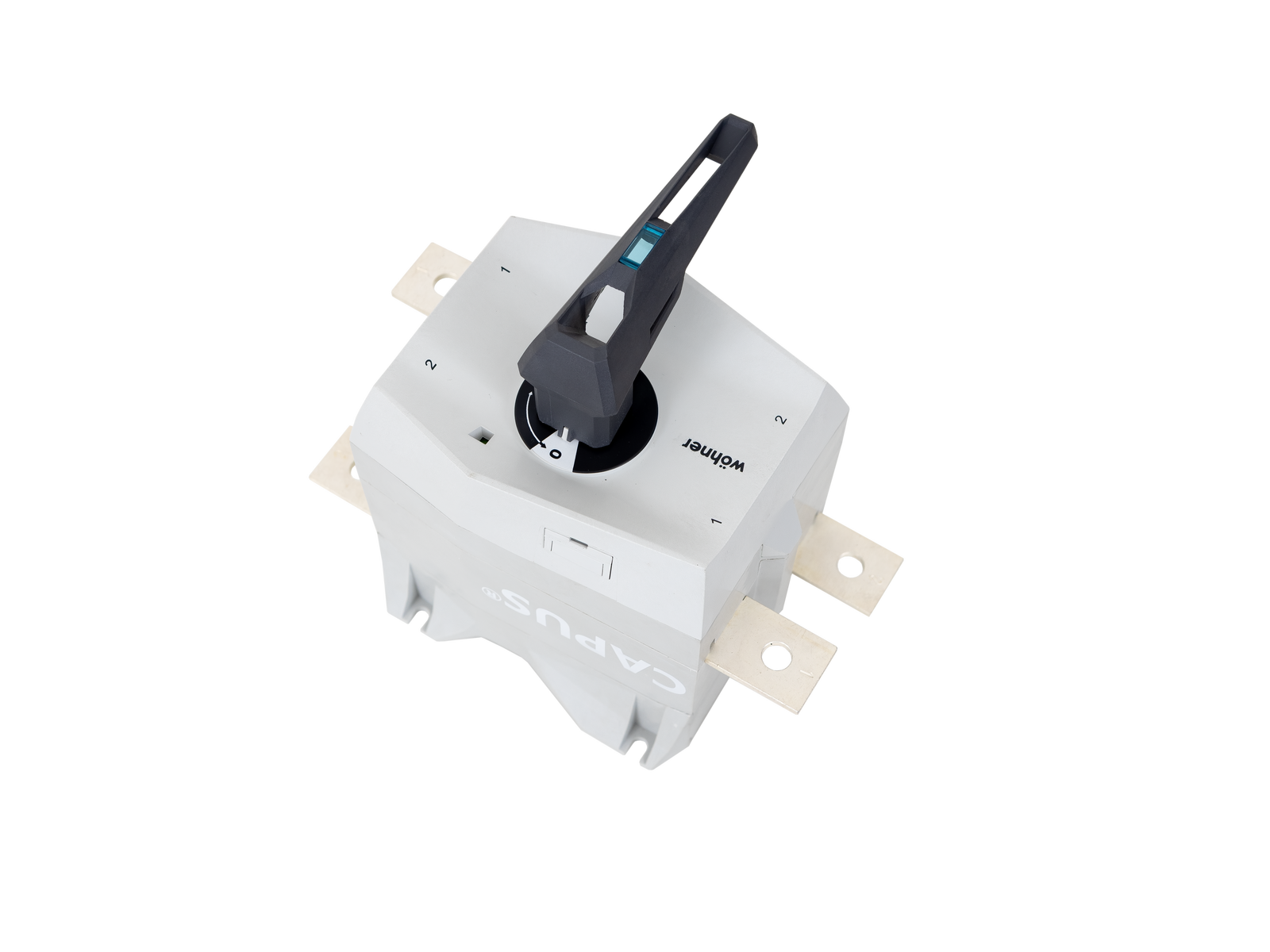

The picture may show a similar product.
Part No.: 23051000AD
CAPUS®Panel
switch-disconnector 2-pole
screw M10, without handle
400 A
UL version
for mounting plate
coming soon
System
Panel
| Product group | 14 |
| Subgroup | 07 |
| pack size | 1 |
| EAN | 4021267230517 |
| ECLASS 6.1 | 27371403 |
| ECLASS 7.1 | 27371403 |
| ETIM 4.0 | EC000216 |
| ETIM 5.0 | EC000216 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020
UL98B
Approvals
UL
type number: DC_SWITCH
| size: | 1 |
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 |
Electrical data
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 7,0 W.
(The power dissipation at full load would be 11,0 W.)
| Gebrauchskategorien siehe Datenblatt (unter Downloads) |
| Details UL | |
| Standards | |
| UL98B |
| Electrical data UL | |
| rated current (UL): | 400 A |
| rated voltage (UL) DC: | 1500 V |
| SCCR unprotected max.: | 15 kA |
| SCCR protected max.: | 40 kA |
| Mechanical data | |
| W x H x D: | 121 x 151 x 158 |
| weight: | 286,0 kg/100 |
| poles: | 2-pole |
| Mounting: | for mounting plate |
| vertical installation position: | Yes |
| horizontal installation position: | Yes |
all poles switched at the same time
