The picture may show a similar product.
Part No.: 23051 000AD

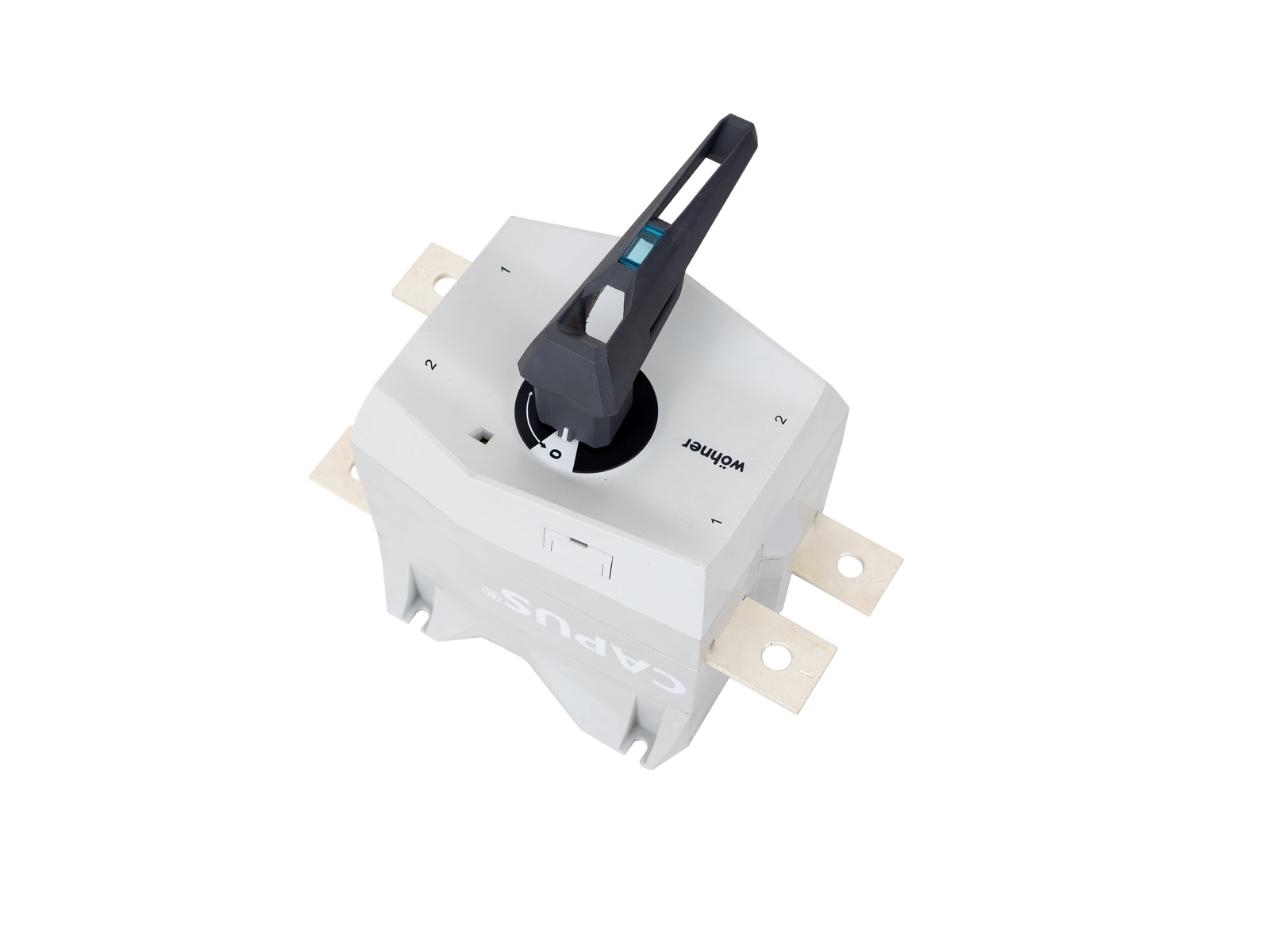

CAPUS Panel
switch-disconnector 2-pole
screw M10
400 A
UL version
for mounting plate
coming soon
System
Panel
| Product group | 14 |
| Subgroup | 07 |
| pack size | 1 |
| EAN | 4021267230517 |
| ECLASS 14.0 | 27371403 |
| ETIM 5.0 | EC000216 |
| ETIM 8.0 | EC000216 |
| ETIM 10.0 | EC000216 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020
UL98B
Approvals
UL , CCC
type number: CP-PV-1500/400
EAC Type: LTS
naming acc. to UL: open type switch, manual, for use in photovoltaic systems
| size: | 1 |
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 |
| Electrical data | |
| rated isolation voltage Ui DC: | 1500 V |
| rated making capacity: | 10 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 7,0 W.
(The power dissipation at full load would be 11,0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| min. permitted operation temperature | -25°C |
| max. permitted operation temperature | 50°C |
| Gebrauchskategorien siehe Datenblatt (unter Downloads) |
| Details UL | |
| Standards | |
| UL98B |
| Electrical data UL | |
| rated current (UL): | 400 A |
| rated voltage (UL) DC: | 1500 V |
| SCCR unprotected max.: | 10 kA |
| SCCR protected max.: | 40 kA |
| Mechanical data | |
| W x H x D: | 121 x 151 x 158 |
| weight: | 305,0 kg/100 |
| poles: | 2-pole |
| Mounting: | for mounting plate |
| degree of protection: | IP20 |
| vertical installation position: | Yes |
| horizontal installation position: | Yes |
| Terminal points | |
| screw connection | |
| M10 | |
| max. cross-section UL: | 1 1/4" x 1/4" |
| torque (UL): | 177 lb-in |
| Material properties | |
| halogen-free: | Yes |
all poles switched at the same time
|
device is supplied without handle |
|
23961
000AD

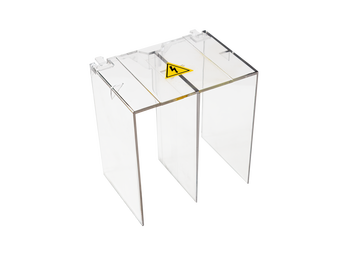

connection space cover, top / bottom attachable
for covering all terminals at one side of the switch, transparent
for 2P
for: Capus DC Switch
coming soon
More
23962
000A

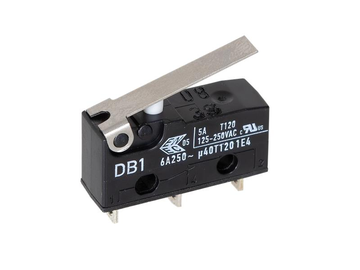

pilot switch
1 n/c + 1 n/o, plug connectors 6.3 x 0.8
for: Capus DC Switch
coming soon
More
23964
000AD
direct rotary handle, graphite grey
for: Capus DC Switch
NEW
More
33913
000
extension shaft, 490 mm long
for: QCS-NH00, QCS-NH1, QCS-160, QCS-320, CP-PV
More
33912
000
extension shaft, 290 mm long
for: QCS-NH00, QCS-NH1, QCS-160, QCS-320, CP-PV
More
23965
000A
rotary handle for door coupling drive, black
black, with handle
door interlock can be activated, for padlocks
for: Capus DC Switch
NEW
More
