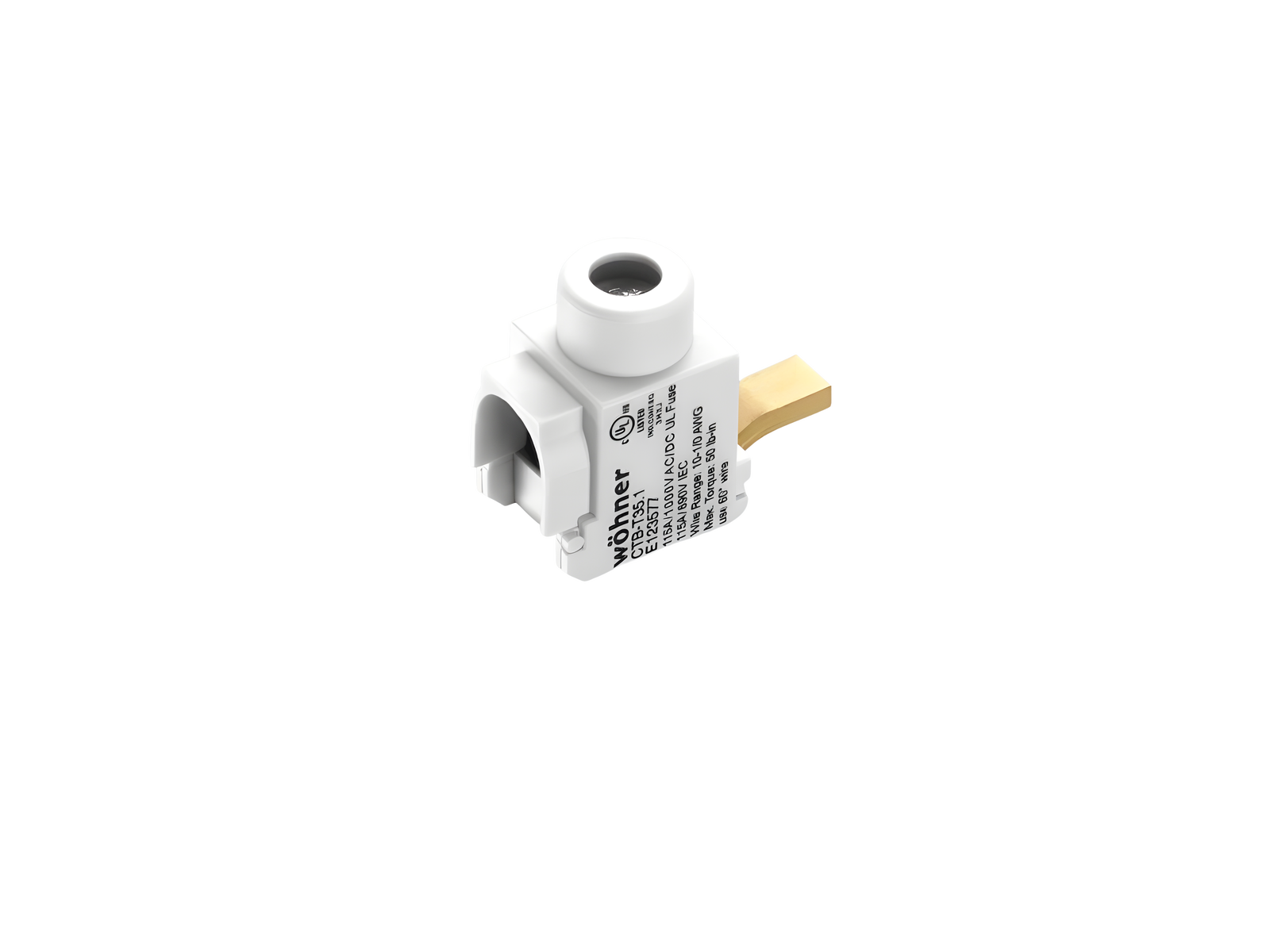

Part No.: 31039000
connection terminal, front connection
6 - 35 mm² / AWG 10 - 1/0
for 31548
| Product group | 07 |
| Subgroup | 26 |
| pack size | 10 |
| EAN | 4021267310394 |
| ECLASS 6.1 | 27371390 |
| ECLASS 7.1 | 27141146 |
| ETIM 4.0 | EC000001 |
| ETIM 5.0 | EC000001 |
Standards
IEC 61439-1:2020
UL 508
Approvals
UL
for UL feeder circuits >250V
type number: CTB-T35.1
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated current (IEC): | 115 A |
| rated voltage (IEC) AC: | 690 V |
| rated surge voltage Uimp : | 4 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0,0 W.
(The power dissipation at full load would be 0,0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) AC: | 690 V |
| max. permitted voltage (IEC) DC: | 1000 V |
| Details UL | |
| Standards | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated current (UL): | 115 A |
| rated voltage (UL) AC: | 1000 V |
| rated frequency (UL): | 50 / 60 Hz |
| rated voltage (UL) DC: | 1000 V |
| SCCR unprotected max.: | 10 kA |
| 3 cycles (without OPD) @ 600 V AC |
| SCCR: | 100 kA with fuse Class J 200 A |
| Mechanical data | |
| W x H x D: | 17 x 41 x 29 |
| weight: | 3,0 kg/100 |
| Terminal points | |
| min. cross-section: | 6 mm² |
| max. cross-section: | 50 mm² |
| Not suitable for aluminium cables ! | |
|
6 - 35mm² |
|
| Not suitable for aluminium cables ! | |
| The insulation performance of the article depends on the installation conditions. | |
|
Reference |
Recommended stripping of the insulation on the connection lead approx. 14mm |
| for UL feeder circuits >250V | |
