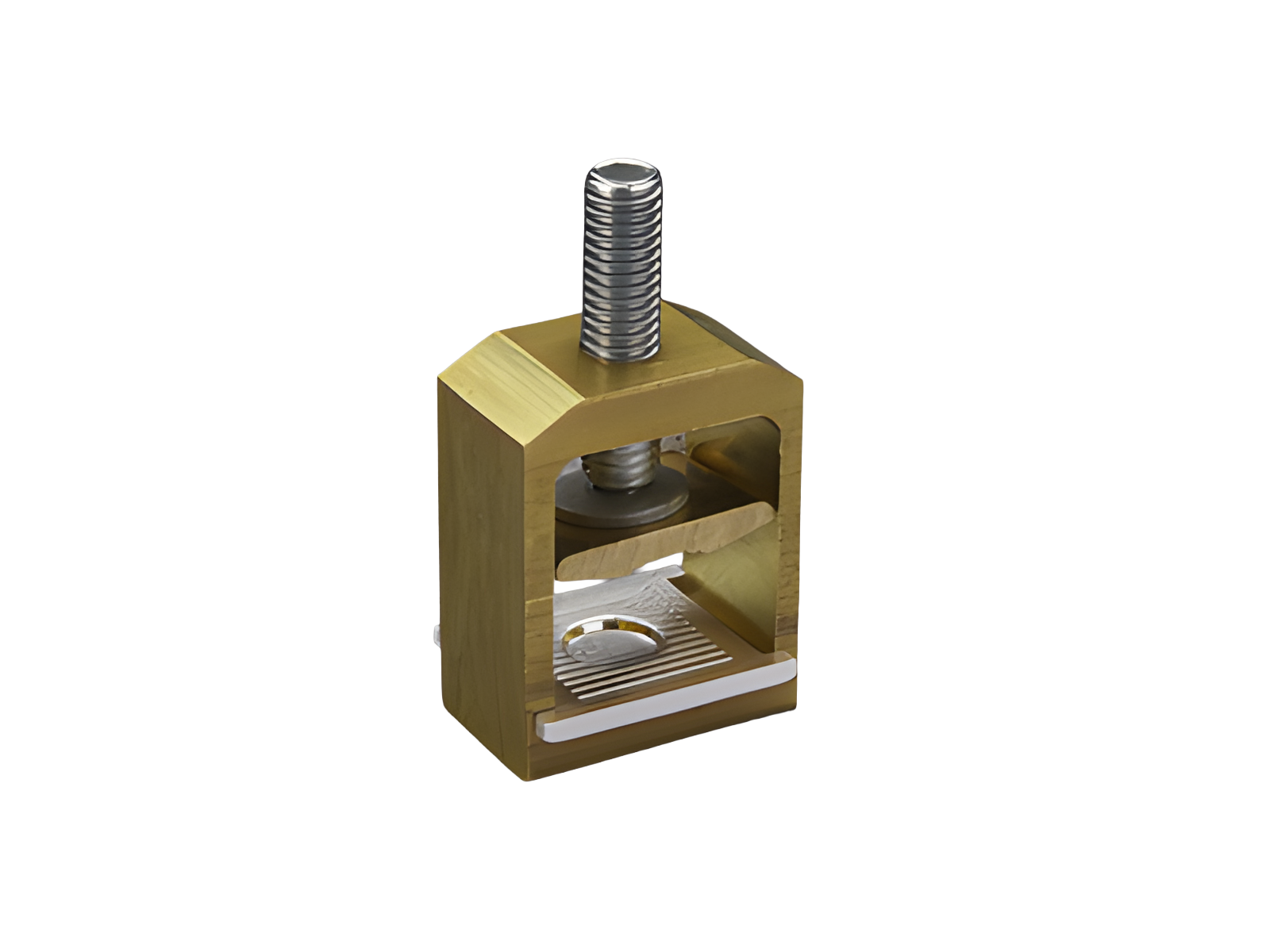

box terminal for Cu cables (33909)

The picture may show a similar product.

Description

Part No.: 33909000

box terminal for Cu cables

35 - 150 mm²

QCB-NH1, QCS-NH1, QCS-320

for QCB-NH1, QCS-NH1, QCS-320

System

60Classic

Product group	09
Subgroup	51

pack size	3
EAN	4021267339098

ECLASS 6.1	27142190
ECLASS 7.1	27142190
ETIM 4.0	EC002498
ETIM 5.0	EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0,0 W.

(The power dissipation at full load would be 0,0 W.)

Mechanical data
weight:	10,0 kg/100

Terminal points
min. cross-section:	35 mm²
max. cross-section:	185 mm²

Cu 70-185mm²f Cu 35-150mm²rm Cu 35-120mm²f+AE la Cu 15.5-24mm breit Klemmraum 24.5 x 21mm min. Klemmraumhöhe 3mm

Application notes


short-circuit withstandability:	determined by main product

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

03301000
QUADRON^®60Classic
NH fuse base 250 A
screw M10
size 1 / 3P
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
