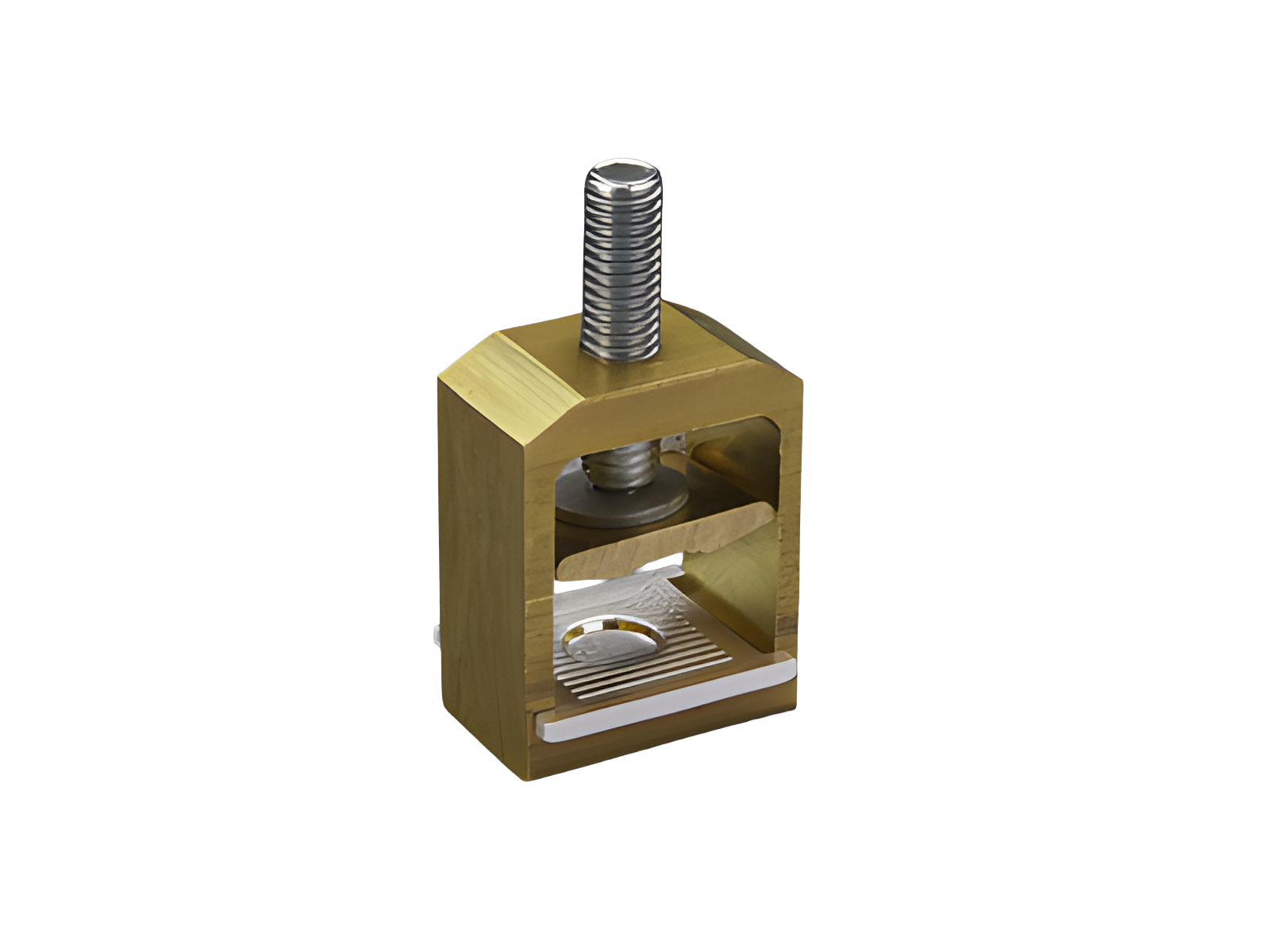

The picture may show a similar product.
Part No.: 33909 000
box terminal for Cu cables
35 - 150 mm²
QCB-NH1, QCS-NH1, QCS-320
for QCB-NH1, QCS-NH1, QCS-320
System
60Classic
| Product group | 09 |
| Subgroup | 51 |
| pack size | 3 |
| EAN | 4021267339098 |
| ECLASS 14.0 | 27142190 |
| ETIM 5.0 | EC002498 |
| ETIM 8.0 | EC002498 |
| ETIM 10.0 | EC002498 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
EAC Type: AC-A
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
Electrical data
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| Mechanical data | |
| weight: | 10.0 kg/100 |
| Terminal points | |
| min. cross-section: | 35 mm² |
| max. cross-section: | 185 mm² |
|
Cu 70-185mm²f |
|
| Material properties | |
| halogen-free: | Yes |
|
determined by main product |
|
