Mount for cover section (01317)

The picture may show a similar product.

Description

Part No.: 01317000

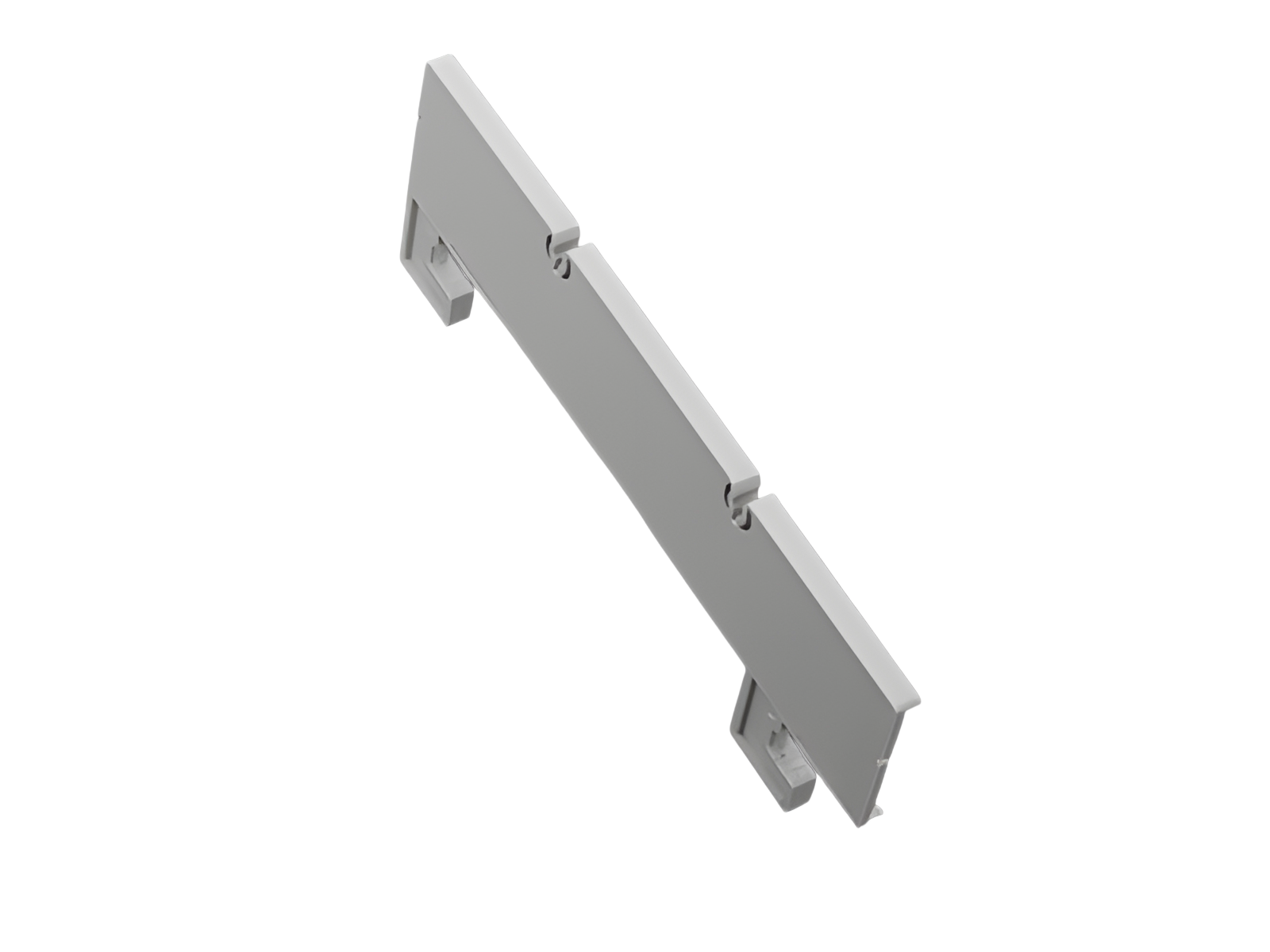

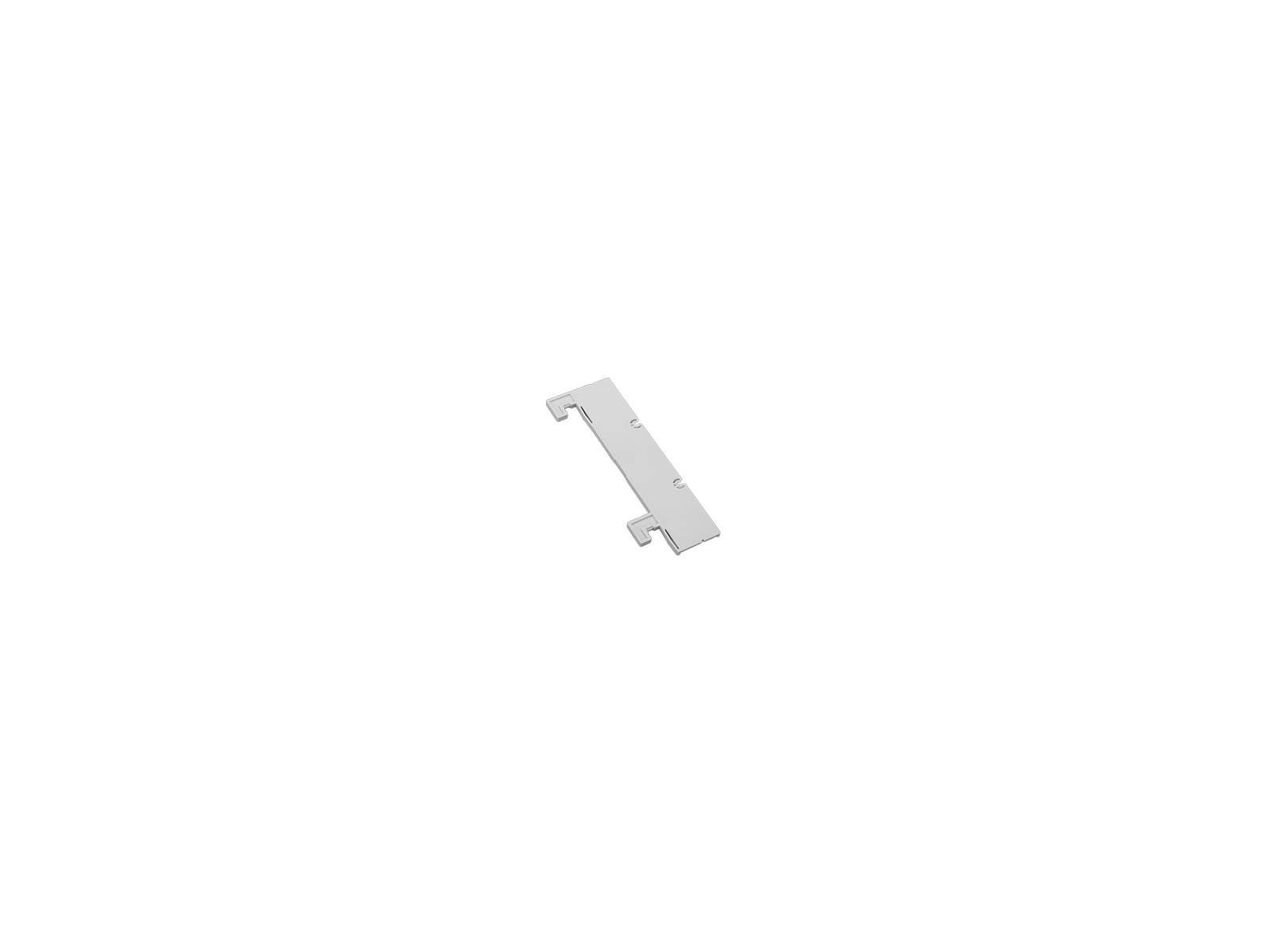

Mount for cover section

for 01314

for busbars 12 x 5, 10

System

30Compact 3P, 30Compact 5P

Product group 06
Subgroup 27
pack size 10
EAN 4021267013172
ECLASS 6.1 27370390
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 61439-1:2020

UL 508

Approvals

UL

for UL feeder circuits >250V

type number: C317-L

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Details UL
Standards
UL 508
for UL feeder circuits >250V
Mechanical data
W x H x D: 5 x 156 x 55
weight: 1,8 kg/100
for busbars: 12 x 5, 10

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit
for UL feeder circuits >250V

Links

Downloads

Accessories

01314000

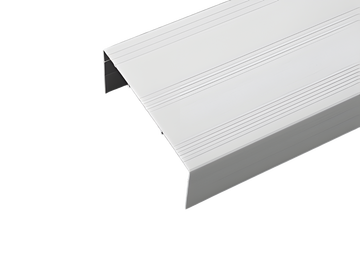

Cover profile, compact
0.70 m long
700 x 160
