The picture may show a similar product.
Part No.: 01317000

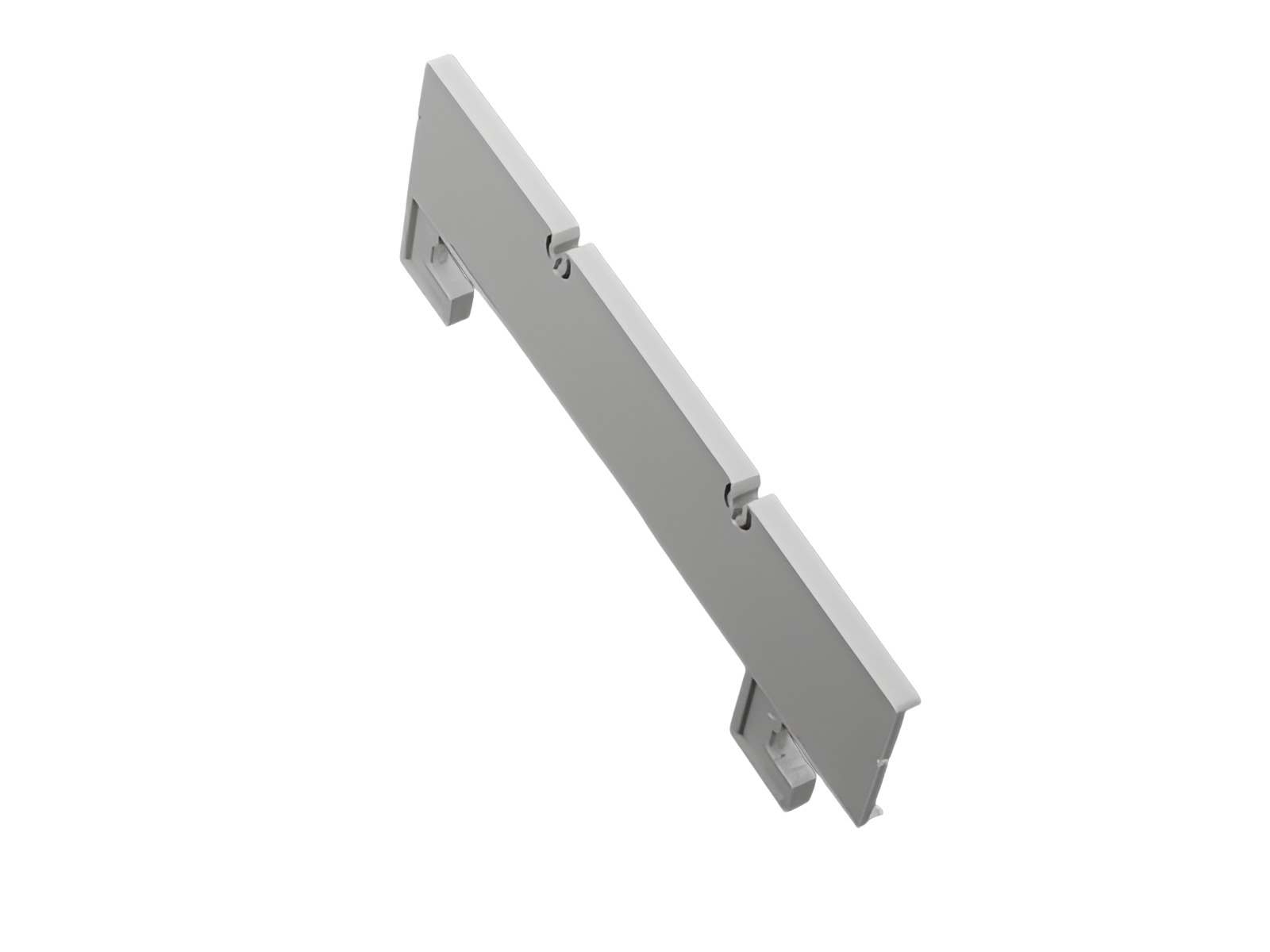

Mount for cover section
for 01314
for busbars 12 x 5, 10
System
30Compact 3P, 30Compact 5P
| Product group | 06 |
| Subgroup | 27 |
| pack size | 10 |
| EAN | 4021267013172 |
| ECLASS 6.1 | 27370390 |
| ECLASS 7.1 | 27142190 |
| ETIM 4.0 | EC002498 |
| ETIM 5.0 | EC002498 |
Standards
IEC 61439-1:2020
UL 508
Approvals
UL
for UL feeder circuits >250V
type number: C317-L
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Details UL | |
| Standards | |
| UL 508 |
| for UL feeder circuits >250V |
| Mechanical data | |
| W x H x D: | 5 x 156 x 55 |
| weight: | 1.8 kg/100 |
| for busbars: | 12 x 5, 10 |
| short-circuit withstandability: | not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit |
| for UL feeder circuits >250V | |
