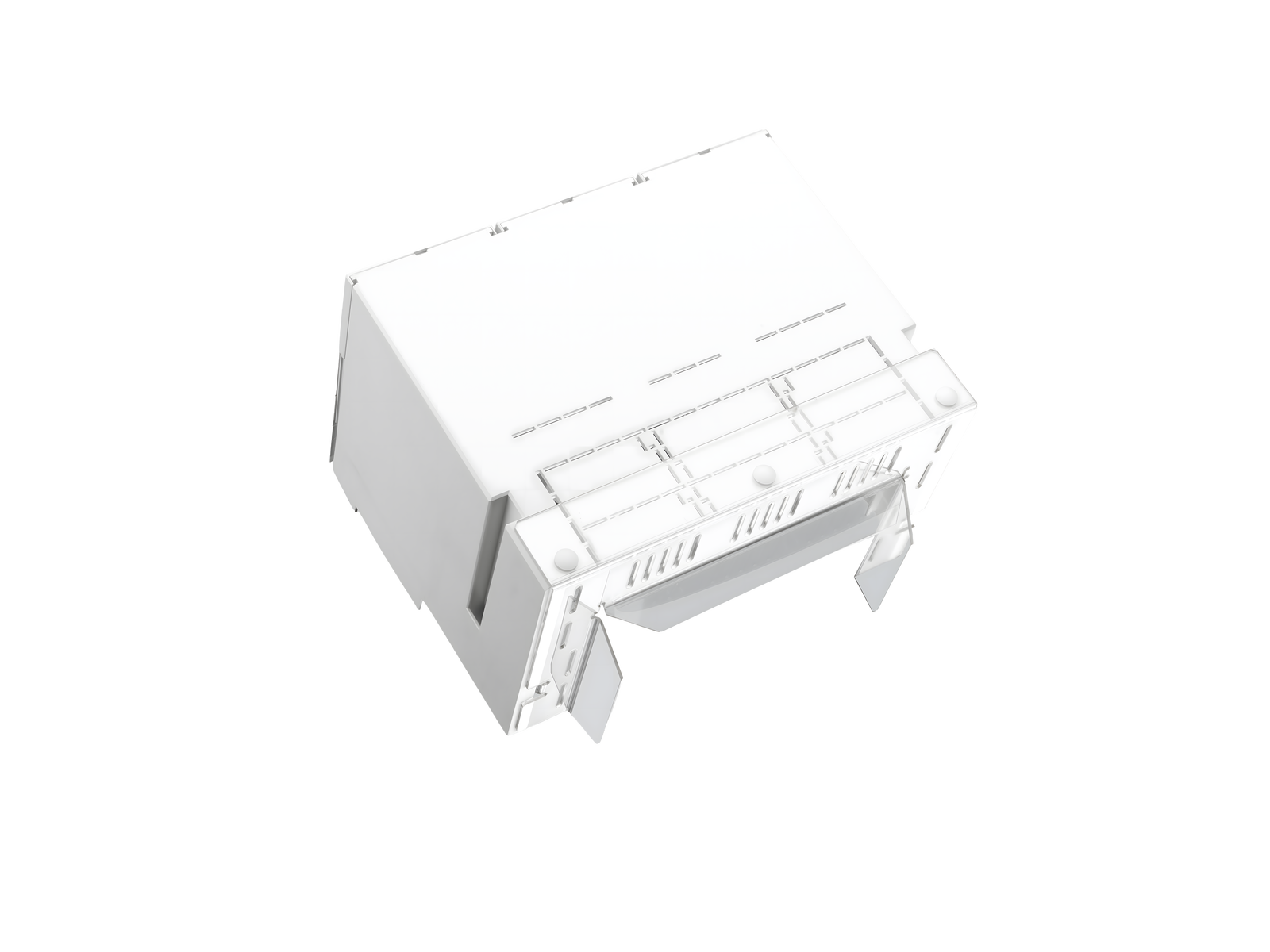

IP20 protection cover (front) (32705)

The picture may show a similar product.

Description

Part No.: 32705000A

IP20 protection cover (front)

incl. 3 top covers

300 mm wide

for Siemens 3VA25 (630 A, 800 A, 1000 A)

System

185Power

Product group 05
Subgroup 57
pack size 1
EAN 4021267327057
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 61439-1:2020

type number: C185-E

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Mechanical data
W x H x D: 297 x 232 x 194
weight: 128,0 kg/100
poles: 3-pole

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessories

32704000A
touch-safe protection shroud IP20 (rear installation)
for all adapters
More

Usage

32708000A
EQUES®185Power
busbar adapter 900 A
300 x 652, connection bottom, clamp connection
for: Siemens 3VA25 (630 A, 800 A, 1000 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32709000A
EQUES®185Power
busbar adapter 900 A
300 x 652, connection top / bottom, screw connection
for: Siemens 3VA25 (630 A, 800 A, 1000 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32707000A
EQUES®185Power
busbar adapter 900 A
300 x 652, connection top, clamp connection
for: Siemens 3VA25 (630 A, 800 A, 1000 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More
