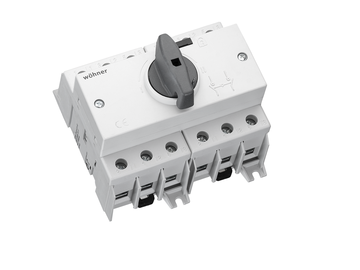

The picture may show a similar product.
Part No.: 33695000A
set connection space cover 3-pole
for SD2-3, SD2-4
| Product group | 14 |
| Subgroup | 51 |
| pack size | 1 |
| EAN | 4021267336950 |
| ECLASS 6.1 | 27371492 |
| ECLASS 7.1 | 27371492 |
| ETIM 4.0 | EC002498 |
| ETIM 5.0 | EC002498 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
UL 60947-4-1
Approvals
UL
type number: SD2-C-3
UL file: E506215, UL category (for USA): NLRV https://www.ul.com
UL file: E506215, UL category (for Canada): NLRV7 https://www.ul.com
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Details UL | |
| Standards | |
| UL 60947-4-1 |
| Electrical data UL | |
| for wires UL: | Cu 75°C |
| Mechanical data | |
| weight: | 2,2 kg/100 |
| poles: | 3-pole |
| Terminal points | |
| min. cross-section UL: | AWG 6 |
| max. cross-section UL: | AWG 1 |
| torque (UL): | 31 lb-in |
| for wires UL: | Cu 75°C |
|
Reference |
Two connection space covers are necessary for each the top and the bottom of a 3P+N switch: 3-pole and 1-pole. |
| short-circuit withstandability: | not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit |
