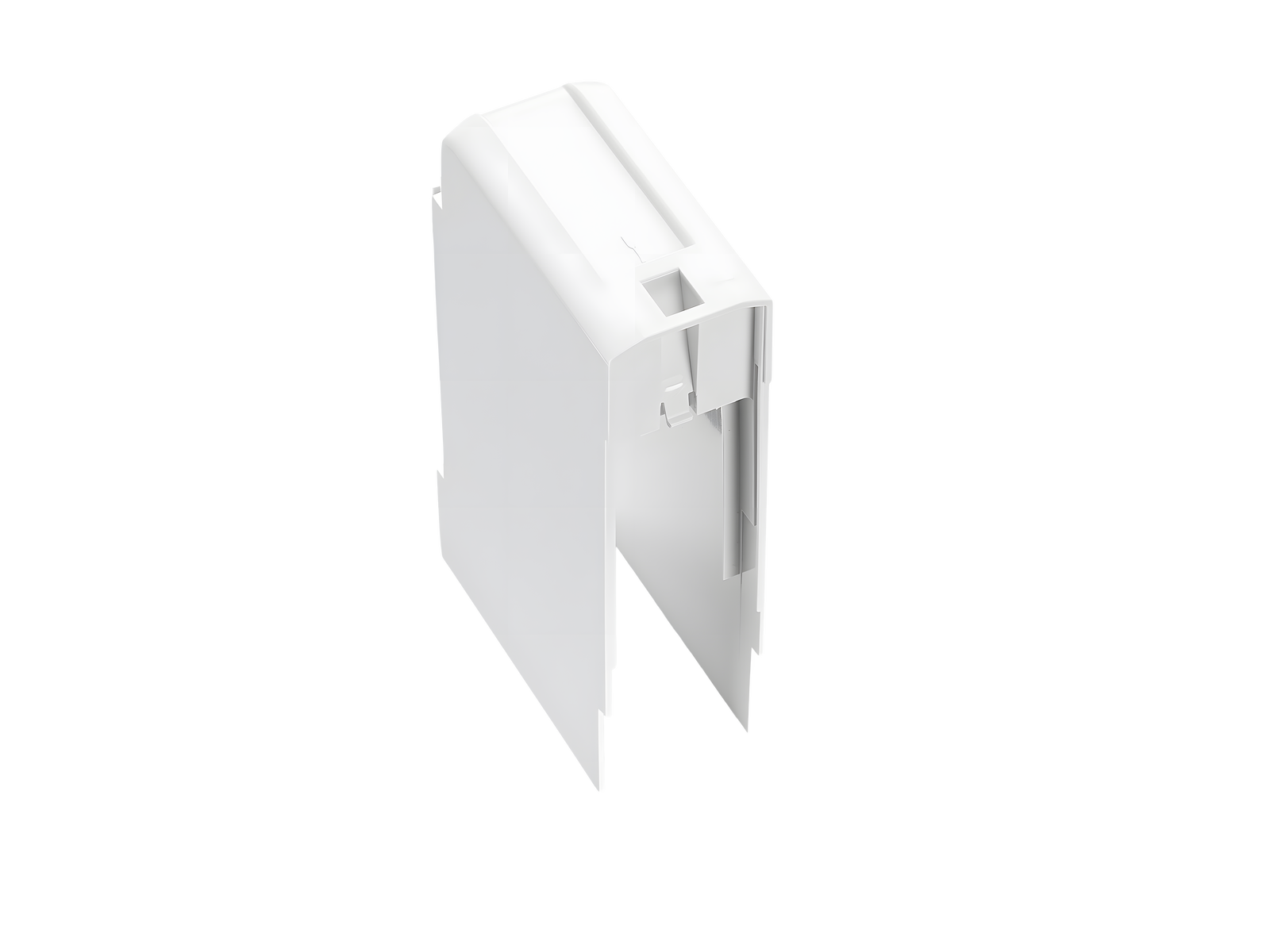

height compensation size 00 (33644)

The picture may show a similar product.

Description

Part No.: 33644000A

height compensation size 00

for alignment to the height of the in-line disconnector size 00

Ersatzteil

System

185Power

Product group 18
Subgroup 70
pack size 1
EAN 4021267336448
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Mechanical data
weight: 16,0 kg/100

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Usage

33615000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection bottom M8
screw connection
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

33614000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection bottom M8
CrossLink connection
double-breaking
for busbars: 30, 40, 60, 80, 100, 120 x 10
suitable for systems with CrossLink protection modules
More

33611000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection bottom M8
screw connection
double-breaking
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

33617000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection top M8
screw connection
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

33622000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection top M8
CrossLink connection, with fuse monitoring
for busbars: 30, 40, 60, 80, 100, 120 x 10
suitable for systems with CrossLink protection modules
More

33621000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection bottom M8
screw connection, with fuse monitoring
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

33623000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection top M8
screw connection, with fuse monitoring
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

33625000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection bottom M8
screw connection, with fuse monitoring
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

33627000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection top M8
tall version, outgoing terminals at the top, screw connection
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

33612000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection top M8
CrossLink connection
double-breaking
for busbars: 30, 40, 60, 80, 100, 120 x 10
suitable for systems with CrossLink protection modules
More

33626000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection top M8
CrossLink connection, with fuse monitoring
for busbars: 30, 40, 60, 80, 100, 120 x 10
suitable for systems with CrossLink protection modules
More

33613000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection top M8
screw connection
double-breaking
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

33620000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection bottom M8
CrossLink connection, with fuse monitoring
for busbars: 30, 40, 60, 80, 100, 120 x 10
suitable for systems with CrossLink protection modules
More

33610000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
flat version, connection bottom M8
CrossLink connection
double-breaking
for busbars: 30, 40, 60, 80, 100, 120 x 10
suitable for systems with CrossLink protection modules
More

33624000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection bottom M8
CrossLink connection, with fuse monitoring
for busbars: 30, 40, 60, 80, 100, 120 x 10
suitable for systems with CrossLink protection modules
More

33616000A
QUADRON®185Power Speed
NH in-line switch-disconnector-fuse size 00
high version, connection top M8
CrossLink connection
for busbars: 30, 40, 60, 80, 100, 120 x 10
suitable for systems with CrossLink protection modules
More
