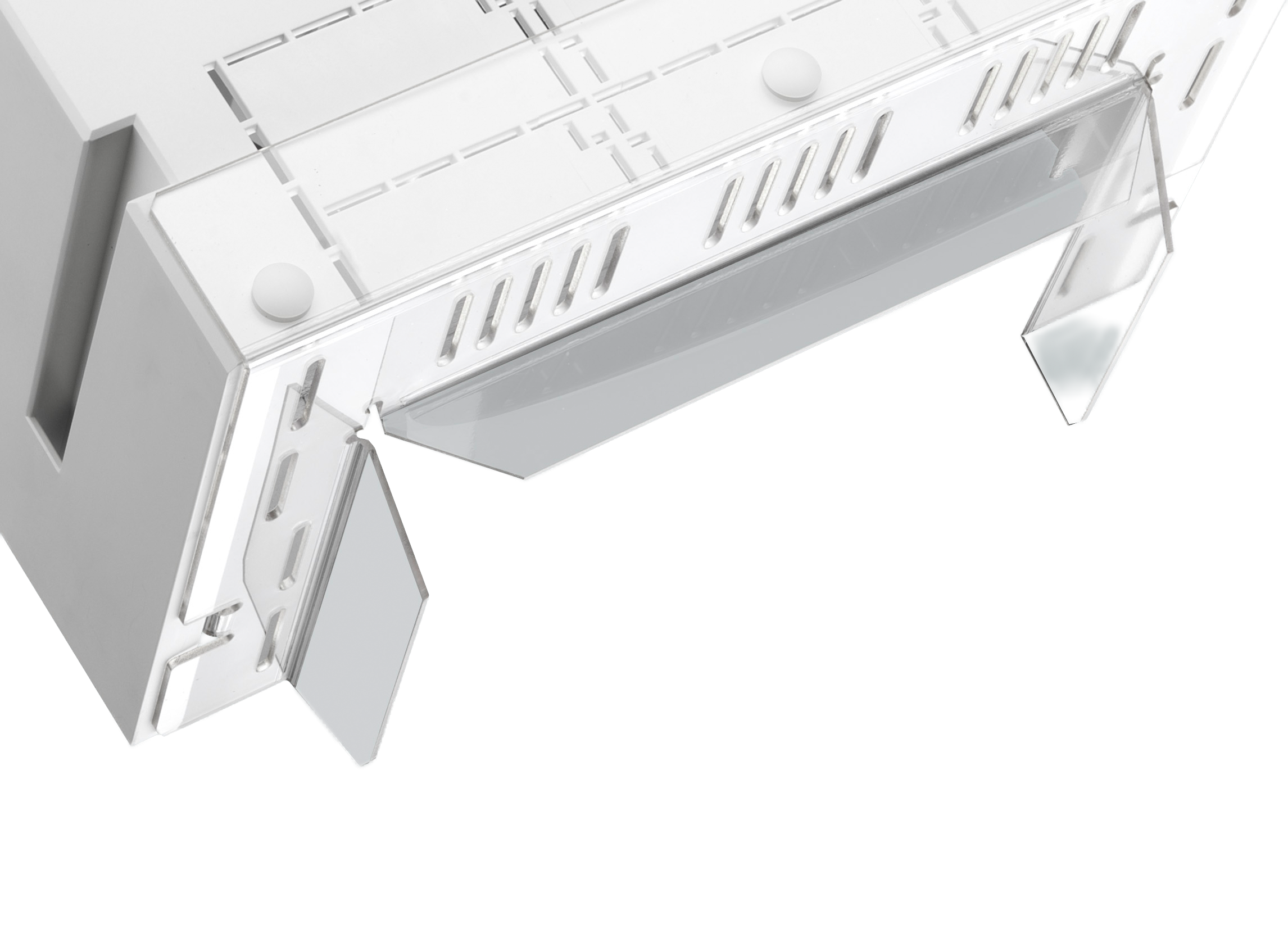

IP20 protection cover (front) (32700)

The picture may show a similar product.

Description

Part No.: 32700 000A

IP20 protection cover (front)

incl. 3 top covers

300 mm wide

for ABB Tmax T6, T7, Emax E2, Siemens 3VA27

System

185Power

Product group 05
Subgroup 57
pack size 1
EAN 4021267327002
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 61439-1:2020

type number: C185-E

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Mechanical data
W x H x D: 297 x 232 x 194
weight: 125,6 kg/100
poles: 3-pole

Application notes

not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Accessories

covers

32704 000A
touch-safe protection shroud IP20 (rear installation)
for all adapters
More

Usage

32765 000A
EQUES®185Power
busbar adapter 1250 A
300 x 652, connection top, clamp connection
for: ABB Tmax T7, XT7 (1250 A), Emax E1.2 (1250 A), Siemens 3VA27 (1250 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32766 000A
EQUES®185Power
busbar adapter 1000 A
300 x 652, connection top, clamp connection
for: ABB Tmax T6, XT6 (1000 A), T7, XT7 (1000 A), Emax E1.2 (1000 A), Siemens 3VA27 (1000 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32807 000A
EQUES®185Power
busbar adapter 1320 A
300 x 652, connection top, clamp connection
for: ABB Tmax T7, XT7 (1600 A), Emax E1.2 (1600 A), Siemens 3VA27 (1600 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32725 000A
EQUES®185Power
busbar adapter 1220 A
300 x 652, connection bottom, screw connection, changed phase
for: ABB Tmax T7, XT7 (1250 A), Emax E1.2 (1250 A), Siemens 3VA27 (1250 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32723 000A
EQUES®185Power
busbar adapter 1220 A
300 x 652, connection bottom, clamp connection, changed phase
for: ABB Tmax T7, XT7 (1250 A), Emax E1.2 (1250 A), Siemens 3VA27 (1250 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32729 000A
EQUES®185Power
busbar adapter 1000 A
300 x 652, connection bottom, clamp connection
for: ABB Tmax T6, XT6 (1000 A), T7, XT7 (1000 A), Emax E1.2 (1000 A), Siemens 3VA27 (1000 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32726 000A
EQUES®185Power
busbar adapter 1220 A
300 x 652, connection bottom, clamp connection
for: ABB Tmax T7, XT7 (1250 A), Emax E1.2 (1250 A), Siemens 3VA27 (1250 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32785 000A
EQUES®185Power
busbar adapter 1000 A
300 x 652, connection top / bottom, screw connection
for: ABB Tmax T6, XT6 (1000 A), T7, XT7 (1000 A), Emax E1.2 (1000 A), Siemens 3VA27 (1000 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32784 000A
EQUES®185Power
busbar adapter 1220 A
300 x 652, connection top / bottom, screw connection
for: ABB Tmax T7, XT7 (1250 A), Emax E1.2 (1250 A), Siemens 3VA27 (1250 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32808 000A
EQUES®185Power
busbar adapter 1320 A
300 x 652, connection top / bottom, screw connection
for: ABB Tmax T7, XT7 (1600 A), Emax E1.2 (1600 A), Siemens 3VA27 (1600 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32797 000A
EQUES®185Power
busbar adapter 1320 A
300 x 652, connection bottom, clamp connection
for: ABB Tmax T7, XT7 (1600 A), Emax E1.2 (1600 A), Siemens 3VA27 (1600 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32722 000A
EQUES®185Power
busbar adapter 1320 A
300 x 652, connection bottom, clamp connection, changed phase
for: ABB Tmax T7, XT7 (1600 A), Emax E1.2 (1600 A), Siemens 3VA27 (1600 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32786 000A
EQUES®185Power
busbar adapter 800 A
300 x 652, connection top / bottom, screw connection
for: ABB Tmax T6, XT6, T7, XT7 (800 A), Emax E1.2 (800 A), Siemens 3VA27 (800 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32724 000A
EQUES®185Power
busbar adapter 1320 A
300 x 652, connection bottom, screw connection, changed phase
for: ABB Tmax T7, XT7 (1600 A), Emax E1.2 (1600 A), Siemens 3VA27 (1600 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More

32767 000A
EQUES®185Power
busbar adapter 800 A
300 x 652, connection top, clamp connection
for: ABB Tmax T6, T7, XT6, XT7 (800 A), Emax E1.2 (800 A), Siemens 3VA27 (800 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

32730 000A
EQUES®185Power
busbar adapter 800 A
300 x 652, connection bottom, clamp connection
for: ABB Tmax T6, XT6, T7, XT7 (800 A), Emax E1.2 (800 A), Siemens 3VA27 (800 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More
